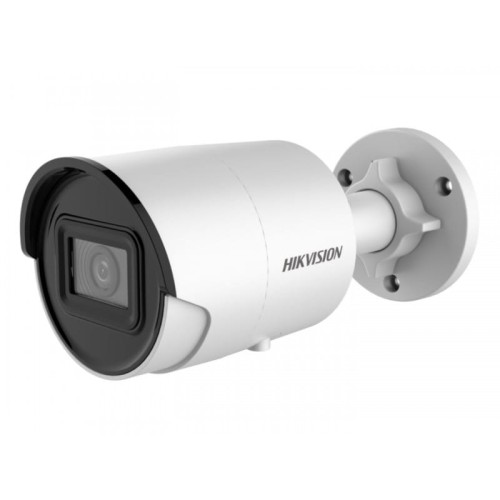

DS-2CD2086G2-IU(4mm)(C)
Description
DS-2CD2086G2-I(U) 8 MP AcuSense Powered-by-Darkfighter Fixed Mini Bullet Network Camera Empowered by deep learning algorithms, Hikvision AcuSense technology brings human and vehicle targets classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness. High quality imaging with 8 MP resolution Excellent low-light performance via powered-by-DarkFighter technology Efficient H.265+ compression technology Clear imaging against strong back light due to 120 dB true WDR technology Focus on human and vehicle targets classification based on deep learning Built-in microphone for real-time audio security(-U) Water and dust resistant (IP67) Specification Camera Image Sensor 1/1.8" Progressive Scan CMOS Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100,000 s Slow Shutter Yes P/N P/N Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0 t...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2CD2086G2-I(U)
8 MP AcuSense Powered-by-Darkfighter Fixed Mini Bullet Network Camera
Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.
High quality imaging with 8 MP resolution
Excellent low-light performance via
powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true
WDR technology
Focus on human and vehicle targets classification based on
deep learning
Built-in microphone for real-time audio security(-U)
Water and dust resistant (IP67)
Specification
Camera
Image Sensor 1/1.8" Progressive Scan CMOS
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0 to 360°, tilt: 0 to 90°, rotation: 0 to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Iris Type Fixed
Focal Length & FOV
2.8 mm, horizontal FOV 111°, vertical FOV 59°, diagonal FOV 131°
4 mm, horizontal FOV 87°, vertical FOV 47°, diagonal FOV 102°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 60°
Aperture F1.6
Lens Mount M12
DORI
DORI
2.8 mm: D: 89.2 m, O: 35.4 m, R: 17.8 m, I: 8.9 m
4 mm: D: 99.4 m, O: 39.4 m, R: 19.9 m, I: 9.9 m
6 mm: D: 140.0 m, O: 55.6 m, R: 28.0 m, I: 14.0 m
Illuminator
Supplement Light Type IR
IR Range Up to 40 m
IR Wavelength 850 nm
Smart Supplement Light Yes
Video
Max. Resolution 3840 x 2160
Main Stream
50 Hz: 25 fps (3840 x 2160, 3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 24 fps (3840 x 2160)
30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Environment Noise Filtering -U: Yes
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Audio Type -U: Mono sound
Network
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage
MicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto
network replenishment (ANR)
Together with high-end Hikvision memory card, memory card encryption and health
detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Day/Night Switch Day, Night, Auto, Schedule
Target Cropping Yes
Image Enhancement BLC, HLC, 3D DNR
Image Parameters Switch Yes
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance
adjustable by client software or web browser
SNR ≥ 52 dB
Interface
Built-in Microphone -U: Yes
On-Board Storage Built-in micro SD, up to 256 GB
Hardware Reset Yes
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Scene change detection
Deep Learning Function
Face Capture Yes
Perimeter Protection
Line crossing detection, intrusion detection, region entrance detection, region exiting
detection
Supports human and vehicle targets classification
General
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function
Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel
counter
Software Reset Yes
Linkage Method
Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger
recording, trigger capture
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Consumption and Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.13 A, max. 7.2 W
Power Interface Ø5.5 mm coaxial power plug
Camera Material Metal
Camera Dimension Ø70 mm x161.7 mm (Ø2.8" x 6.37")
Package Dimension 216 mm x 121 x 118 mm (8.5" x 4.8" x4.6")
Camera Weight Approx. 485 g (1.1 lb.)
With Package Weight Approx. 749 g (1.6 lb.)
Firmware Version V5.5.112
Approval
Protection IP67 (IEC 60529-2013)
EMC
CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011
+A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Available Model
DS-2CD2086G2-IU (2.8/4/6 mm)
DS-2CD2086G2-I (2.8/4/6 mm)
Dimension
Accessory
Optional
DS-1280ZJ-XS
Junction Box
