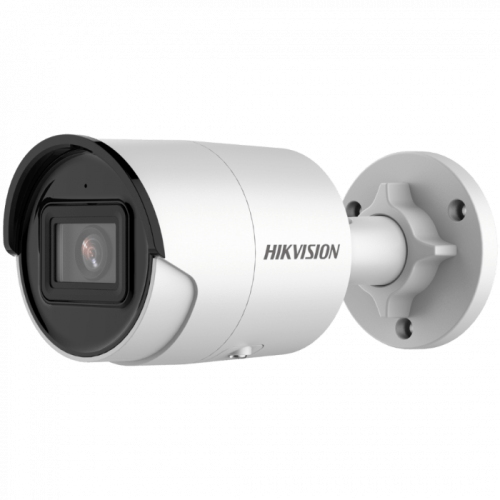

DS-2CD2083G2-I(U)
8 MP AcuSense Fixed Bullet Network Camera















Empowered by deep learning algorithms, Hikvision AcuSense
technology brings human and vehicle targets classification
alarms to front- and back-end devices. The system focuses
on human and vehicle targets, vastly improving alarm
efficiency and effectiveness.

 High quality imaging with 8 MP resolution
 Efficient H.265+ compression technology
 Clear imaging against strong backlight due to 120 dB WDR
technology
 Focusing on human and vehicle classification based on
deep learning
 -U: Built-in microphone for real-time audio security
 Water and dust resistant (IP67)






 Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
P/N P/N
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 107°, vertical FOV 57°, diagonal FOV 128°
4 mm, horizontal FOV 87°, vertical FOV 46°, diagonal FOV 105°
6 mm, horizontal FOV 54°, vertical FOV 29°, diagonal FOV 63°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI
2.8 mm: D: 88 m, O: 35 m, R: 17 m, I: 9 m
4 mm: D: 108 m, O: 43 m, R: 22 m, I: 11 m
6 mm: D: 177 m, O: 70 m, R: 35 m, I: 18 m
Illuminator
Supplement Light Type IR
Smart Supplement Light Yes
IR Wavelength 850 nm
IR Range Up to 40 m
Video
Max. Resolution 3840 x 2160
Main Stream
50 Hz: 20 fps (3840 x 2160)
25 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
60 Hz: 20 fps (3840 x 2160)
30 fps (3200 x 1800, 2688 x 1520, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Third Stream
50 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
60 Hz: 10 fps (1920 x 1080, 1280 x 720, 640 x 480, 640 x 360)
*Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
*Third stream is supported under certain settings.
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile



H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Bit Rate Control CBR/VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream and sub-stream
Audio
Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate
-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64
Kbps (AAC)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)
Audio Sampling Rate -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering -U: Yes
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
User/Host Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter,
Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE
and digest authentication for Open Network Video Interface
Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR)
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11
Plug-in free live view : Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Parameters Switch Yes
Image Settings
Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white
balance adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Image Enhancement BLC, HLC, 3D DNR
SNR ≥ 52 dB
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone -U: Yes
Hardware Reset Yes
Event
Basic Event
Motion detection (human and vehicle targets classification), video tampering alarm,
exception
Smart Event Line crossing detection, intrusion detection, human and vehicle targets classification
Face Detection Yes



General
Linkage Method
Upload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger
capture, send email
Camera Material
Aluminum alloy body
IR cover: plastic
Camera Dimension Ø70 mm x 161.7 mm (Ø2.8" x 6.4")
Package Dimension 216 mm x 121 mm x 118 mm (8.6" x 4.8" x 4.7")
Camera Weight Approx. 495 g (1.1 lb.)
With Package Weight Approx. 759 g (1.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Web Client Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak,
French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian,
Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-flicker, heartbeat, password reset via email, pixel counter
Firmware Version V5.5.113
Software Reset Yes
Power Consumption and Current
12 VDC, 0.5 A, max. 6 W
PoE (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, max. 7.2 W
Power Supply
12 VDC ± 25%, reverse polarity protection
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug
Approval
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN
61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
(ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN
60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part
1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)





 Available Model
DS-2CD2083G2-I (2.8/4/6 mm)
DS-2CD2083G2-IU (2.8/4/6 mm)
DS-2CD2083G2-IU (2.8 mm) (Black)


050511320210319

 Dimension



 Accessory
 Optional
DS-1280ZJ-XS
Junction Box
DS-1280ZJ-XS (Black)
Junction Box
