DS-2CD2045FWD-I(6mm)

Availability: 0

Price: €187.79 187.79

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 311303831

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

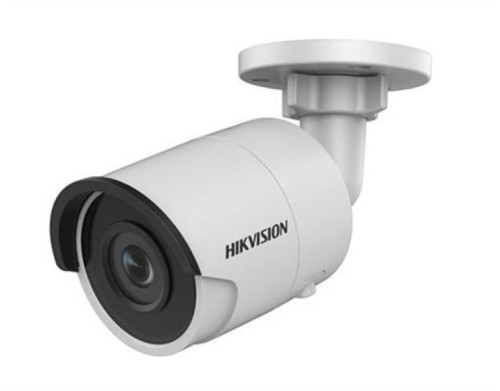

DS-2CD2045FWD-I
4 MP IR Fixed Bullet Network Camera
* BLC/3D DNR/ROI
* IP67
* Built-in microSD/SDHC/SDXC card slot, up
to 128 GB

* 1/2.5" Progressive Scan CMOS
* 2560 x 1440@30 fps
* 2.8, 4, 6, 8, 12 mm fixed lens
* Color: 0.009 lux @(F1.2, AGC ON), 0.016
lux @(F1.6, AGC ON), 0 lux with IR
* H.265+, H.265, H.264+, H.264
* 4 Behavior analyses
* 120dB WDR

Key Features

Specifications
Camera
Image Sensor 1/2.5" Progressive Scan CMOS
Min. Illumination Color: 0.009 lux @(F1.2, AGC ON), 0.016 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
WDR 120dB
3-Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length 2.8, 4, 6, 8, 12 mm
Aperture F1.6
Focus No
FOV
2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°
4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°
6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°
8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°
12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Yes
H.265 Type Main Profile
H.265+ Yes
Video Bit Rate 32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, object removal detection, unattended baggage
detection
Exception Detection Scene change detection
Face Detection Yes
Region of Interest Support 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1440
Main Stream
50Hz: 25 fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
60Hz: 30 fps (2560 x 1440, 2304 x 1296, 1920 x 1080)
Sub-Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)

Third Stream
50Hz: 25 fps (1280 x 720, 640 x 360, 352 x 288)
60Hz: 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client
software or web browser
Target Cropping No
SVC H.264 and H.265 encoding support
Day/Night Switch Day/Night/Auto/Schedule
Network
Network Storage Support microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, 802.1X, QoS, IPv6, Bonjour
General Function
One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask,
watermark, IP address filter
Firmware Version V5.5.5
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Video Output No
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Reset Button Yes
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, Φ 5.5 mm coaxial plug power
PoE(802.3af, class 3)
Power Consumption and
Current
12 VDC, 0.5 A, max. 5.5 W
PoE (802.3af, 36V to 57V), 0.2 A to 0.1 A, max. 7 W
Protection Level IP67
Material Metal
Dimensions
Camera: Φ70 x 155 mm (Φ2.8" x 6.1")
Package: 216 x 121 x 118 mm (8.5" x 4.8" x 4.7")
Weight Camera: 410 g (0.9 lb.)
Available Model:
DS-2CD2045FWD-I (2.8/4/6/8/12 mm)

155(6.1" )
81.1(3.2" )
Unit: mm(inch)

DS-1280ZJ-XS
Junction Box

Accessory
Dimensions
05050520180305
