DS-2CD2035FWD-I(4mm)

Availability: 0
Price: €190.54 190.54
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300725401

Description

    Available models:  DS-2CD2035FWD-I               DS -2CD2035FWD - I   3 MP Ultra -Low Light Outdoor Network Bullet Camera        • Up to 3 MP High Resolution  • Full 2048 x 1536 @30 fps  • 2.8 mm / 4 mm / 6 mm / 8 mm Fixed Lens  Options  • Ultra-Low Light, 0.008 lux, DarkFighter  Technology  • H.265+, H.265, H.264+, H.264  • 120dB Wide Dynamic Range  • 3D Digital Noise Reduction  • 12 VDC & PoE (802.3af)  • EXIR 2.0 with up to 100 ft (30 m) IR Range  • MicroSD Card Slot Supports up to 128 GB  • IP67 Protection                                               Dimensions          Hikvision’s DS-2CD2035FWD-I provides  important new technology for any security  application. The H.265+ codec assures savings in  bandwidth and storage. The DarkFighter  Ultra -Low Light technology allows for use in the  most demanding lighting conditions. EXIR ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:



Available models:
DS-2CD2035FWD-I






DS -2CD2035FWD - I

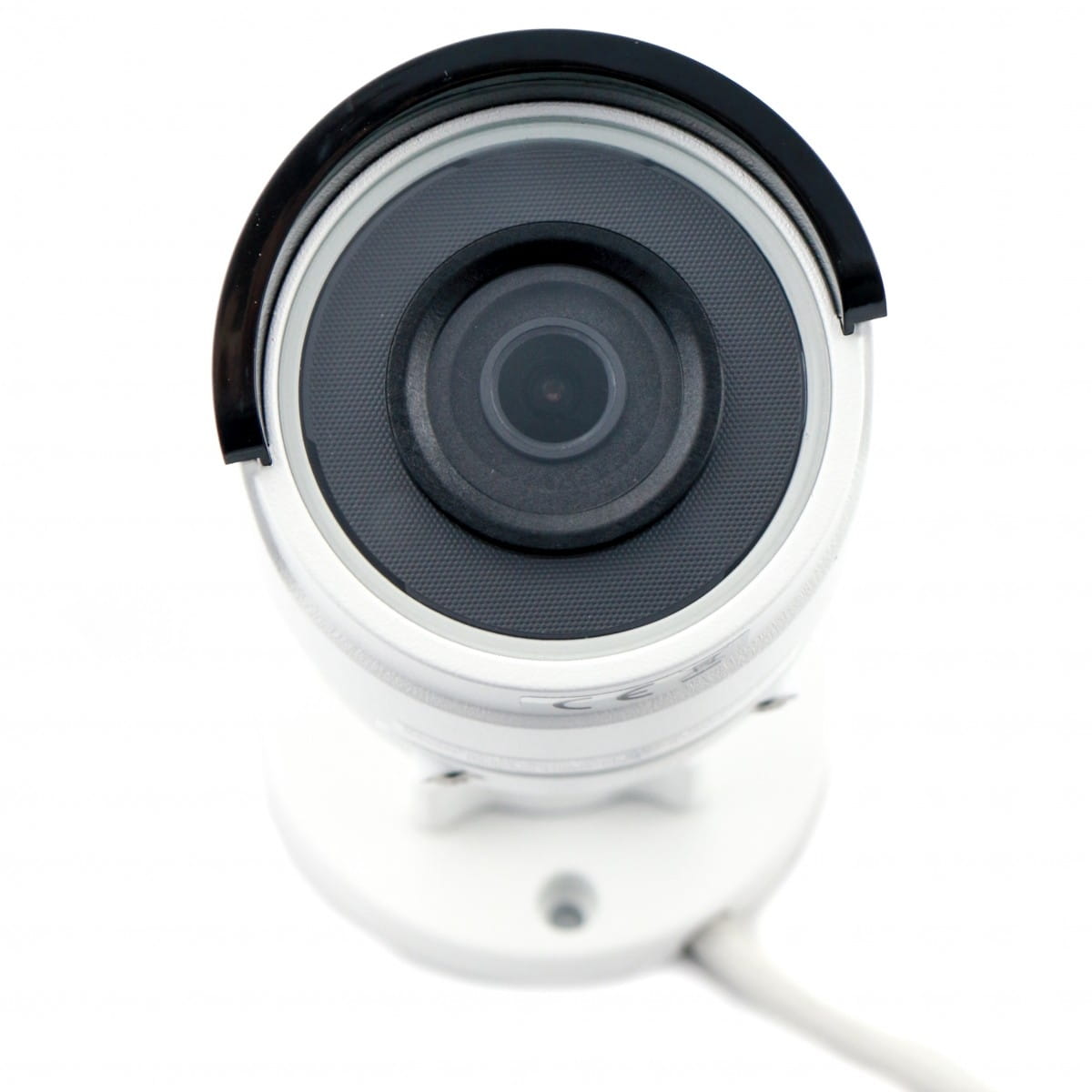

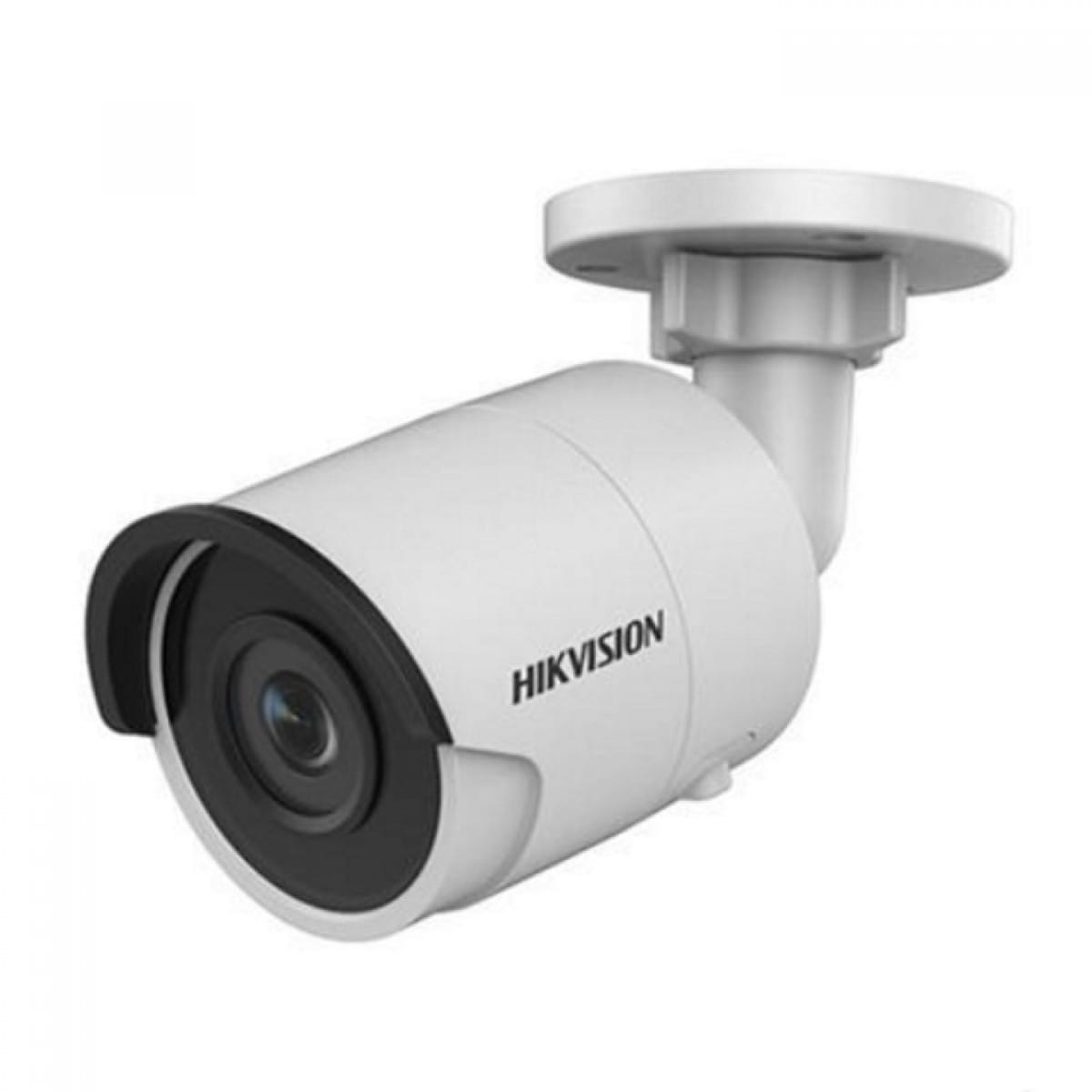

3 MP Ultra -Low Light Outdoor Network Bullet Camera



• Up to 3 MP High Resolution
• Full 2048 x 1536 @30 fps
• 2.8 mm / 4 mm / 6 mm / 8 mm Fixed Lens
Options
• Ultra-Low Light, 0.008 lux, DarkFighter
Technology
• H.265+, H.265, H.264+, H.264
• 120dB Wide Dynamic Range
• 3D Digital Noise Reduction
• 12 VDC & PoE (802.3af)
• EXIR 2.0 with up to 100 ft (30 m) IR Range
• MicroSD Card Slot Supports up to 128 GB
• IP67 Protection






















Dimensions




Hikvision’s DS-2CD2035FWD-I provides
important new technology for any security
application. The H.265+ codec assures savings in
bandwidth and storage. The DarkFighter
Ultra -Low Light technology allows for use in the
most demanding lighting conditions. EXIR 2.0
technology enhances night time performance.




Hikvision USA Inc., 18639 Railroad Street, City of Industry, CA 91748, USA • Hikvision Canada, 4848 rue Levy, St -Laurent, Quebec, Canada, H4R 2 P1
Tel: +1-909 -895 -0400 • Toll Free in USA: +1 -866 -200 -6690 • E -Mail: sales.usa@hikvision.com • www.hikvision.com
© 2017 Hikvision USA Inc. • All Rights Reserved • Specifications are subject to change without notice. 0510 17 NA 


Specifications


Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Minimum Illumination Color: 0.008 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Time 1/3 s to 1/100,000 s
Slow Shutter Supported
Lens 98° (2.8 mm), 78.7° (4 mm), 48° (6 mm), 37° (8 mm)
Lens Mount M12
Iris F1.6
3-Axis Adjustment Pan: 0° to 360°; Tilt: 0° to 75°; Rotate: 0° to 360°
Day and Night IR Cut Filter
DNR 3D DNR
Wide Dynamic Range 120 dB
Compression Standard
Video Compression Main stream: H.265+ / H.265 / H.264+ / H.264; sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG; third stream:
H.265+ / H.265 / H.264+ / H.264
H.264 Type Main profile / high profile
H.264+ Support
H.265 Type Main profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Maximum Resolution 2048 x 1536
Main Stream 30 fps (2048 x 1536,1920 x 1080, 1280 x 720)
Sub Stream 30 fps (640 x 360, 352 x 240)
Third Stream 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC / 3D DNR
Image Settings Rotate mode supported. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client
software
ROI (Region of Interest) Separate support for one fixed region in main and sub streams
Day / Night Switch Auto / scheduled
Network
Network Storage Support for microSD / SDHC / SDXC card (128G), local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger Motion Detection, tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
General
Operating Conditions -40° F to 140° F (-40° C to 60° C), Humidity 90% or less (non-condensing)
Power Supply 12 VDC ± 30%
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD / SDHC / SDXC slot, up to 128 GB
Smart Feature Set
Behavior Analysis Line crossing detection, intrusion detection, unattended baggage detection, object removal detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual line supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual region supported
Object Removal Detection Objects removed from a pre-defined region, such as exhibits on display
Unattended Baggage Detection Objects left over in the pre-defined region such as baggage, purses, and dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage
General
Operating Conditions -22° F to 140° F (-30° C to 60° C), Humidity 95% or less (non-condensing)
Power 12 VDC ± 25%, 5W; PoE (802.3af, class 3), 7 W
IR Range Up to 100 ft (30 m)
Protection Level IP67
Dimensions Camera: Ø 2.76" x 6.1" (Ø 70 x 155.03 mm); Package: 8.5" x 4.76" x 4.65" (216 mm x 121 mm x 118 mm)
Weight 0.9 lbs (410 g)
Accessories


DS-2CD2035FWD-I

CBXS
Conduit Base
