DS-2CD2025FWD-I(6mm)

Availability: 0

Price: €177.79 177.79

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 300726319

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

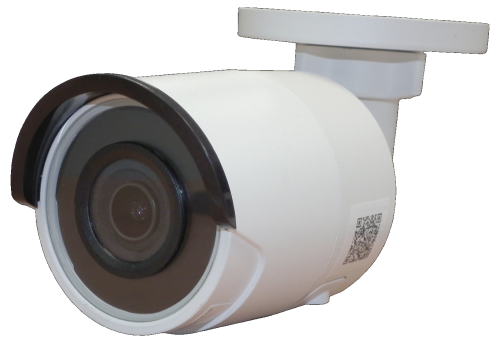

DS-2CD2025FWD-I
2 MP Ultra-Low Light Network Bullet Camera
Key Features
 Up to 2 megapixel high resolution
 Max. 1920 x 1080 @30fps
 2.8 mm/4 mm/6 mm/8 mm/12 mm fixed
lens, optional
 Ultra-low light
 H.265, H.265+, H.264+, H.264
 120dB Wide Dynamic Range
 3D Digital Noise Reduction
 12 VDC & PoE (802.3af)
 IR range: up to 30 m
 Support on-board storage, up to 128 GB
 IP67

Specification
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005 lux @(F1.2, AGC ON), 0 lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Support
Lens
2.8 mm, horizontal field of view: 108°
4 mm, horizontal field of view: 86.4°
6 mm, horizontal field of view: 52°
8 mm, horizontal field of view: 40°
12 mm, horizontal field of view: 25°
Lens Mount M12
Iris F1.6
Day &Night IR cut filter
DNR 3D DNR
Wide Dynamic Range 120dB
3-Axis Adjustment (bracket) Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Compression Standard
Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
H.264 Type Main Profile/High Profile
H.264+ Support
H.265 Type Main Profile
H.265+ Support
Video Bit Rate 32 Kbps to 16 Mbps
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280x720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280x720)
Sub Stream
50Hz: 25fps (640 x 360, 352 x 288)
60Hz: 30fps (640 x 360, 352 x 240)
Third Stream
50Hz: 25fps (1920 x 1080, 1280x720, 640 x 360, 352 x 288)
60Hz: 30fps (1920 x 1080, 1280x720, 640 x 360, 352 x 240)
Image Enhancement BLC/3D DNR
Image Settings
Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web
browser and client software
ROI (Region of Interest) Support 1 fixed region for mainstream and sub stream separately
Day/Night Switch Auto/Scheduled
Network
Network Storage Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR
Alarm Trigger
Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login,
HDD full, HDD error
Protocols
TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP,
SMTP, SNMP, IGMP, 802.1X, QoS, IPv6
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

155.03(6.10″ )
81.09(3.19″ )
Φ
5
5(
2
.
1
7″

)
Φ
7
0(
2
.
7
6″

)

Unit: mm

General Function
One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark,
IP Address Filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Smart Feature-set
Behavior Analysis
Line crossing detection, intrusion detection, unattended baggage detection, object removal
detection
Line Crossing Detection Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported
Intrusion Detection Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported
Object Removal Detection Objects removed from the pre-defined region, such as the exhibits on display.
Unattended Baggage Detection Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Face Detection Human face appears in the image can be detected and trigger linkage method
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power
12 VDC ± 25%, 5W
PoE(802.3af, class 3), 6.5W
IR Range Up to 30 m
Protection Level IP67
Dimensions
Camera: Φ70 x 155.03 mm (Φ2.76″ x 6.1″)
Package: 216 x 121 x 118 mm (8.5″ x 4.76″ x 4.65″)
Weight Camera: 410 g (0.9 lb.)
Available Models
DS-2CD2025FWD-I

Dimensions

DS-1280ZJ-XS
Junction Box

Accessories
05040420170122
