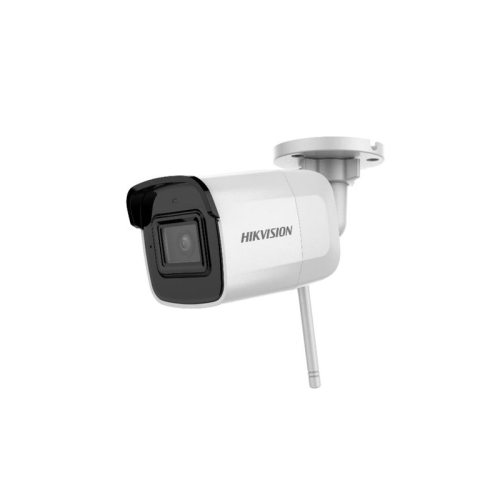

DS-2CD2021G1-IDW1(2.8mm)

DS-2CD2021G1-IDW1  2 MP IR Fixed Network Bullet Camera   * 1/2.8" Progressive Scan CMOS  * 1920 x 1080 @30fps  * 2.8/4 mm fixed lens  * Wi-Fi Connection  * H.265+, H.265, H.264+, H.264  * 3D Digital Noise Reduction  * Audio I/O: 1 built-in mic, mono sound  * IP66      Key Features          Specifications  Camera  Image Sensor 1/2.8" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Auto-Iris No  Day & Night IR Cut Filter  Digital Noise Reduction 3D DNR  Wide Dynamic Range DWDR  Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°  Lens  Focal Length 2.8/4 mm  Aperture F2.0  Focus No  FOV  2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°  4 mm, horizontal field of view: 86°, vertical FOV: 46°, diagonal FOV: 102°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub-stream: H.265/H.264/MJPEG  H.264 Type Baseline Profile/Main Profile/High Profile  H.264+ Main stream supports  H.265 Type ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD2021G1-IDW1
2 MP IR Fixed Network Bullet Camera
* 1/2.8" Progressive Scan CMOS
* 1920 x 1080 @30fps
* 2.8/4 mm fixed lens
* Wi-Fi Connection
* H.265+, H.265, H.264+, H.264
* 3D Digital Noise Reduction
* Audio I/O: 1 built-in mic, mono sound
* IP66


Key Features




Specifications
Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2; AGC ON), 0.028 Lux @(F2.0; AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day & Night IR Cut Filter
Digital Noise Reduction 3D DNR
Wide Dynamic Range DWDR
Axis Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
Lens
Focal Length 2.8/4 mm
Aperture F2.0
Focus No
FOV
2.8 mm, horizontal FOV: 114°, vertical FOV: 62°, diagonal FOV: 135°
4 mm, horizontal field of view: 86°, vertical FOV: 46°, diagonal FOV: 102°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Video Bit Rate 32 Kbps to 8Mbps
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Smart Feature-set
Region of Interest Support 1 fixed region for main stream
Max. Resolution 1920 x 1080
Main Stream
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub Stream
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC/3D DNR
Image Settings Saturation, brightness, contrast and sharpness are adjustable via client software and web browser
Day/Night Switch Auto/Scheduled/Day/Night
Network





Alarm Trigger
Motion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD
error, HDD full
Network Storage Support built-in microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP,
IGMP, QoS, IPv6, UDP, Bonjour
General Function
One-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version V5.5.60
API ONVIF(PROFILE S,PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
Audio I/O 1 Built-in mic, mono sound
Video Out No
Alarm I/O No
Reset Button Yes
Wi-Fi
Wireless Standards IEEE802.11b, 802.11g, 802.11n
Frequency Range 2.412 GHz - 2.472 GHz
Channel Bandwidth 20/40MHz
Protocols
802.11b: CCK, QPSK, BPSK,
802.11g/n: OFDM
Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transfer Rates 11b/g: 54Mbps, 11n: up to 150Mbps
Wireless Range
Up to 50 m
(The performance varies based on actual environment)
Power Consumption <20dBm
General
Operating Conditions -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, Φ 5.5 mm coaxial plug power
Power Consumption and
Current
12 VDC, 0.4 A, Max: 4.8W
Protection Level IP66
Material Front cover: plastic, camera body: metal
Dimensions
Camera: 69.7 mm x 67.9 mm x 171.4 mm (2.7" x 2.7" x 6.7")
With package: 216 mm x 121 mm x 118 mm (8.5" x 4.8" x 4.6")
Weight
Camera: 372g (0.8lb)
With package: 659g(1.5lb)
Available Model:
DS-2CD2021G1-IDW1(2.8/4 mm)






Unit: mm(inch)
69.7(2.7")
67
.9
(2
.7
")
171.4(6.7")
98.5(3.9")







DS-1280ZJ-S
Junction Box

Accessory
Dimensions
05056020180425
05056020180518
