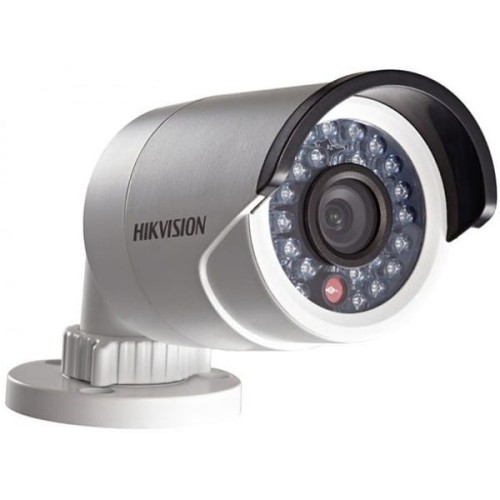

DS-2CD2020F-I(4mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2020-I      Key Features   Up to 2 megapixel (1920 x 1080) resolution   Standard video compression with high compression ratio   Progressive scan CMOS, capture motion video without incised margin   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range   IR cut filter with auto switch   PoE (Power over Ethernet)   Ingress Protection level: IP66   Electronic shutter for different surveillance environments   Other functions: alarm, reset button, mirror, etc.  Specification   Model  Parameter  DS-2CD2020-I  2 Megapixel CMOS ICR Infrared Network Bullet Camera  Camera  Image Sensor 1/3" Progressive Scan CMOS  Min. Illumination 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR  Shutter Speed 1/25 s to 1/100,000 s  Lens  4mm@ F2.0, Angle of view: 79°  (6mm, 12mm optional)  Lens Mount M12        ©2006 – 2014 by HI...

Warning! Product withdrawn from production!

Replacement product: DS-2CD2020F-I(4mm) C

Replacement product code: 300723930

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2020-I


Key Features
 Up to 2 megapixel (1920 x 1080) resolution
 Standard video compression with high compression ratio
 Progressive scan CMOS, capture motion video without incised margin
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 Ingress Protection level: IP66
 Electronic shutter for different surveillance environments
 Other functions: alarm, reset button, mirror, etc.
Specification
Model
Parameter
DS-2CD2020-I
2 Megapixel CMOS ICR Infrared Network Bullet Camera
Camera
Image Sensor 1/3" Progressive Scan CMOS
Min. Illumination 0.07Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter Speed 1/25 s to 1/100,000 s
Lens
4mm@ F2.0, Angle of view: 79°
(6mm, 12mm optional)
Lens Mount M12



©2006 – 2014 by HIKVISION. All rights reserved.
2
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range Digital WDR
Compression Standard
Video Compression H.264/ MJPEG
Video Bit Rate 32 Kbps – 16 Mbps
Dual Stream Yes
Max. Resolution 1920 x 1080
Frame Rate
50Hz: 25fps(1920 x 1080), 25fps (1280 x 960), 25fps (1280 x 720)
60Hz: 30fps(1920 x 1080), 30fps (1280 x 960), 30fps (1280 x 720)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Yes, up to 4 configurable areas
Network
Network Storage NAS
Alarm Trigger Motion detection, Dynamic analysis, Tampering alarm
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
Security User Authentication, Watermark
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Reset Button Yes
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply 12 V DC ± 10% , PoE (802.3af)
Power Consumption Max. 7 W
Ingress Protection
level
IP66
IR Range 30 meters
Dimensions 60.4x76.9x139.28 mm (2.4” x 3.0” x 5.5”)
Weight 500g (1.1 lbs)



©2006 – 2014 by HIKVISION. All rights reserved.
3
Order Models
DS-2CD2020-I
Dimensions
Unit: mm
