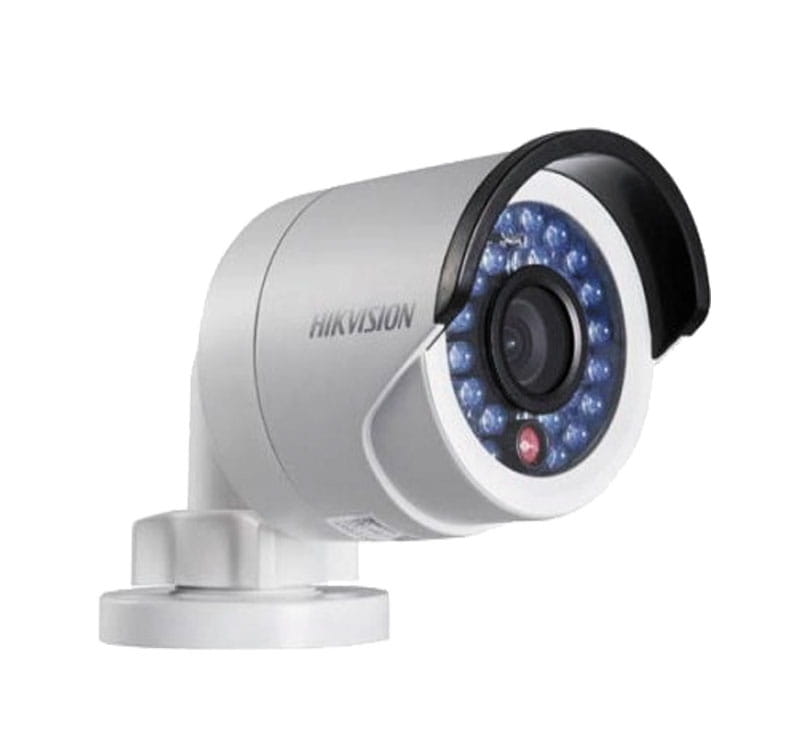

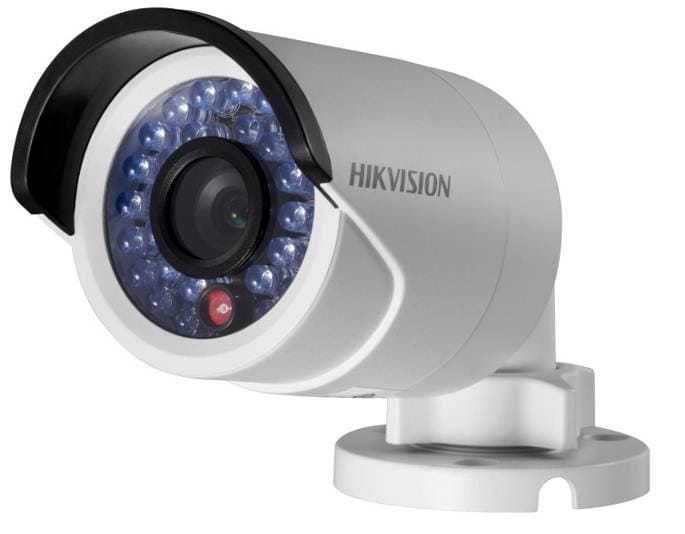

DS-2CD2014WD-I(4mm)

©2006 – 2014 by HIKVISION. All rights reserved.  1  DS-2CD2014WD-I      Key Features   Up to 1.0 megapixel (1280 x 720) resolution   Standard video compression with high compression ratio, ROI (region of interest) encoding   Progressive scan CMOS, capture motion video without incised margin   Support 3D DNR   Wide dynamic range, up to 100dB   Support dual stream, and the sub-stream for mobile surveillance   High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range   IR cut filter with auto switch   PoE (Power over Ethernet)   Ingress Protection level: IP66   Electronic shutter for different surveillance environments   Other functions: alarm, reset button, mirror, etc   Support intrusion detection and line crossing detection   Support VCA, which is compatible with NVR for the second time of video searching and analysing  Specification   Model  Parameter  DS-2CD2014WD-I  1.0 Megapixel CMOS WDR Network Bullet Camera  Camera  Image Sensor 1/4" Progressive Scan CMOS  Min. Illumination  0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR  0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR     ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2014 by HIKVISION. All rights reserved.
1
DS-2CD2014WD-I


Key Features
 Up to 1.0 megapixel (1280 x 720) resolution
 Standard video compression with high compression ratio, ROI (region of interest) encoding
 Progressive scan CMOS, capture motion video without incised margin
 Support 3D DNR
 Wide dynamic range, up to 100dB
 Support dual stream, and the sub-stream for mobile surveillance
 High-performance and long service life Infrared LED, Approx. 20 to 30 meters IR range
 IR cut filter with auto switch
 PoE (Power over Ethernet)
 Ingress Protection level: IP66
 Electronic shutter for different surveillance environments
 Other functions: alarm, reset button, mirror, etc
 Support intrusion detection and line crossing detection
 Support VCA, which is compatible with NVR for the second time of video searching and analysing
Specification
Model
Parameter
DS-2CD2014WD-I
1.0 Megapixel CMOS WDR Network Bullet Camera
Camera
Image Sensor 1/4" Progressive Scan CMOS
Min. Illumination
0.01Lux @ (F1.2, AGC ON) ,0 Lux with IR
0.028Lux @ (F2.0, AGC ON) ,0 Lux with IR



©2006 – 2014 by HIKVISION. All rights reserved.
2
Shutter Speed 1/3 s to 1/100,000 s
Lens
4mm@ F2.0, Angle of view: 55°
(6mm optional)
Lens Mount M12
Day &Night IR cut filter with auto switch
Digital Noise
Reduction
3D DNR
Wide Dynamic Range 100dB
Compression Standard
Video Compression H.264/ MJPEG
Video Bit Rate 32 Kbps – 8 Mbps
Dual Stream Yes
Max. Resolution 1280 x 720
Frame Rate
50 Hz: 25 fps (1280 x 720), 25 fps (704 x 576), 25 fps (640 x 480)
60 Hz: 30 fps (1280 x 720), 30 fps (704 x 576), 30 fps (640 x 480)
Image Settings
Rotate mode, Saturation, Brightness, Contrast adjustable by client
software or web browser
Backlight
compensation
Yes, zone optional
ROI Support
Network
Network Storage NAS (Support NFS,SMB/CIFS)
Alarm Trigger
Intrusion detection, Line crossing detection, Motion detection, Dynamic
analysis, Tampering alarm, Network disconnect , IP address conflict,
Storage exception
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour
General
One-key reset, Flash-prevention, dual stream, heartbeat, mirror,
password protection, privacy mask, watermark, IP address filtering,
Anonymous access
Standard ONVIF, PSIA, CGI, ISAPI
Interface
Communication
Interface
1 RJ45 10M/100M Ethernet interface
Reset Button Yes
General
Operating Conditions
-30 °C – 60 °C (-22 °F – 140 °F)
Humidity 95% or less (non-condensing)
Power Supply 12 V DC ± 10% , PoE (802.3af)



©2006 – 2014 by HIKVISION. All rights reserved.
3
Power Consumption Max. 6 W
Ingress Protection
level
IP66
IR Range 30 meters
Dimensions 60.4x76.9x139.28 mm (2.4” x 3.0” x 5.5”)
Weight 500g (1.1 lbs)
Order Models
DS-2CD2014WD-I
Dimensions
Unit: mm
