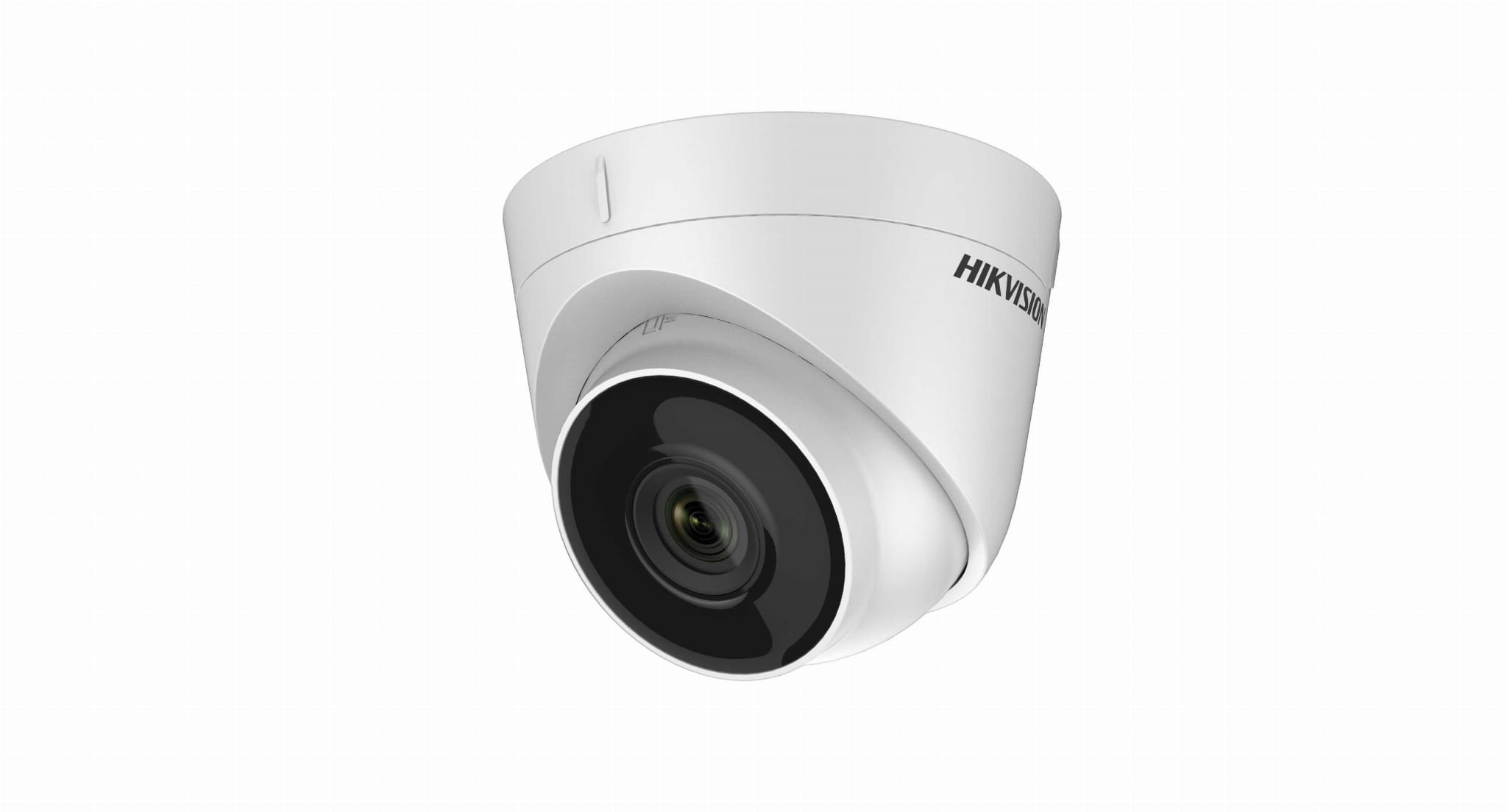

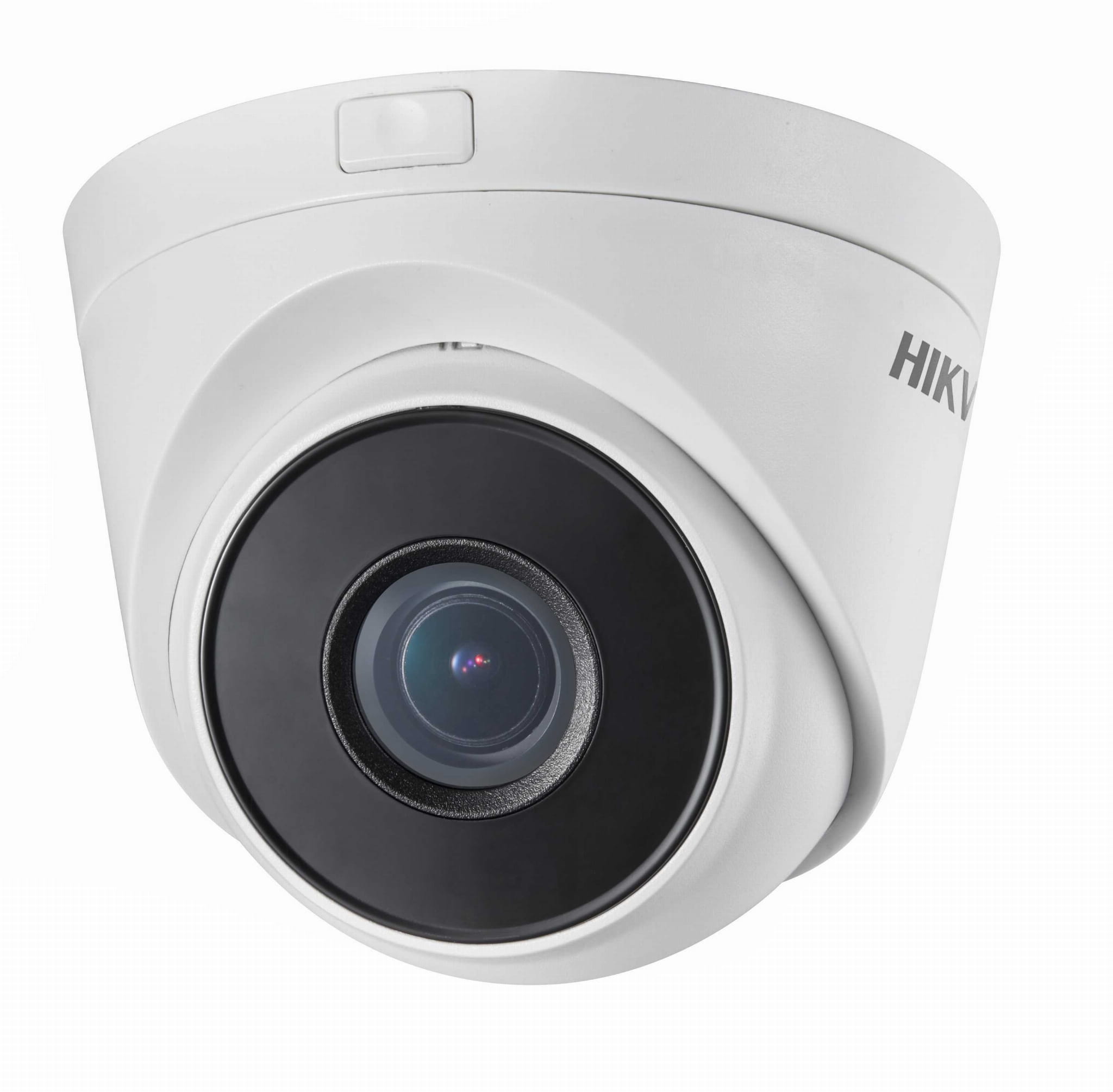

DS-2CD1H31WD-IZ(2.8-12mm)
Description
Key Features 1/ 3 " progressive scan CMOS Up to 3.0 megapixel 2.8 mm to 12 mm motorizedvari -focal lens Up to 30 m IR range Dual stream 120dB WDR (Wide Dynamic Range) 3D DNR (Digital Noise Reduction) PoE (Power over Ethernet) IP 67 Mobile monitoring via Hik -Connect or iVMS -4500 DS-2CD1H31WD-IZ 3.0 MP CMOS Vari-Focal NetworkTurret Camera Camera Image Sensor 1/ 3 " progressive scan CMOS Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR Shutter Speed 1/3s to 1/10 0,000 s, supportslow shutter Lens 2.8 mm ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Features
1/ 3 " progressive scan CMOS
Up to 3.0 megapixel
2.8 mm to 12 mm motorizedvari -focal lens
Up to 30 m IR range
Dual stream
120dB WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP 67
Mobile monitoring via Hik -Connect or iVMS -4500
DS-2CD1H31WD-IZ
3.0 MP CMOS Vari-Focal NetworkTurret Camera
Camera
Image Sensor 1/ 3 " progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, supportslow shutter
Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 9 8 ° to 30°
Lens Mount Φ 14
Day &Night IR cut filter with auto switch
3 -Axis Adjustment Pan: 0° to 3 60°, tilt: 0°to 65°, rotation:0° to 360 °
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard
Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main profile /High profile
Video Bit Rate 32 Kbps to16 Mbps
Max. Resolution 2304 x 1296
Main Stream
Max. Frame Rate
50Hz: 20fps @ ( 2304 x 1296 ), 25fps @ (1920 x 1080, 1280 x 720 )
60Hz: 20fps@ ( 2304 x 1296 ) , 30fps @ ( 1 920 x 1080, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @ (640 x 360, 352 x 288)
60Hz:30fps @ (640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS,SMB/CIFS)
Detections Motion detection
Alarms Video tampering , network disconnect ed, IP address conflict ed
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6 , Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function
One -key rest , anti - flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
General
Operating Conditions - 30 °C to60°C ( - 22 °F to140°F), humidity : 95% or less (non -condensing)
Power Supply 1 2 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 8.5 W/11 W (PoE)
Ingress Protection IP 67
IR Range 20 m to 30 m
Dimensions Φ 130.5 mm x102.4 mm (5.14 " x 4.03 " )
Weight 485 g (1.07 lb.)
Specification
Available Models
DS-2CD1H31WD - IZ
Dimension
102.4 mm (4.03")
Φ 112.4 mm (4.43")
3 - Φ 112.4 mm
(0.18")
Φ 130.5 mm (5.14")
120
°
Accessory
DS -1273ZJ - 130 -TRL
Wall Mounting Bracket
DS -1275ZJ
Vertical Pole Mounting Bracket
DS -1271ZJ - 130 -TRL
Pendant Mounting Bracket
DS -1276ZJ
Corner Mounting Bracket
DS -1280ZJ - M
Junction Box
DS -1281ZJ - M
Inclined Base Mounting Bracket
