DS-2CD1H21WD-IZ(2.8-12mm)

Key Features   1/2.8 " progressive scan CMOS   Up to 2.0 megapixel   2.8 mm to 12 mm motorizedvari -focal lens   Up to 30 m IR range   Dual stream   120dB WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP 67   Mobile monitoring via Hik -Connect or iVMS -4500    DS -2CD 1H21WD- IZ  2.0 MP CMOS Vari-Focal Network Turret Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR  Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter  Lens 2.8 mm ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 1/2.8 " progressive scan CMOS
 Up to 2.0 megapixel
 2.8 mm to 12 mm motorizedvari -focal lens
 Up to 30 m IR range
 Dual stream
 120dB WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67
 Mobile monitoring via Hik -Connect or iVMS -4500

DS -2CD 1H21WD- IZ

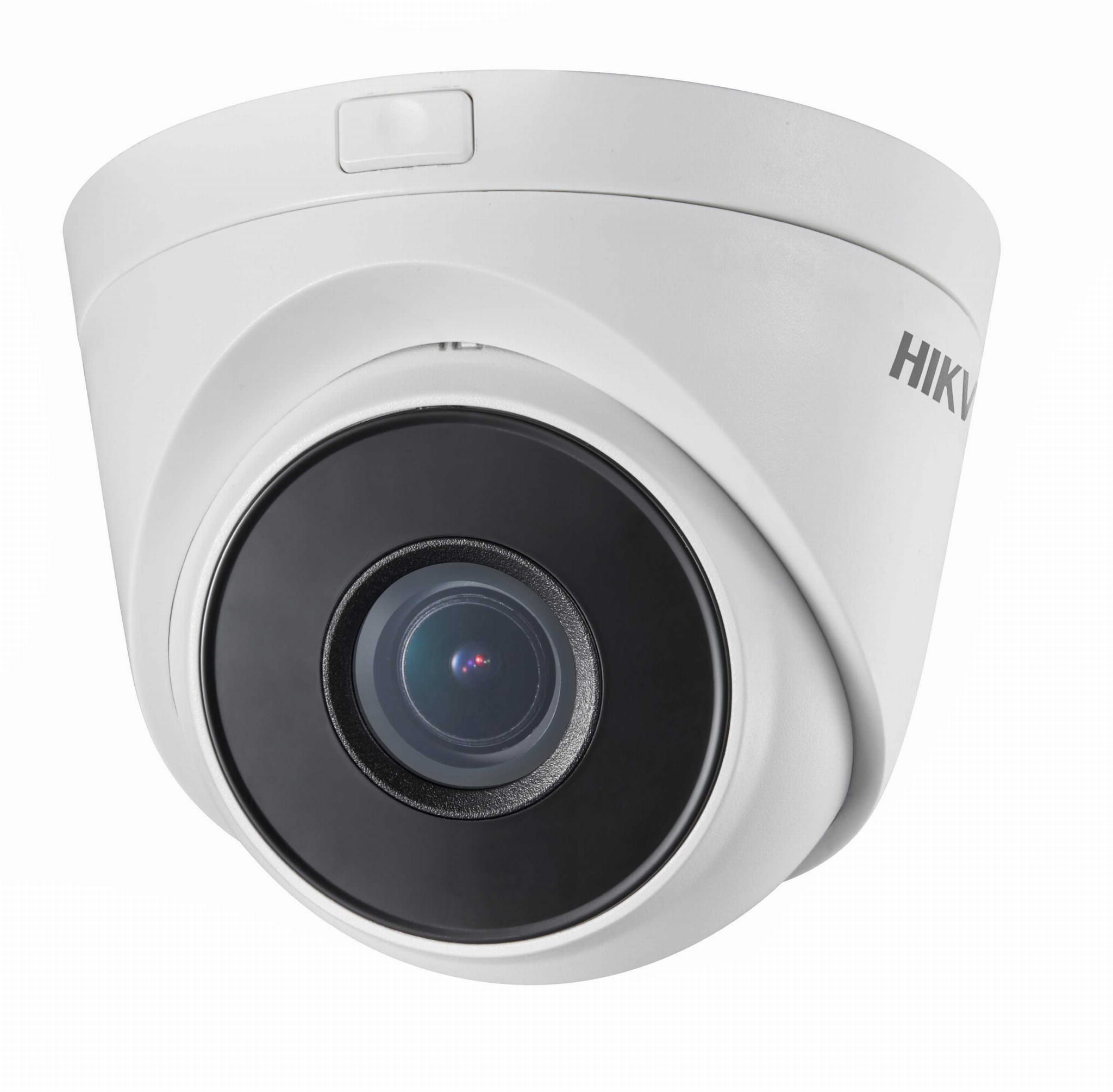

2.0 MP CMOS Vari-Focal Network Turret Camera



Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1. 4, horizontal field of view: 90 ° to 35°
Lens Mount Φ 14
Day &Night IR cut filter with auto switch
3 -Axis Adjustment Pan: 0° to 3 60°, tilt: 0°to 65°, rotation:0° to 360 °
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @ ( 1920 x 1080, 1280 x 960, 1280 x 720 )
60Hz: 30fps @ ( 1 920 x 1080, 1280 x 960, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @ ( 704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz:30fps @ (704 x 480, 640 x 480, 352 x 240, 320 x 240 )
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS,SMB/CIFS)
Detections Motion detection
Alarms Video tampering , network disconnect ed, IP address conflict ed
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6 , Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function
One -key res e t , anti - flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions - 30 °C to60°C ( - 22 °F to140°F), humidity : 95% or less (non -condensing)
Power Supply 1 2 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 8.5 W/11 W (PoE)
Ingress Protection IP 67
IR Range 20 m to 30 m
Dimensions Φ 130.5 mm x102.4 mm (5.14 " x 4.03 " )
Weight 485 g (1.07 lb.)
Specification



Available Models
DS-2CD1H21WD - IZ
Dimension

102.4 mm (4.03")
Φ 112.4 mm (4.43")
3 - Φ 112.4 mm
(0.18")
Φ 130.5 mm (5.14")
120
°


Accessory

DS -1273ZJ - 130 -TRL
Wall Mounting Bracket

DS -1275ZJ
Vertical Pole Mounting Bracket

DS -1271ZJ - 130 -TRL
Pendant Mounting Bracket

DS -1276ZJ
Corner Mounting Bracket

DS -1280ZJ - M
Junction Box

DS -1281ZJ - M
Inclined Base Mounting Bracket
