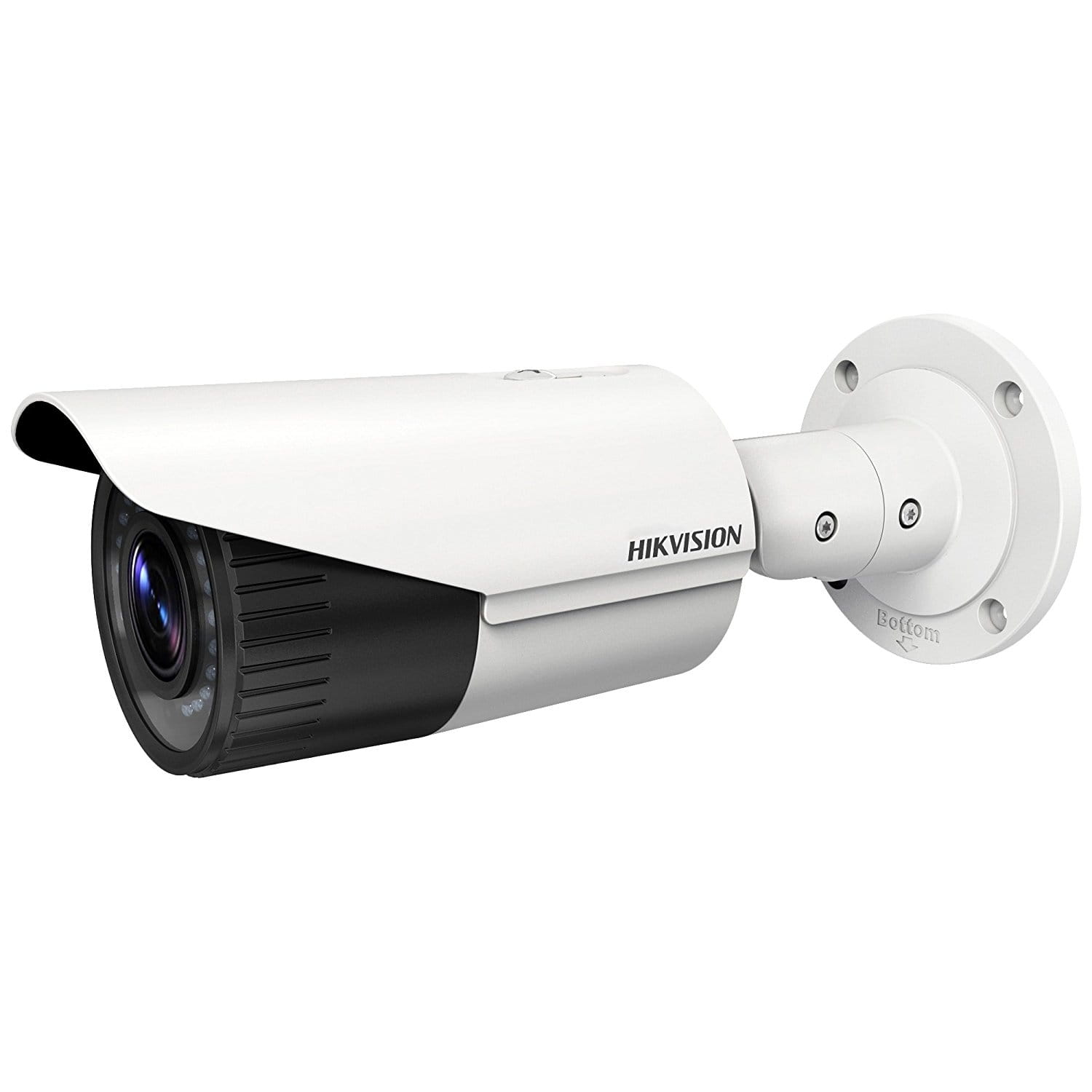

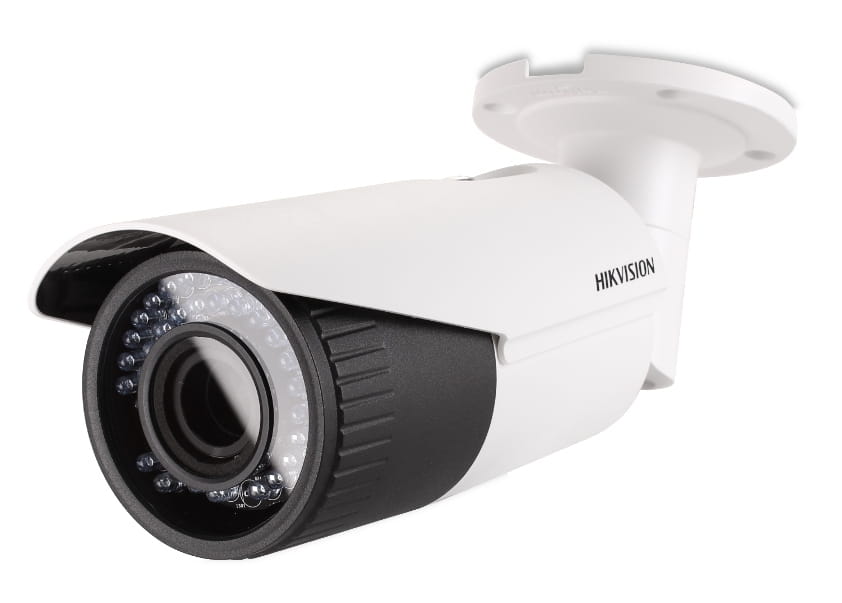

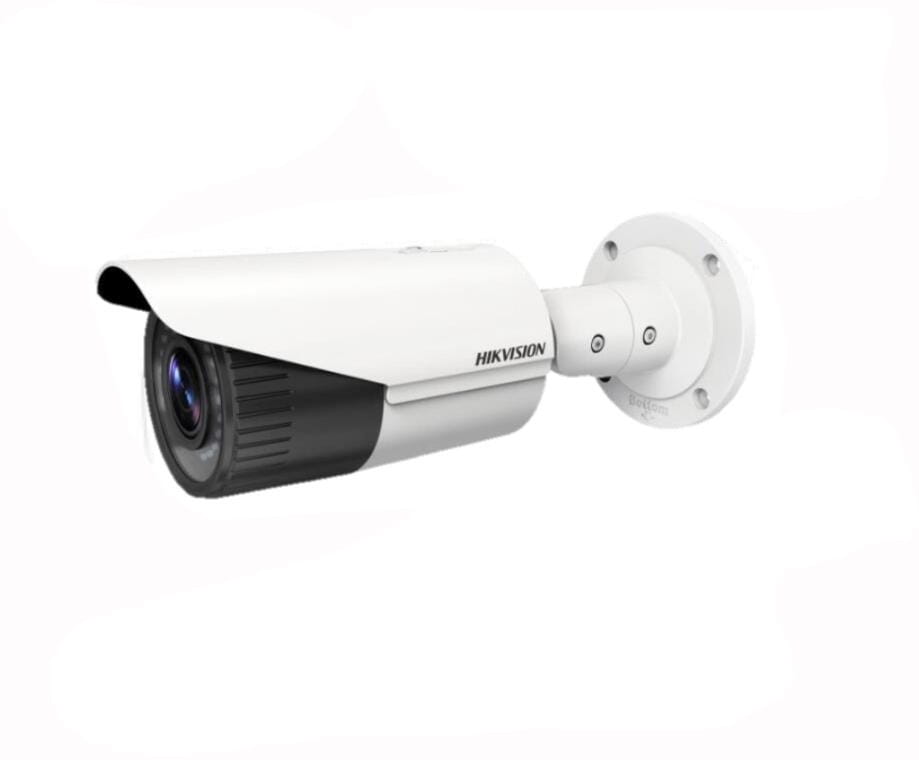

DS-2CD1631FWD-IZ(2.8-12mm)

Availability: 0
Price: €225.46 225.46
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300726261

Description

Key Features   1/3" progressive scan CMOS   Up to 3.0 megapixel   2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens   Up to 30 m IR range   Dual stream   120 dB WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1631FWD-I (Z)  3.0 MP CMOS Vari-Focal Network Bullet Camera          Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 108° to 31°  Lens Mount Φ14  Day &Night IR cut filter with auto switch  3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 100°, rotation: 0° to 355°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) 120 dB  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Main profile/High profile  Video Bit Rate 32 Kbps to 16 Mbps  Dual Stream Support  Image  Max. Resolution 2304 x 1296  Main Stream  Max. Frame Rate  50Hz: 20f...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Key Features
1/3" progressive scan CMOS
Up to 3.0 megapixel
2.8 mm to 12 mm manual/motorized (with -Z) vari-focal lens
Up to 30 m IR range
Dual stream
120 dB WDR (Wide Dynamic Range)
3D DNR (Digital Noise Reduction)
PoE (Power over Ethernet)
IP67
Mobile monitoring via Hik-Connect or iVMS-4500

DS-2CD1631FWD-I (Z)
3.0 MP CMOS Vari-Focal Network Bullet Camera




Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1.4, horizontal field of view: 108° to 31°
Lens Mount Φ14
Day &Night IR cut filter with auto switch
3-Axis Adjustment Pan: 0° to 355°, tilt: 0° to 100°, rotation: 0° to 355°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Main profile/High profile
Video Bit Rate 32 Kbps to 16 Mbps
Dual Stream Support
Max. Resolution 2304 x 1296
Main Stream
Max. Frame Rate
50Hz: 20fps @(2304 x 1296), 25fps @(1920 x 1080, 1280 x 720)
60Hz: 20fps @(2304 x 1296), 30fps @(1920 x 1080, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(640 x 360, 352 x 288)
60Hz: 30fps @(640 x 360, 352 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
Detections Motion detection
Alarms Video tampering, network disconnected, IP address conflicted, HDD full, HDD error
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function
One-key rest, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
Video Output (Without -Z) 1Vp-p composite output (75Ω/BNC)
Reset Support
General
Operating Conditions -30 °C to 60°C (-22 °F to 140°F), humidity: 95% or less (non-condensation)
Power Supply DC12V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5 W/11 W (with -Z)
Ingress Protection IP 67
IR Range Up to 30 m
Dimensions 91.6 mm x 105 mm x 294.5 mm (3.6" x 4.1" x 11.6")
Weight 1200 g (2.6 lb.)
Specification


Available Models
DS-2CD1631F-I (Z)
Dimension
294.5 mm (11.6")
274.9 mm (10.8")
168.5 mm (6.6")
91.6 mm (3.6")
Φ 105 mm (4.1")
62.6 mm (2.5")
62.6 mm (2.5")
4- Φ 4.2 mm (0.17")

Accessory


DS-1260ZJ
Junction Box
DS-1275ZJ
Vertical Pole Mounting Bracket
DS-1280ZJ-S
Junction Box
DS-1276ZJ
Corner Mounting Bracket
