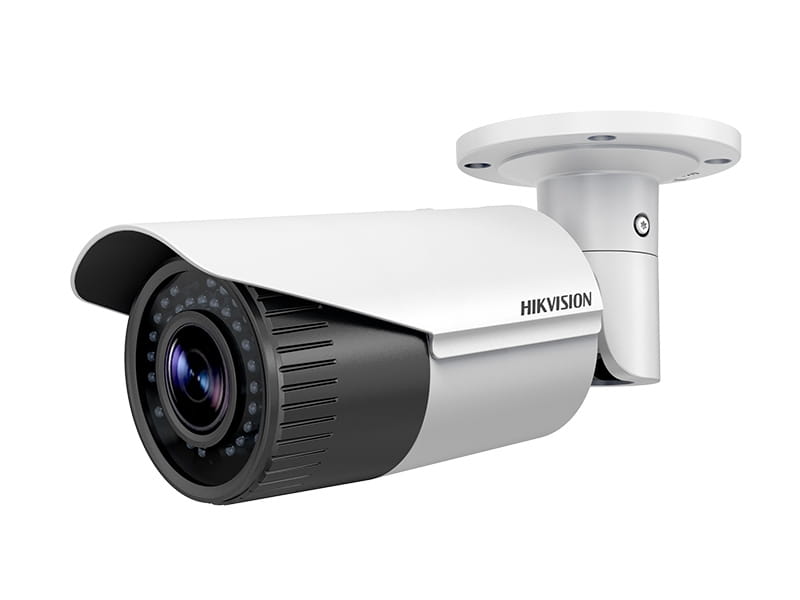

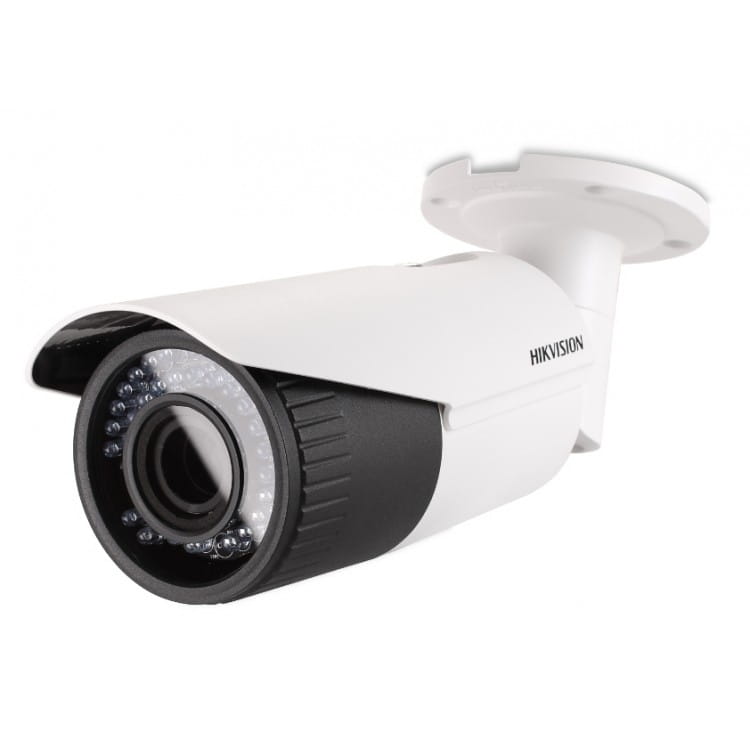

DS-2CD1621FWD-IZ(2.8-12mm)

Key Features   1/2.8 " progressive scan CMOS   Up to 2.0 megapixel   2.8 mm to 12 mm manual/motorized (with -Z) vari -focal lens   Up to 30 m IR range   Dual stream   120dB WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP 67   Mobile monitoring via Hik -Connect or iVMS -4500    DS -2CD 16 21F WD - I (Z)  2.0 MP CMOS Vari -Focal Network Bullet Camera          Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR  Shutter Speed 1/3s to 1/10 0,000...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 1/2.8 " progressive scan CMOS
 Up to 2.0 megapixel
 2.8 mm to 12 mm manual/motorized (with -Z) vari -focal lens
 Up to 30 m IR range
 Dual stream
 120dB WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67
 Mobile monitoring via Hik -Connect or iVMS -4500

DS -2CD 16 21F WD - I (Z)
2.0 MP CMOS Vari -Focal Network Bullet Camera




Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2,AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens 2.8 mm to 12 mm @F1.4 , horizontal field of view: 100° to 35 °
Lens Mount Φ 14
Day &Night IR cut filter with auto switch
3 -Axis Adjustment Pan: 0° to 355°, tilt: 0° to 100°, rotation: 0° to 355°
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) 120 dB
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Dual Stream Support
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @ ( 1920 x 1080, 1280 x 960, 1280 x 720 )
60Hz: 30fps @ ( 1 920 x 1080, 1280 x 960, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @(704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30fps @(704 x 480, 640 x 480, 352 x 240, 320 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage Support micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Detections Motion detection
Alarms Video tampering , network disconnect ed, IP address conflicted, HDD full, HDD error
Protocols
TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,
NTP,UPnP,SMTP,IGMP,802.1X,QoS,IPv6 , Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function
One -key rest , anti - flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP
address filter
Interface
Communication Interface 1 RJ45 10M/100M self -adaptive Ethernet port
Video Output (Without - Z) 1Vp - p composite output(75Ω/BNC)
Reset Support
General
Operating Conditions - 30 °C to60°C ( - 22 °F to140°F), humidity: 95% or less (non -condensing)
Power Supply DC 1 2V ± 25%, PoE (802.3af)
Power Consumption Max. 5.5 W/11 W (with -Z)
Ingress Protection IP 67
IR Range Up to 30 m
Dimensions 91.6 mm x105 mm x294.5 mm (3.6 " x 4.1 " x 11.6 " )
Weight 1200 g (2.6 lb.)
Specification



Available Models
DS-2CD 1 6 21 FWD -I(Z)
Dimension

294. 5 mm ( 11 . 6 " )
274. 9 mm ( 10 . 8 " )
168. 5 mm ( 6 . 6 " )
91 . 6 mm ( 3 . 6 " )
Φ

105
mm
(
4
.
1
"
)
62 . 6 mm ( 2 . 5 " )
62
.
6
mm
(
2
.
5
"
)
4 - Φ 4 . 2 mm ( 0 . 17 " )

Accessory



DS-1260ZJ
Junction Box
DS-1275ZJ
Vertical Pole Mounting Bracket
DS-1280ZJ-S
Junction Box
DS-1276ZJ
Corner Mounting Bracket
