DS-2CD1353G0-I(2.8mm)(C)

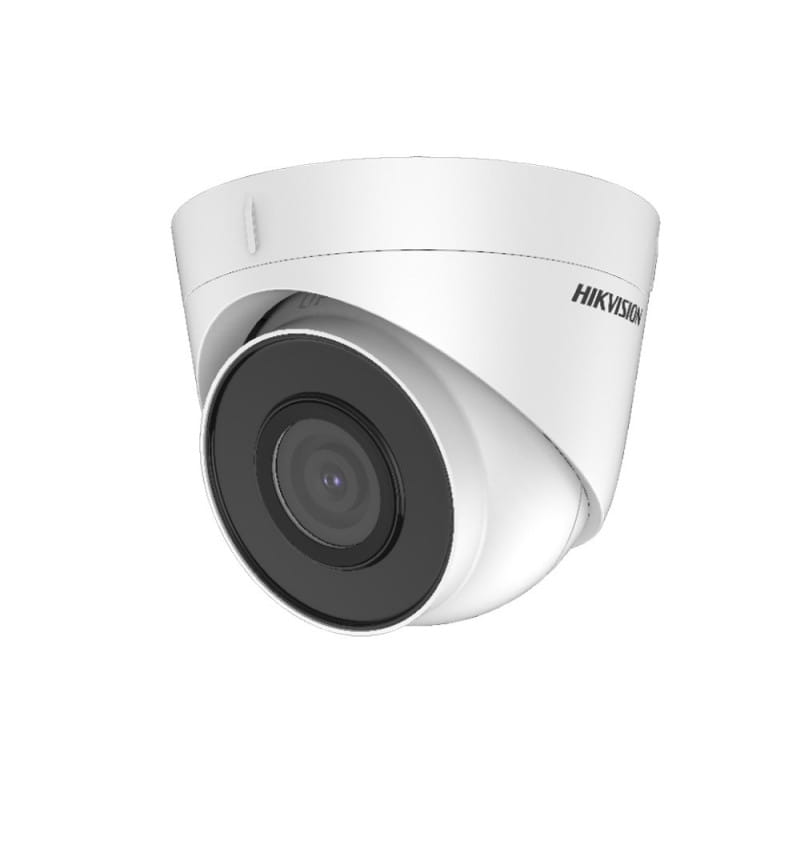

DS-2CD1353G0-I(UF)  5 MP Fixed Turret Network Camera                             High quality imaging with 5 MP resolution   Efficient H.265+ compression technology   Clear imaging even with strong back lighting due to 120 dB  WDR     Water and dust resistant (IP67)   EXIR 2.0: advanced infrared technology with long IR range   3D DNR technology delivers clean and sharp images               Specification  Camera  Image Sensor 1/2.7" Progressive Scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100,000 s  Slow Shutter Yes  Day &Night IR Cut Filter  Wide Dynamic Range 120 dB  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°  DNR 3D DNR  Lens  Lens 2.8/4 mm  Aperture F2.0  Focus Fixed  FOV  2.8 mm, horizontal FOV: 98°, vertical FOV: 72°, diagonal FOV: 127°  4 mm, horizontal field of view: 77°, vertical FOV: 56°, diagonal FOV: 102°  Lens Mount M12  Illuminator  IR Range Up to 30 m  Wavelength 850 nm  Video  Max. Resolution 2560 x 1920  Main Stream  50 Hz: 12.5 fps (2560 x ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2CD1353G0-I(UF)
5 MP Fixed Turret Network Camera













 High quality imaging with 5 MP resolution
 Efficient H.265+ compression technology
 Clear imaging even with strong back lighting due to 120 dB
WDR

 Water and dust resistant (IP67)
 EXIR 2.0: advanced infrared technology with long IR range
 3D DNR technology delivers clean and sharp images






 Specification
Camera
Image Sensor 1/2.7" Progressive Scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028 Lux @(F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Day &Night IR Cut Filter
Wide Dynamic Range 120 dB
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
DNR 3D DNR
Lens
Lens 2.8/4 mm
Aperture F2.0
Focus Fixed
FOV
2.8 mm, horizontal FOV: 98°, vertical FOV: 72°, diagonal FOV: 127°
4 mm, horizontal field of view: 77°, vertical FOV: 56°, diagonal FOV: 102°
Lens Mount M12
Illuminator
IR Range Up to 30 m
Wavelength 850 nm
Video
Max. Resolution 2560 x 1920
Main Stream
50 Hz: 12.5 fps (2560 x 1920)
20 fps (2560 x 1440)
25 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60 Hz: 15 fps (2560 x 1920)
20 fps (2560 x 1440)
30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub Stream
50Hz: 25 fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30 fps (640 x 480, 640 x 360, 320 x 240)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Audio
Audio Compression -UF: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate
-UF: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to
64 Kbps (AAC)
Audio Sampling Rate -UF: 8 kHz/16 kHz
Environment Noise Filtering -UF: Yes
Smart Feature-Set
Region of Interest Support 1 fixed region for main stream



Image Enhancement BLC/3D DNR
Image Setting
Saturation, brightness, contrast and sharpness are adjustable via client software and
web browser
Day/Night Switch Auto/Schedule/Day/Night
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
SMTP, IGMP, QoS, IPv6, UDP, Bonjour, 802.1x
API Open Network Video Interface (Profile S, Profile G), ISAPI, SDK
Simultaneous Live View Up to 6 channels
User/Host Up to 32 users, 3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser
Plug-in required live view: IE 10, IE 11
Local service: Chrome 57.0+, Firefox 52.0+
Alarm Trigger
Motion detection, video tampering, exception (network disconnected, IP address
conflict, illegal login, HDD error)
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Built-in Microphone -UF: Yes
Hardware Reset -UF: Yes
Compression Standard
H.264+ Main stream supports
H.265+ Main stream supports
General
Firmware Version V5.5.122
Web Client Language English, Ukrainian
General Function Heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Consumption and
Current
12 VDC, 0.4 A, max. 5 W
PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 6.5 W
Material Metal & plastic
Dimensions
Camera: Ø 110 mm x 85.3 mm (Ø4.3" x 3.4")
With package: 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Weight
Camera: approx. 320 g (0.7 lb.)
With package: approx. 566 g (1.2 lb.)
Interface Protection IP67 (IEC 60529-2013)



 Available Model
DS-2CD1353G0-I (2.8/4 mm)







 Dimension



 Accessory
 Optional
DS-1280ZJ-S
Junction Box
DS-1276ZJ-SUS
Corner Mount
DS-1272ZJ-110-TRS
Wall Mount
DS-1275ZJ-SUS
Vertical Pole Mount
