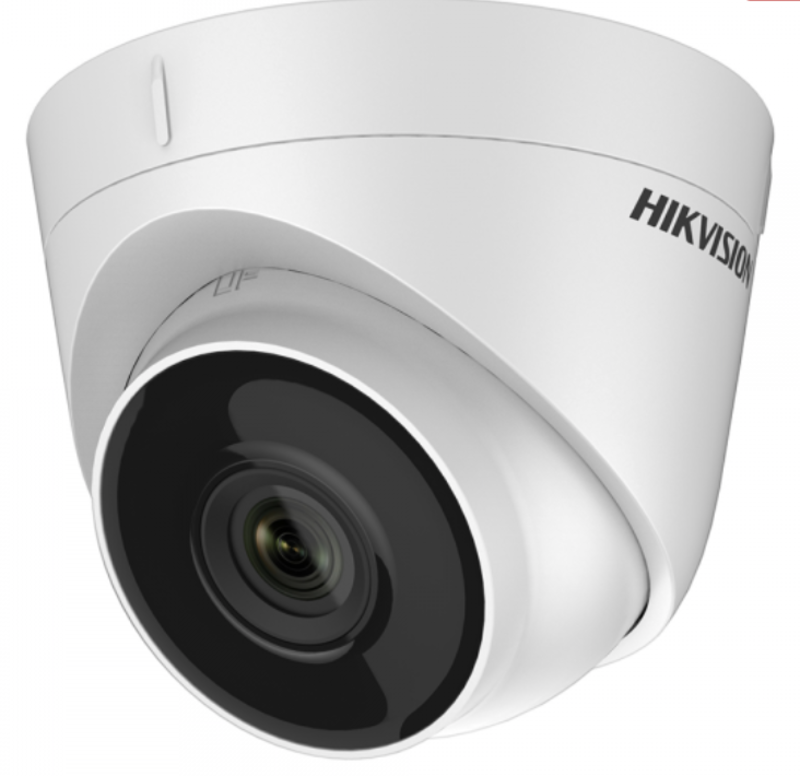

DS-2CD1343G0-I(4mm)(C)
Description
DS-2CD1343G0-I(UF) 4 MP Fixed Turret Network Camera High quality imaging with 4 MP resolution Efficient H.265+ compression technology Clear imaging even with strong back lighting due to 120 dB WDR Water and dust resistant (IP67) EXIR 2.0: advanced infrared technology with long IR range Built-in microphone for real-time audio security Support up to 256 GB SD card storage Specification Camera Image Sensor 1/3" progressive scan CMOS Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR Shutter Speed 1/3 s to 1/100, 000 s Slow Shutter Yes Wide Dynamic Range 120 dB Day & Night IR cut filter Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360° Lens Focal Length & FOV 2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7° 4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3° Lens Mount M12 Focus Fixed Aperture F2.0 Illuminator IR Wavelength 850 nm IR Range Up to 30 m Video Max. Resolution 2560 x 1440 Main Stream 50 Hz: 20 fps (2560 x 1440)
Warning! Product withdrawn from production!
Replacement product: DS-2CD1343G2-I(4mm)
Replacement product code: 311320740
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-2CD1343G0-I(UF)
4 MP Fixed Turret Network Camera
High quality imaging with 4 MP resolution
Efficient H.265+ compression technology
Clear imaging even with strong back lighting due to 120 dB
WDR
Water and dust resistant (IP67)
EXIR 2.0: advanced infrared technology with long IR range
Built-in microphone for real-time audio security
Support up to 256 GB SD card storage
Specification
Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F2.0, AGC ON), B/W: 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s
Slow Shutter Yes
Wide Dynamic Range 120 dB
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal Length & FOV
2.8 mm, horizontal FOV 98.0°, vertical FOV 53.1°, diagonal FOV 114.7°
4 mm, horizontal FOV 78.7°, vertical FOV 43.1°, diagonal FOV 92.3°
Lens Mount M12
Focus Fixed
Aperture F2.0
Illuminator
IR Wavelength 850 nm
IR Range Up to 30 m
Video
Max. Resolution 2560 x 1440
Main Stream
50 Hz: 20 fps (2560 x 1440)
25 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60 Hz: 20 fps (2560 x 1440)
30 fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-Stream
50 Hz: 25 fps (640 x 480, 640 x 360)
60 Hz: 30 fps (640 x 480, 640 x 360)
Video Compression
Main stream: H.265/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile/Main Profile/High Profile
H.265 Type Main Profile
H.264+ Main stream supports
H.265+ Main stream supports
Region of Interest (ROI) 1 fixed region for main stream
Network
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP,
UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live View Up to 6 channels
API Open Network Video Interface, ISAPI
User/Host Up to 32 users. 3 levels: administrator, operator and user
Network Storage -UF: NAS (NFS, SMB/CIFS), ANR
Client iVMS-4200, Hik-Connect
Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client
software or web browser
Day/Night Switch Auto, Schedule, Day, Night
Image Enhancement BLC, 3D DNR
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage -UF: Built-in memory card slot, support microSD card, up to 256 GB
Built-in Microphone -UF: Yes
Hardware Reset -UF: Yes
Event
Basic Event Motion detection, video tampering alarm, exception
General
Linkage Method
Upload to FTP, notify surveillance center, send email
-UF also supports: upload to memory card, trigger recording, trigger capture
Camera Material Metal & Plastic
Camera Dimension Ø110 mm x 85.3 mm (Ø 4.3" x 3.4")
Package Dimension 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Camera Weight Approx. 320 g (0.7 lb.)
With Package Weight Approx. 556 g (1.2 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Startup and Operating
Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language English, Ukrainian
General Function
Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP
address filter
Firmware Version V5.5.120
Power Consumption and Current
12 VDC, 0.4 A, max. 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Power Supply
12 VDC ± 25%
PoE: 802.3af, Class 3
Power Interface Ø5.5 mm coaxial power plug
Approval
EMC
FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014,
EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC
VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014);
CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS
13252(Part 1):2010+A1:2013+A2:2015)
Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP67 (IEC 60529-2013)
Dimension
Accessory
Optional
DS-1276ZJ-SUS
Corner Mount
DS-1280ZJ-S
Junction Box
DS-1275ZJ-SUS
Vertical Pole Mount
DS-1272ZJ-110-TRS
Wall Mount
Available Model
DS-2CD1343G0-I (2.8/4 mm)
DS-2CD1343G0-IUF (2.8/4 mm)
