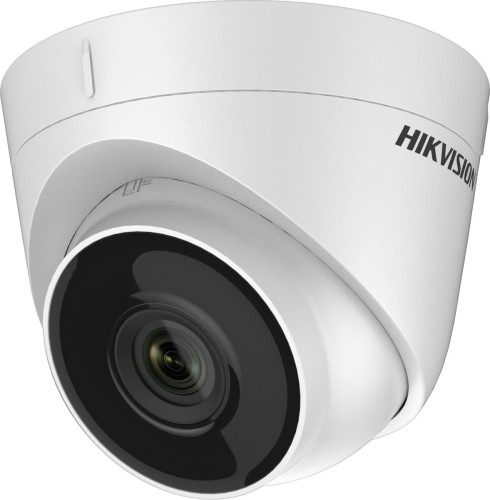

DS-2CD1343G0-I(4mm)

Key Features      * 1/3" progressive scan CMOS * 3D DNR (Digital Noise Reduction)  * 2560 x 1440@20fps * Up to 30 m IR range  * 2.8 mm/4 mm/6 mm fixed lens * PoE (Power over Ethernet)  * H.265+, H.265, H.264+, H.264 * IP 67  * Dual stream  * Digital WDR (Wide Dynamic Range)      DS-2CD1343G0-I  4.0 MP CMOS Network Turret Camera        Camera  Image Sensor 1/3" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Slow Shutter Yes  Auto-Iris No  Day &Night IR cut filter  Digital Noise Reduction 3D DNR  WDR Digital WDR  Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°  Lens  Focal Length 2.8 mm, 4 mm, 6 mm  Aperture F2.0  Focus No  FOV  2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°  4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°  6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°  Lens Mount M12  IR  IR Range Up to 30 m  Wavelength 850 nm  Compression Standard    Video Compression  Main stream: H.265/H.264  Sub stream: H.265/H.264/MJPEG  H.2...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features


* 1/3" progressive scan CMOS * 3D DNR (Digital Noise Reduction)
* 2560 x 1440@20fps * Up to 30 m IR range
* 2.8 mm/4 mm/6 mm fixed lens * PoE (Power over Ethernet)
* H.265+, H.265, H.264+, H.264 * IP 67
* Dual stream
* Digital WDR (Wide Dynamic Range)


DS-2CD1343G0-I
4.0 MP CMOS Network Turret Camera



Camera
Image Sensor 1/3" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Focal Length 2.8 mm, 4 mm, 6 mm
Aperture F2.0
Focus No
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2560 x 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 x 1440), 25fps (2304 x 1296, 1920 x 1080, 1280 x 720)
60Hz: 20fps (2560 x 1440), 30fps (2304 x 1296, 1920 x 1080, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC, 3D DNR
Image Settings
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled
Network
Network Storage NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Specification





Available Models
DS-2CD1343G0-I (2.8 mm), DS-2CD1343G0-I (4 mm), DS-2CD1343G0-I (6 mm)





Firmware Version 5.5.3
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 36 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Ingress Protection
IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions
Camera: Ø 110 mm x 93.2 mm ( 4.3" x 3.7")
With package: 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Weight
Camera: approx. 350 g (0.77 lb.)
With package: approx. 610 g (1.3 lb.)



Dimension
Φ 85 mm (3.35")

9
3.
2

m
m

(
3
.
6
7"
)
Φ 110 mm (4.33")
3 - Φ 4.2 mm (0.17")



Accessory

DS-1272ZJ-110-TRS
Wall Mount

DS-1275ZJ
Vertical Pole Mount

DS-1281ZJ-S
Inclined Base Mount

DS-1276ZJ
Corner Mount

DS-1280ZJ-S
Junction Box
