DS-2CD1323G0-I(4mm)

Availability: 0

Price: €119.60 119.60

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 311300900

ask about product or pricing

Description

Warning! Product withdrawn from production!

Replacement product: DS-2CD1323G0E-I(4mm)

Replacement product code: 311305705

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features

* 1/2.8" progressive scan CMOS * 3D DNR (Digital Noise Reduction)
* 1920 x 1080@30fps * Up to 30 m IR range
* 4 mm/6 mm fixed lens * PoE (Power over Ethernet)
* H.265+, H.265, H.264+, H.264 * IP67
* Dual stream
* Digital WDR (Wide Dynamic Range)

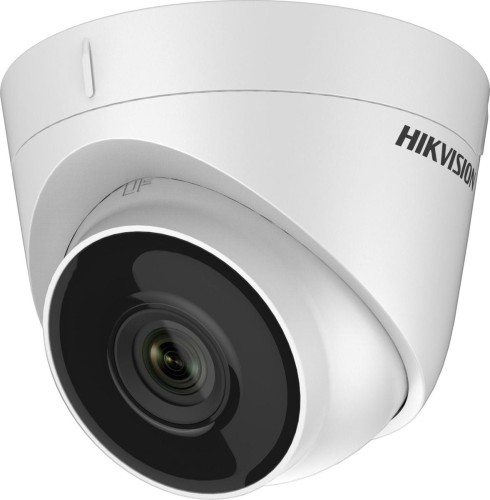

DS-2CD1323G0-I
2.0 MP IR Network Turret Camera

Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotation: 0° to 360°
Lens
Focal length 4 mm, 6 mm
Aperture F2.0
Focus No
FOV
4 mm, horizontal FOV 86°, vertical FOV 46°, diagonal FOV 102°
6 mm, horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard

Video Compression
Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps (1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps (1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps (640 x 480, 640 x 360, 320 x 240)
60Hz: 30fps (640 x 480, 640 x 360, 320 x 240)
Image Enhancement BLC, 3D DNR
Image Setting
Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled
Network
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
Firmware Version 5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Specification

Available Models
DS-2CD1323G0-I (4 mm), DS-2CD1323G0-I (6 mm)

Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply
12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current
12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Ingress Protection
IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions
Camera: Ø 110 mm x 93.2 mm ( 4.3" x 3.7")
With package: 150 mm x 150 mm x 141 mm (5.9" x 5.9" x 5.6")
Weight
Camera: Approx. 360 g (0.8 lb.)
With package: Approx. 610 g (1.3 lb.)

Dimension
Φ 85 mm (3.35")

9
3.
2

m
m

(
3
.
6
7"
)
Φ 110 mm (4.33")
3 - Φ 4.2 mm (0.17")

Accessory

DS-1272ZJ-110-TRS
Wall Mount

DS-1275ZJ
Vertical Pole Mount

DS-1281ZJ-S
Inclined Base Mount

DS-1276ZJ
Corner Mount

DS-1280ZJ-S
Junction Box

050520180120
