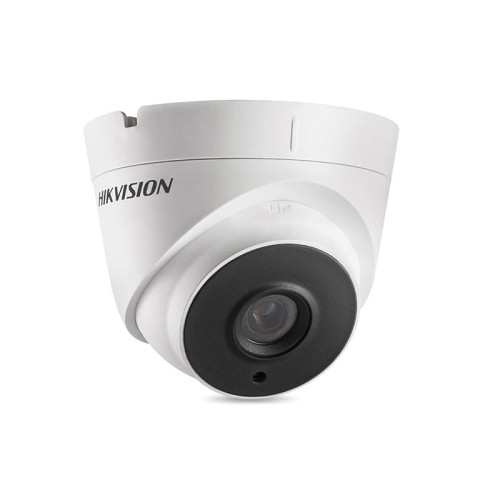

DS-2CD1321-I(4mm)(D)

Key Features   1/ 2. 8 " progressive scan CMOS   Up to 2.0 megapixel   2.8mm/4 mm/6mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR ( Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP 67   Mobile monitoring via Hik -Connect or iVMS -4500    DS -2CD 1321 - I (C)  2.0 MP CMOS NetworkTurret Camera      Camera  Image Sensor 1/ 2. 8" progressive scan CMOS  Min. Illumination Color: 0.01Lux @(F1.2, AGC ON),0 Lux with IR  Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter ...

Warning! Product withdrawn from production!

Replacement product: DS-2CD1321-I(4mm)(E)

Replacement product code: 311308670

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Key Features
 1/ 2. 8 " progressive scan CMOS
 Up to 2.0 megapixel
 2.8mm/4 mm/6mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR ( Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP 67
 Mobile monitoring via Hik -Connect or iVMS -4500

DS -2CD 1321 - I (C)
2.0 MP CMOS NetworkTurret Camera


Camera
Image Sensor 1/ 2. 8" progressive scan CMOS
Min. Illumination Color: 0.01Lux @(F1.2, AGC ON),0 Lux with IR
Shutter Speed 1/3s to 1/10 0,000 s, support slow shutter
Lens
2.8 mm @F2.0, horizontal field of view 95° , 4 mm @F2.0, horizontal field of view 83.6 °
6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
3 -Axis Adjustment Pan: 0° to 3 60°, tilt: 0°to 75°, rotation:0° to 360 °
DNR(Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Base line Profile /Main Profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1 920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @(1920 x 1080, 1280 x 960, 1280 x 720 )
60Hz: 30fps @(1920 x 1080, 1280 x 960, 1280 x 720 )
Sub-stream
Max. Frame Rate
50Hz: 25fps @(704 x 576, 640 x 480, 352 x 288,320 x 240 )
60Hz: 30fps @(704 x 480, 640 x 480, 352 x 240,320 x 240 )
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS,SMB/CIFS)
Detections Motion Detection
Alarms Video tampering , network disconnect ed, IP address conflict ed
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF(PROFILE S,PROFILE G),PSIA,CGI,ISAPI
General Function Anti- flicker , heartbeat, mirror, password protection, privacy mask, watermark , IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions - 30 °C to 60 °C ( - 22 °F to 140 °F), humidity : 95% or less (non -condensing)
Power Supply 1 2 V DC ± 25%, PoE (802.3af)
Power Consumption Max. 4 W/ 6 W (PoE)
Ingress Protection IP 67
IR Range Up to 30 m
Dimensions Φ 85.5 mm x 70 mm (3.38 " x 2.76 " )
Weight 350 g (0.77 lb.)
Specification




Available Models
DS-2CD1 3 21 - I
Dimension

70
mm
(
2
.
76
"
)
60 mm (2.36")
2 - Φ 4.5 mm
(0.18")
Φ 85.5 mm (3.38")


Accessory

DS -1272ZJ - 110 -TRS
Wall Mounting Bracket

DS -1275ZJ
Vertical Pole Mounting Bracket

DS -1280ZJ - XS
Inclined Base Mounting Bracket

DS -1276ZJ
Corner Mounting Bracket





050440170207
