DS-2CD1021-I(2.8mm)(E)

Availability: 11-50
Price: €93.88 93.88
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 311308677

Description

Key Features   1/2.8" progressive scan CMOS   Up to 2.0 megapixel   2.8 mm/4 mm/6 mm fixed focal lens   Up to 30 m IR range   Dual stream   Digital WDR (Wide Dynamic Range)   3D DNR (Digital Noise Reduction)   PoE (Power over Ethernet)   IP67   Mobile monitoring via Hik-Connect or iVMS-4500    DS-2CD1021-I  2.0 MP CMOS Network Bullet Camera        Camera  Image Sensor 1/2.8" progressive scan CMOS  Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR  Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter  Lens  2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.2, horizontal field of view 83.6°  6 mm @F2.0, horizontal field of view 55°  Lens Mount M12  Day &Night IR cut filter with auto switch  3-Axis Adjustment (Bracket) Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360°  DNR (Digital Noise Reduction) 3D DNR  WDR (Wide Dynamic Range) Digital WDR  Compression Standard    Video Compression  Main stream: H.264+/H.264  Sub stream: H.264/MJPEG  H.264 Type Baseline profile/Main profile  Video Bit Rate 32 Kbps to 8 Mbps  Image  Max. Resolution 1920 x 1080  Main Stream  Max. Frame Rate  50Hz: 25...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Key Features
 1/2.8" progressive scan CMOS
 Up to 2.0 megapixel
 2.8 mm/4 mm/6 mm fixed focal lens
 Up to 30 m IR range
 Dual stream
 Digital WDR (Wide Dynamic Range)
 3D DNR (Digital Noise Reduction)
 PoE (Power over Ethernet)
 IP67
 Mobile monitoring via Hik-Connect or iVMS-4500

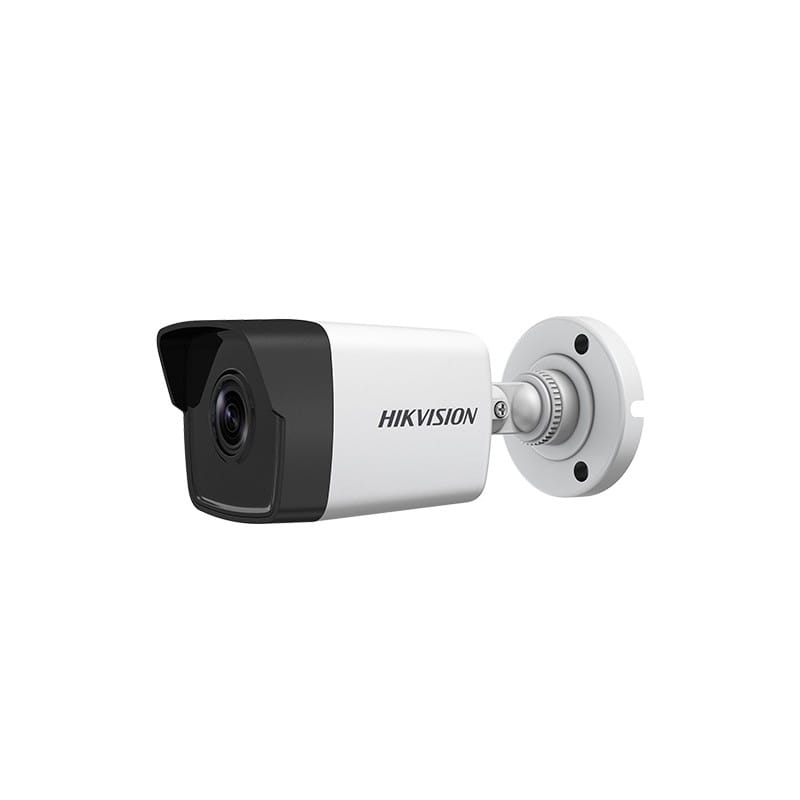

DS-2CD1021-I
2.0 MP CMOS Network Bullet Camera



Camera
Image Sensor 1/2.8" progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0 Lux with IR
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Lens
2.8 mm @F2.0, horizontal field of view 105.8°, 4 mm @F2.2, horizontal field of view 83.6°
6 mm @F2.0, horizontal field of view 55°
Lens Mount M12
Day &Night IR cut filter with auto switch
3-Axis Adjustment (Bracket) Pan: 0° to 360°, tilt: -90° to 90°, rotation: 0° to 360°
DNR (Digital Noise Reduction) 3D DNR
WDR (Wide Dynamic Range) Digital WDR
Compression Standard

Video Compression
Main stream: H.264+/H.264
Sub stream: H.264/MJPEG
H.264 Type Baseline profile/Main profile
Video Bit Rate 32 Kbps to 8 Mbps
Max. Resolution 1920 x 1080
Main Stream
Max. Frame Rate
50Hz: 25fps @(1920 x 1080, 1280 x 960, 1280 x 720)
60Hz: 30fps @(1920 x 1080, 1280 x 960, 1280 x 720)
Sub-stream
Max. Frame Rate
50Hz: 25fps @(704 x 576, 640 x 480, 352 x 288, 320 x 240)
60Hz: 30fps @(704 x 480, 640 x 480, 352 x 240, 320 x 240)
Image Settings Brightness, saturation, contrast, sharpness are adjustable via web browser or client software
Day/Night Switch Support auto, scheduled
Others Mirror, BLC (area configurable), region of interest (support 1 fixed region)
Network
Network Storage NAS (NFS, SMB/CIFS)
Detections Motion Detection
Alarms Video tampering, network disconnected, IP address conflicted
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP,
802.1X, QoS, IPv6, Bonjour
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, PoE (802.3af)
Power Consumption Max. 5 W/6.5 W (PoE)
Ingress Protection IP67
IR Range Up to 30 m
Dimensions 69.1 mm x 66 mm x 172.7 mm ( 2.7" x 2.6" x 6.8")
Weight 500 g (1.1 lb.)
Specification




Available Models
DS-2CD1021-I
Dimension

172.7 mm (6.8")
69.1 mm
(2.7")
66
mm
(
2
.
6
"
)
Φ 70 mm
(2.8")


Accessory

DS-1280ZJ-XS
Junction Box






050440170207
