DS-2CC52H1T-FITS(1.1mm)

* 5 Megapixel high-performance CMOS  * Analog HD output, up to 5MP resolution  * IR cut filter with auto switch  * OSD menu  * Built-in microphone  * Up the coax, Protocol: HIKVISION-C  DS-2CC52H1T-FITS  5MP IR Fisheye Camera  Key Features                    Specifications          Model DS-2CC52H1T-FITS  Camera  Image Sensor 5Mega Progressive Scan CMOS  Effective Pixels 2592(H)*1944(V)  Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR  Shutter Time 1/12.5s to 1/20,000s  Lens 1.1mm  Lens Mount M12  Day & Night ICR  Angle Adjustment Pan: 0°-30°; Tilt: 0°; Rotate: 0°  Synchronization Internal Synchronization  Video Frame Rate 5MP@12.5fps  HD Video Output 1-ch BNC Output  Audio In Built-in Mic  Audio Out 1-ch, BNC Output, (Output Impedance: 1KΩ)  Menu  Mounting Type Ceiling/Wall  Ceiling Mounting Display  Mode  Default, Panorama, 4 PTZ, Fisheye & 3 PTZ, Annular, Mini-fisheye & 1 PTZ, Annular & 2 PTZ  Wall Mounting Display  Mode  Default, Panorama, 4 PTZ, Fisheye & 3 PTZ, Panorama & 3 PTZ  D/N Mode Color/BW/AUTO  Functions Brightness, contrast, saturation, sharpness  General ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

* 5 Megapixel high-performance CMOS
* Analog HD output, up to 5MP resolution
* IR cut filter with auto switch
* OSD menu
* Built-in microphone
* Up the coax, Protocol: HIKVISION-C
DS-2CC52H1T-FITS

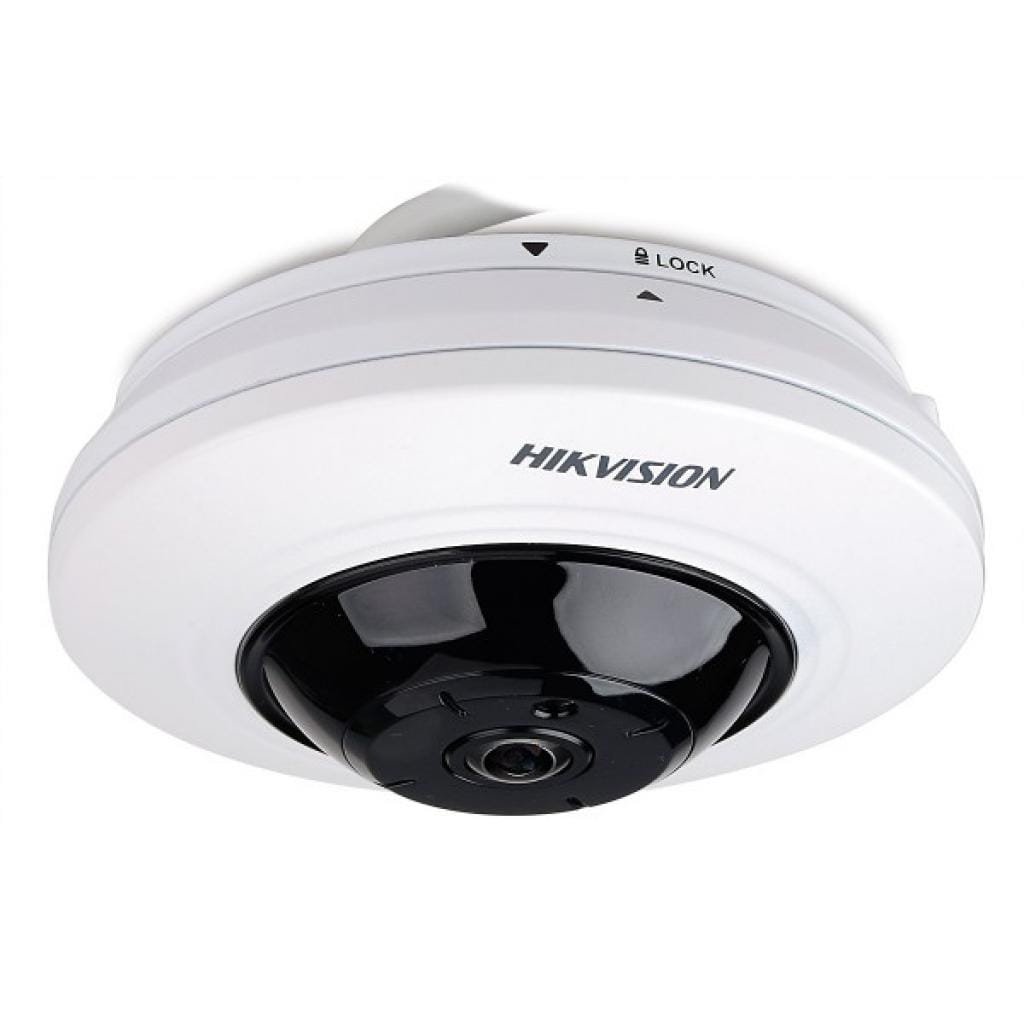

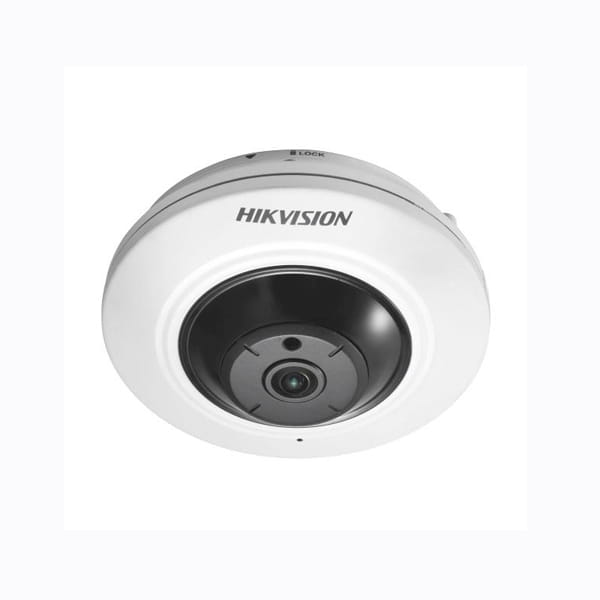

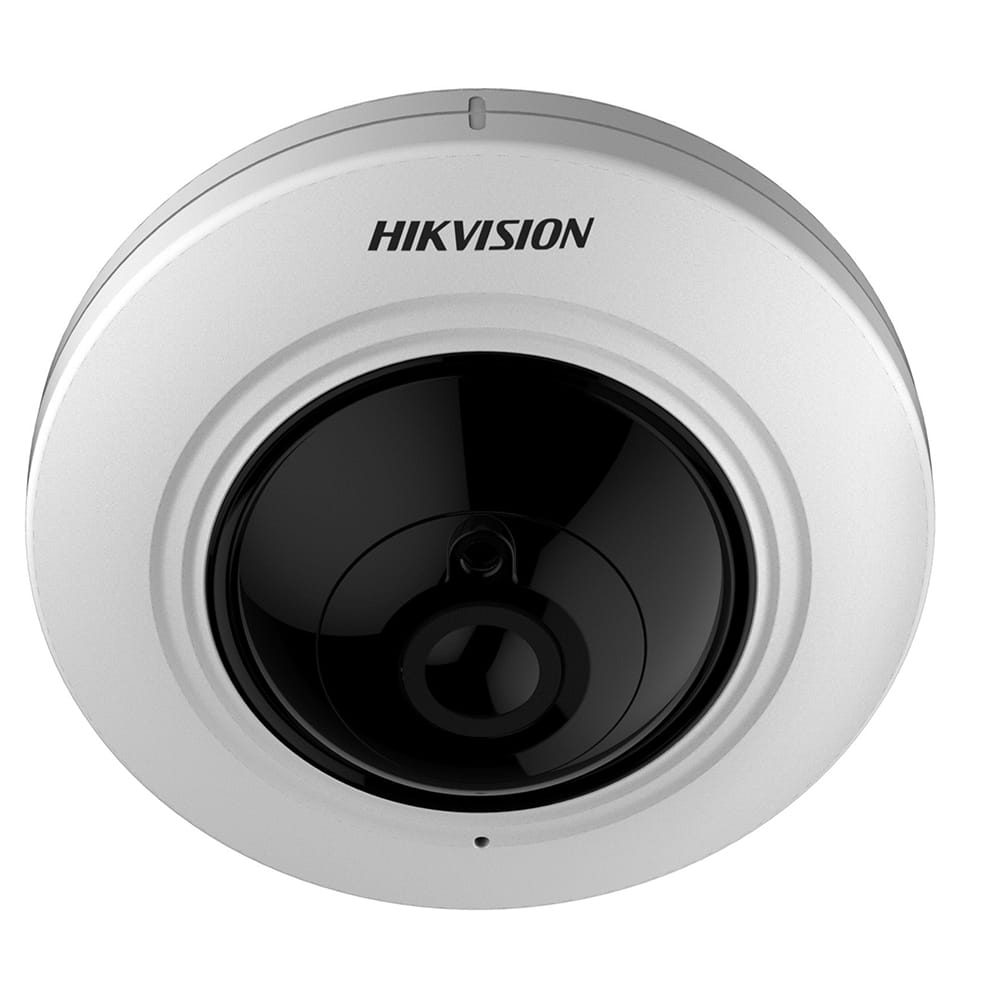

5MP IR Fisheye Camera
Key Features









Specifications




Model DS-2CC52H1T-FITS
Camera
Image Sensor 5Mega Progressive Scan CMOS
Effective Pixels 2592(H)*1944(V)
Min. illumination 0.01 Lux @ (F1.2,AGC ON), 0 Lux with IR
Shutter Time 1/12.5s to 1/20,000s
Lens 1.1mm
Lens Mount M12
Day & Night ICR
Angle Adjustment Pan: 0°-30°; Tilt: 0°; Rotate: 0°
Synchronization Internal Synchronization
Video Frame Rate 5MP@12.5fps
HD Video Output 1-ch BNC Output
Audio In Built-in Mic
Audio Out 1-ch, BNC Output, (Output Impedance: 1KΩ)
Menu
Mounting Type Ceiling/Wall
Ceiling Mounting Display
Mode
Default, Panorama, 4 PTZ, Fisheye & 3 PTZ, Annular, Mini-fisheye & 1 PTZ, Annular & 2 PTZ
Wall Mounting Display
Mode
Default, Panorama, 4 PTZ, Fisheye & 3 PTZ, Panorama & 3 PTZ
D/N Mode Color/BW/AUTO
Functions Brightness, contrast, saturation, sharpness
General
Operating Conditions -20 °C to 60 °C (-4 °F to 140 °F), Humidity 90% or less (non-condensing)
Power Supply DC12V±15%
Power Consumption 5.5W MAX
IR Range 10-20m
Communication Up the coax, Protocol: HIKVISION-C
Dimensions Φ120.4mmx54.5mm (Φ4.74”x2.14”)
Weight Approx. 350g (0.77lb)




Dimensions







DS-1299ZJ DS-1297ZJ DS-1294ZJ DS-1281ZJ-DM27
Pendent Bracket Pendent Bracket Wall Mount Bracket Inclined Bracket

DS-2CC52H1T-FITS
Order Models
20160510
Accessories
Φ120.41(4.74")
45.02(1.77")
47.47(1.87")
6.9(0.27")
54.52(2.15")
2-Φ4.36(0.17")
41
.75
(1
.65
")
22(0.87")
unit:mm
