DS-2CC52D9T-AVPIT3ZE(2.8-12mm)
Description
Key Features * 2.0 megapixel progressive scan CMOS * Analog HD output, up to 1080p resolution * 2.8 to 12 mm motorized vari-focal lens * OSD menu * 120 dB true WDR * Semi-auto focus * EXIR 2.0, up to 40 m IR distance * 1 alarm in/out * PoC * Up the Coax (HIKVISION-C) * IP67, IK10 DS-2CC52D9T-AVPIT3ZE 2MP Ultra Low-Light PoC Dome Camera Specification Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Effective Resolution 1920 (H) x 1080 (V) Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Slow Shutter Max.: 30 times Lens 2.8 mm to 12 mm Horizontal Field of View 32.1° to 98° Lens Mount Φ 14 Day & Night IR cut filter Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° Synchronization Internal synchronization WDR > 120 dB Menu AGC Support Day/Night Mode Auto/Color/BW (White & Black) White Balance ATW/AWC-SET/MANUAL Privacy Mask ON/OFF, 8 programmable privacy masks Motion 4 programmable mo...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Features
* 2.0 megapixel progressive scan CMOS
* Analog HD output, up to 1080p resolution
* 2.8 to 12 mm motorized vari-focal lens
* OSD menu
* 120 dB true WDR
* Semi-auto focus
* EXIR 2.0, up to 40 m IR distance
* 1 alarm in/out
* PoC
* Up the Coax (HIKVISION-C)
* IP67, IK10

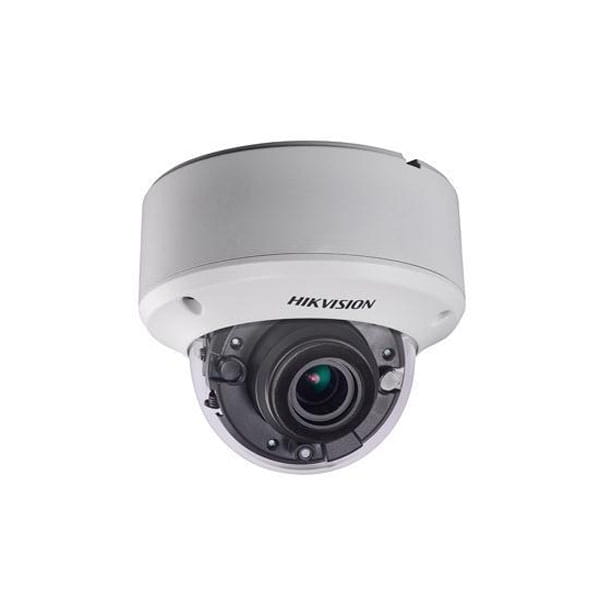

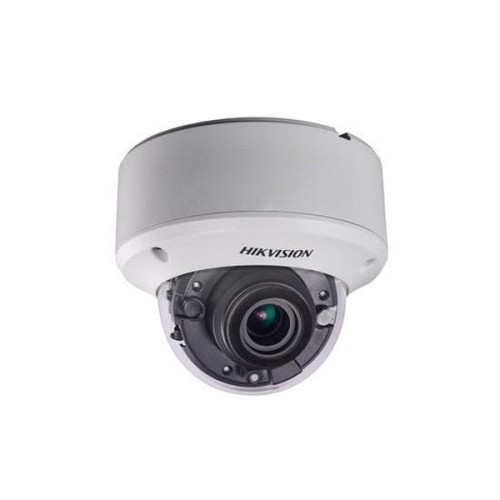

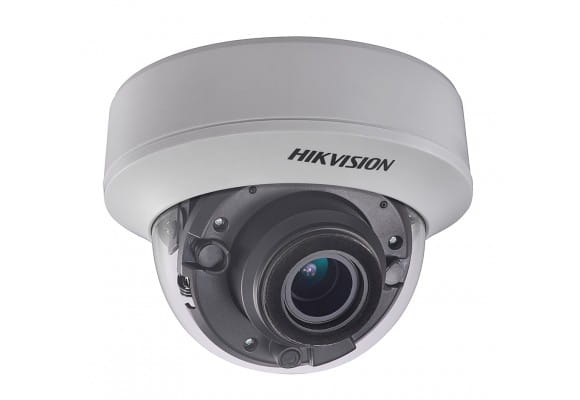

DS-2CC52D9T-AVPIT3ZE
2MP Ultra Low-Light PoC Dome Camera
Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Effective Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max.: 30 times
Lens 2.8 mm to 12 mm
Horizontal Field of View 32.1° to 98°
Lens Mount Φ 14
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355°
Synchronization Internal synchronization
WDR > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (White & Black)
White Balance ATW/AWC-SET/MANUAL
Privacy Mask ON/OFF, 8 programmable privacy masks
Motion 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
2D & 3D DNR ON/OFF
Voltage Detection Support
Functions Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene Indoor/outdoor/indoor 1/low light
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
Alarm 1 alarm in/out
General
Operating Conditions -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
Power Supply 24 V AC/12 V DC ±30%/PoC.at
Power Consumption Max.: 6 W
IR Distance Up to 40 m
Protection Level IP67, IK10
Communication Up the coax, Protocol: HIKVISION-C
Dimensions Φ 145.2 mm x 124.1 mm (7.1" x 4.9")
Weight Approx. 2000 g (4.4 lb.)
Order Model
DS-2CC52D9T-AVPIT3ZE
* PoC function is only available when cooperating with DS-1TPXXX.
Dimensions
4
6
m
m
(
1
.
8
'
'
)
83.5 mm (3.3'')
46 mm (1.8'')
Φ
1
4
5
.
2
m
m
(
7
.
1
'
'
)
1
2
4
.
1
m
m
(
4
.
9
'
'
)
85.3 mm (3.36")
85.3 mm (3.36")
83.5 mm (3.3'')
8
5
.
3
m
m
(
3
.
3
6
"
)
8
3
.
5
m
m
(
3
.
3
'
'
)
46 mm (1.8'')
8
5
.
3
m
m
(
3
.
3
6
"
)
8
3
.
5
m
m
(
3
.
3
'
'
)
4
6
m
m
(
1
.
8
'
'
)
Accessories
DS-1271ZJ-I40
Pendant Mounting Bracket
DS-1273ZJ-I40
Wall Mounting Bracket
DS-1241ZJ
In-Ceiling Mounting Bracket
DS-1240ZJ
Inclined Base Mounting Bracket
