DS-2CC51A2P-DG1

www.hikvision.com  Key features  Dimensions  Accessories      DS-2CC51A2P(N)-DG1    700 TVL Mini Camera      DS-2CC51A2P(N)-DG1  Camera  Image Sensor 1/3” SONY CCD  Signal System PAL/NTSC  Effective Pixels  PAL: 976 (H) x 582 (V)  NTSC: 976 (H) x 494 (V)  Min. Illumination  0.002 Lux @ (F1.4, AGC ON)  0.006 Lux @ (F2.5, AGC ON)  Shutter speed  PAL: 1/50 s to 1/100,000 s  NTSC: 1/60 s to 1/100,000 s  Lens  3.7 mm @ F2.5 (2.8 mm optional)  Angle of view: 70° (3.7 mm)  Lens Mount ...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

www.hikvision.com
Key features
Dimensions
Accessories


DS-2CC51A2P(N)-DG1

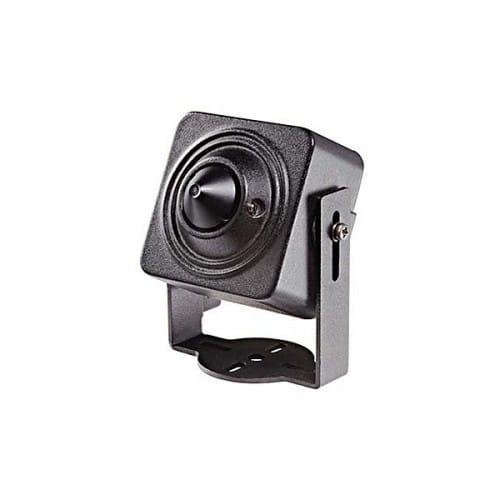

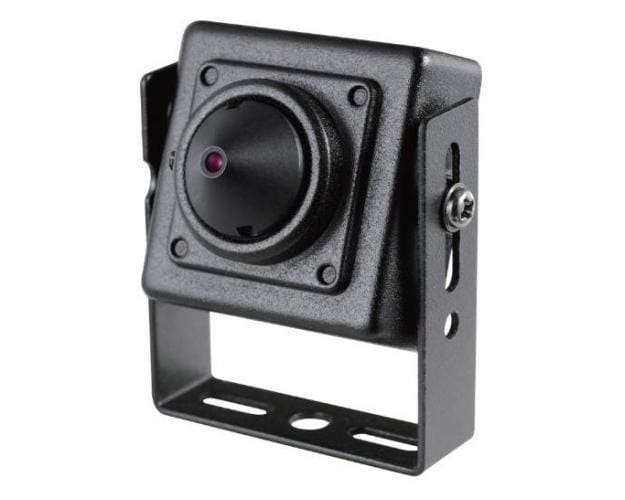

700 TVL Mini Camera


DS-2CC51A2P(N)-DG1
Camera
Image Sensor 1/3” SONY CCD
Signal System PAL/NTSC
Effective Pixels
PAL: 976 (H) x 582 (V)
NTSC: 976 (H) x 494 (V)
Min. Illumination
0.002 Lux @ (F1.4, AGC ON)
0.006 Lux @ (F2.5, AGC ON)
Shutter speed
PAL: 1/50 s to 1/100,000 s
NTSC: 1/60 s to 1/100,000 s
Lens
3.7 mm @ F2.5 (2.8 mm optional)
Angle of view: 70° (3.7 mm)
Lens Mount M12
Day & Night Electronic
Horizontal Resolution 700 TVL
Synchronization Internal synchronization
Video Output 1Vp-p composite output (75 Ω/BNC)
S/N Ratio More than 62 dB
General
Working Temperature/Humidity
-30 °C - 60 °C (-22 °F - 140 °F)
Humidity 90% or less (non-condensing)
Power Supply 12 V DC ± 10%
Power Consumption Max. 1 W
Dimensions 30x30x19 mm
Weight 200 g (0.44 lbs)
Available models
PAL: DS-2CC51A2P-DG1
NTSC: DS-2CC51A2N-DG1

1/3" SONY CCD
700TVL Horizontal Resolution
Electronic Day/Night
Super low illumination
Compact Design

62

1/3”
CCD
Low Light

POWE R
12 VD C

700
•
•
•
•
•
