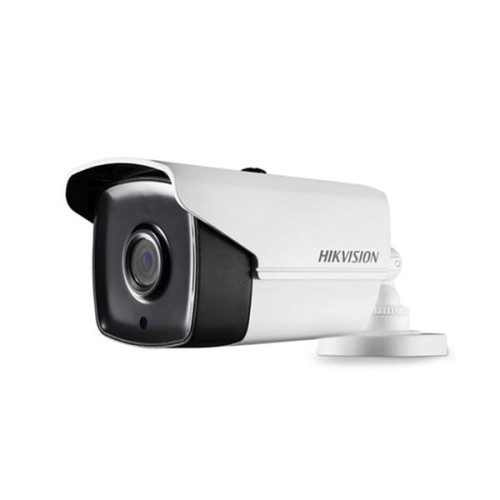

DS-2CC12D9T-IT3E(3.6mm)
Description
Key Features * 2.0 megapixel progressive scan CMOS * Analog HD output, up to 1080p resolution * OSD menu * 120 dB true WDR * EXIR 2.0, up to 40 m IR distance * PoC * Up the Coax (HIKVISION-C) * IP67 DS-2CC12D9T-IT3E 2MP Ultra Low-Light PoC Bullet Camera Specification Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Slow Shutter Max.: 30 times Lens 3.6 mm (Optional 2.8 mm , 6 mm) Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm) Lens Mount M 12 Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360° Synchronization Internal synchronization WDR > 120 dB Menu AGC Support Day/Night Mode Auto/Color/BW (White & Black) White Balance ATW/AWC-SET/MANUAL Privacy Mask ON/OFF, 8 programmable privacy masks Motion 4 programmable motion areas Backlight Compensation WDR/BLC/HLC/OFF 2D & 3D DNR ON/OFF ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Features
* 2.0 megapixel progressive scan CMOS
* Analog HD output, up to 1080p resolution
* OSD menu
* 120 dB true WDR
* EXIR 2.0, up to 40 m IR distance
* PoC
* Up the Coax (HIKVISION-C)
* IP67
DS-2CC12D9T-IT3E
2MP Ultra Low-Light PoC Bullet Camera
Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max.: 30 times
Lens 3.6 mm (Optional 2.8 mm , 6 mm)
Horizontal Field of View 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
Lens Mount M 12
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (White & Black)
White Balance ATW/AWC-SET/MANUAL
Privacy Mask ON/OFF, 8 programmable privacy masks
Motion 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
2D & 3D DNR ON/OFF
Voltage Detection Support
Functions Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Scene Indoor/outdoor/indoor1/low light
Interface
Video Output 1 HD analog output/1 Vp-p composite output (75Ω/BNC)
General
Operating Conditions -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
Power Supply 12 V DC ±30%/PoC.af
Power Consumption Max.: 4 W
IR Distance Up to 40 m
Ingress Protection IP67
Communication Up the coax, Protocol: HIKVISION-C
Dimensions 86.7 mm x 81.6 mm x 226 mm (3.4" x 3.2" x8.9")
Weight Approx. 800 g (1.76 lb.)
Order Model
DS-2CC12D9T-IT3E
* PoC function is only available when cooperating with DS-1TPXXX.
Dimensions
86.7 mm (3.4")
226 mm (8.9")
81
.6
mm
(3
.2
")
Φ 55 mm (2.2")
3-Φ 4.2 mm
(0.17")
120°
120°
