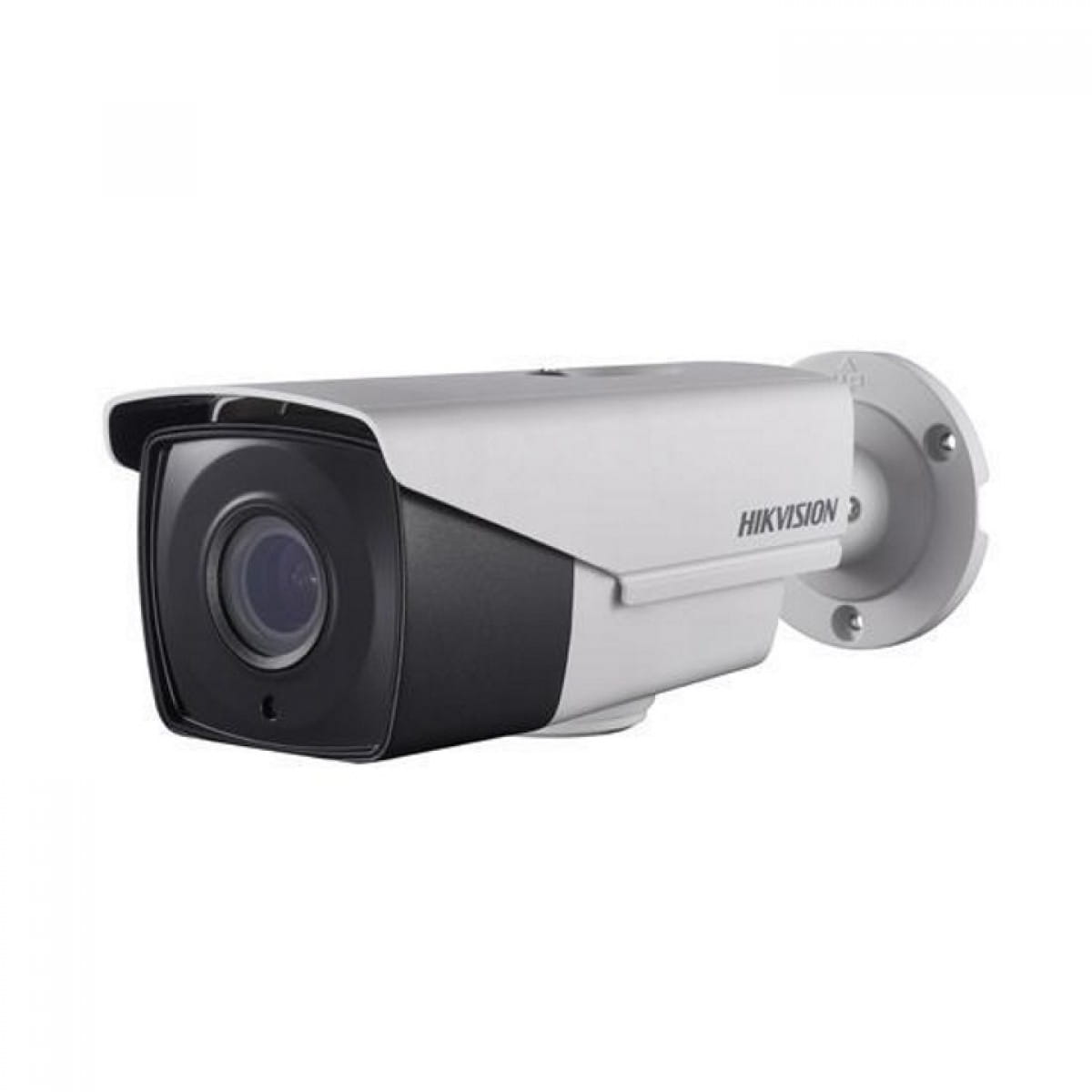

DS-2CC12D9T-AIT3ZE(2.8-12mm)
Description
Key Features * 2 MP high performance CMOS * Ultra-Low Light Pro * Auto focus, 2.8 mm to 12 mm motorized vari-focal lens * 120 dB true WDR, 3D DNR * EXIR 2.0, smart IR, up to 40 m IR distance * Dual outputs: 1 HD analog output/1 CVBS output * PoC.at, smart voltage detection * 1 alarm in/out * IP67 * Up the Coax (HIKVISION-C) DS-2CC12D9T-AIT3ZE 2 MP Ultra-Low Light PoC Bullet Camera Specification Camera Image Sensor 2.0 megapixel progressive scan CMOS Signal System PAL/NTSC Effective Resolution 1920 (H) x 1080 (V) Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR Shutter Time PAL: 1/25 s to 1/50,000 s NTSC: 1/30 s to 1/50,000 s Slow Shutter Max.: 30 times Lens 2.8 mm to 12 mm, motorized vari-focal lens Horizontal Field of View 32.1° to 98° Lens Mount Φ14 Auto Iris Support Day & Night IR cut filter Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360° Synchronization Internal synchronization WDR > 120 dB Menu AGC Support Day/Night Mode Auto/Color/BW (White & Black) White Balance ATW/AWC-...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
Key Features
* 2 MP high performance CMOS
* Ultra-Low Light Pro
* Auto focus, 2.8 mm to 12 mm motorized vari-focal lens
* 120 dB true WDR, 3D DNR
* EXIR 2.0, smart IR, up to 40 m IR distance
* Dual outputs: 1 HD analog output/1 CVBS output
* PoC.at, smart voltage detection
* 1 alarm in/out
* IP67
* Up the Coax (HIKVISION-C)
DS-2CC12D9T-AIT3ZE
2 MP Ultra-Low Light PoC Bullet Camera
Specification
Camera
Image Sensor 2.0 megapixel progressive scan CMOS
Signal System PAL/NTSC
Effective Resolution 1920 (H) x 1080 (V)
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
Min. Illumination 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time
PAL: 1/25 s to 1/50,000 s
NTSC: 1/30 s to 1/50,000 s
Slow Shutter Max.: 30 times
Lens 2.8 mm to 12 mm, motorized vari-focal lens
Horizontal Field of View 32.1° to 98°
Lens Mount Φ14
Auto Iris Support
Day & Night IR cut filter
Angle Adjustment (Bracket) Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
Synchronization Internal synchronization
WDR > 120 dB
Menu
AGC Support
Day/Night Mode Auto/Color/BW (White & Black)
White Balance ATW/AWC-SET/MANUAL
Privacy Mask ON/OFF, 8 programmable privacy masks
Motion Detection 4 programmable motion areas
Backlight Compensation WDR/BLC/HLC/OFF
2D & 3D DNR ON/OFF
Voltage Detection Support
Scene Indoor/outdoor/indoor1/low light
Functions Defog, Mirror, Defective Pixel Correction, Sharpness, Camera Title
Interface
Video Output 1 HD analog output/1 CVBS output (75Ω/BNC)
Alarm 1 alarm in/out
General
Operating Conditions -40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
Power Supply 24 VAC/12 VDC ±30%/PoC.at
Ingress Protection IP67
Material Metal
IR Distance Up to 40 m
Power Consumption Max.: 7.5 W
Communication Up the coax, Protocol: HIKVISION-C
Dimensions 92 mm x 85.3 mm x269.6 mm (3.62" x 3.36" x 10.61")
Weight Approx. 700 g (1.54 lb.)
Order Model
DS-2CC12D9T-AIT3ZE
Dimensions
92 mm (3.6")
8
9
m
m
(
3
.
5
"
)
269.6 mm (10.6")
155.6 mm (6.2")
241.3 mm (9.5")
3-Φ 4.3 mm
( 0.17")
Φ 85.3 (3.36")
Φ70 mm
(2.76")
120°120°
3 x 10-24UNC-2A
