DS-2AE5225TI-A(E)

Availability: 0

Price: €646.68 646.68

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 301205352

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

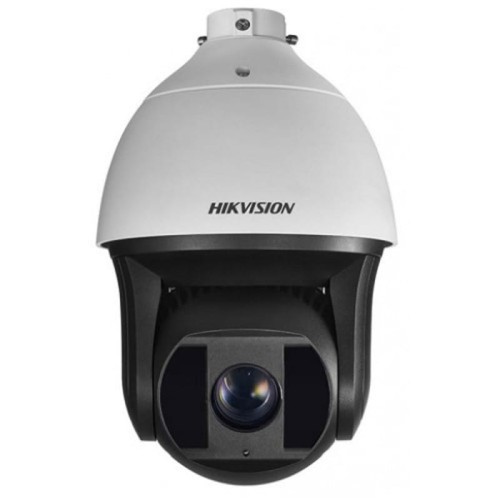

Hikvision DS-2AE5225TI-A(C) IR Turbo 5-Inch Speed
Dome is able to capture high quality images in poor light
environment. The black anti-reflective glass increases the
luminousness which helps IR distance reach up to 150 m.
The embedded CMOS chip makes WDR, and real-time
1920 x 1080 resolution possible. With the help of the 25x
optical zoom, and IR cut filter, the camera offers more
details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 25x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* Up to 150 m IR distance
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video outputs

DS-2AE5225TI-A(C)
2 MP IR Turbo 5-Inch Speed Dome

Specification
Camera
Model DS-2AE5225TI-A(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB

Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 120 mm, 25x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 57.6° to 2.5° (wide to tele)
Vertical field of view: 34.4° to 1.4° (wide to tele)
Diagonal field of view: 64.5° to 2.9° (wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.6 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 120°/s
Pan preset speed: 120°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes

Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Preset Freezing Yes
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Infrared
IR Distance Up to 150 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max.30 W (IR:10 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension Ø 208 mm x 305 mm (Ø 8.19" x12.01")
Weight (approx.) 3.3 kg (7.28 lb.)

Order Model
DS-2AE5225TI-A(C)
Dimensions
Ø

2
0
8

m
m

(
8
.
1
9
"

)
Ø

3
0
5

m
m

(
1
2
.
0
1
"

)

Accessories

0304401080410

DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1005KI
USB Joy-stick
DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
