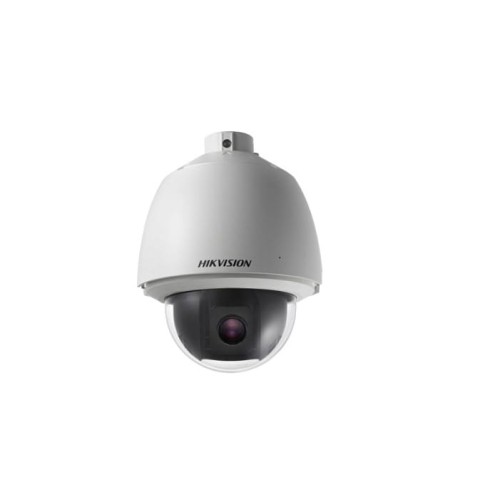

DS-2AE5225T-A(E)

Availability: 0

Price: €532.68 532.68

excl. 23.00% TAX, excl. shipping costs

quantity szt.

product unavailable

add to wish list

Vendor:

Product code: 301205348

ask about product or pricing

Description

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

Hikvision DS-2AE5225T-A(D) Turbo 5-Inch Speed Dome is
able to capture high quality images in poor light
environment. The embedded CMOS chip makes WDR,
and real-time 1920 x 1080 resolution possible. With the
help of the 25x optical zoom, and IR cut filter, the camera
offers more details over an expansive area
.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 25x optical zoom, 16x digital zoom
* 120 dB true WDR (Wide Dynamic Range)
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video output

DS-2AE5225T-A(D)
2 MP Turbo 5-Inch Speed Dome

Specification
Camera
Model DS-2AE5225T-A(D)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Reginal Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 120 mm, 25x Optical
Aperture Range F 1.6 to F 3.5
Field of View
Horizontal field of view: 57.6° to 2.5° (wide to tele)
Vertical field of view: 34.4° to 1.4° (wide to tele)
Diagonal field of view: 64.5° to 2.9° (wide to tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.6 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 250°/s
Pan preset speed: 250°/s
Tilt Range -5° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 150°/s
Tilt preset speed: 150°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Support

Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Preset Freezing Support
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
Alarm 2 alarm inputs, 1 alarm output
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
24 VAC
Max.24 W
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
IK10
Mounting Various mounting modes optional
Dimension Ø 220 mm x326 mm (8.66" x 12.83")
Weight (approx.) 3 kg (6.61 Ib.)

Order Model
DS-2AE5225T-A(D)
Dimension
3
2
6

m
m

(
1
2
.
8
3
"

)
Ø 156 mm (Ø 6.14" )
Ø 220 mm (8.66" )

Accessory

0305101091126

DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
