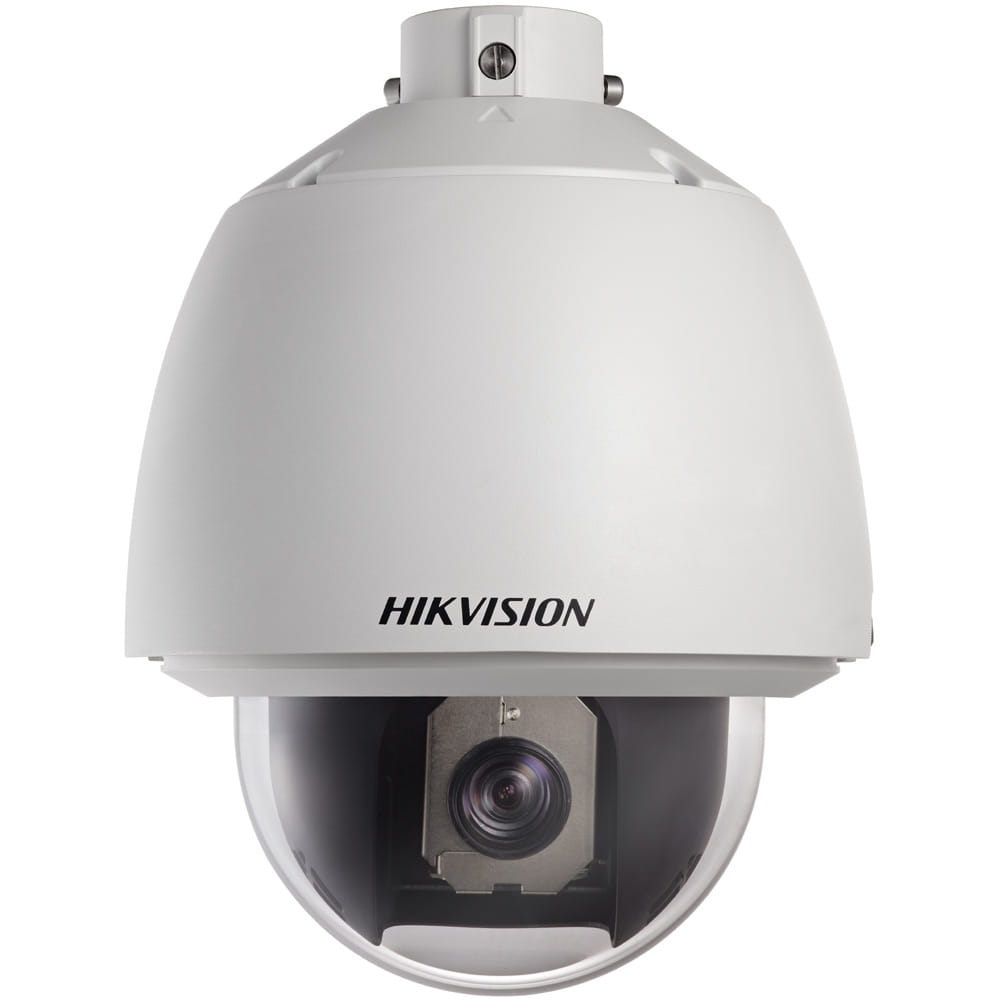

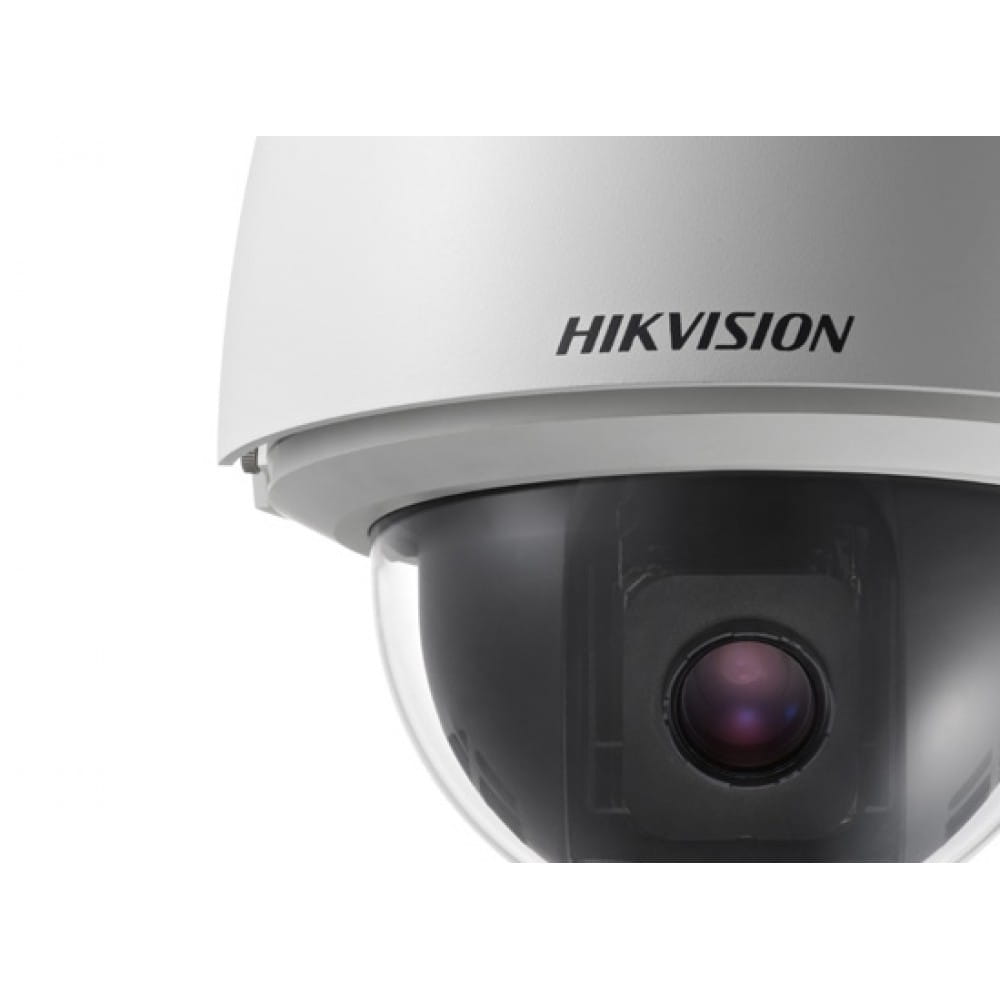

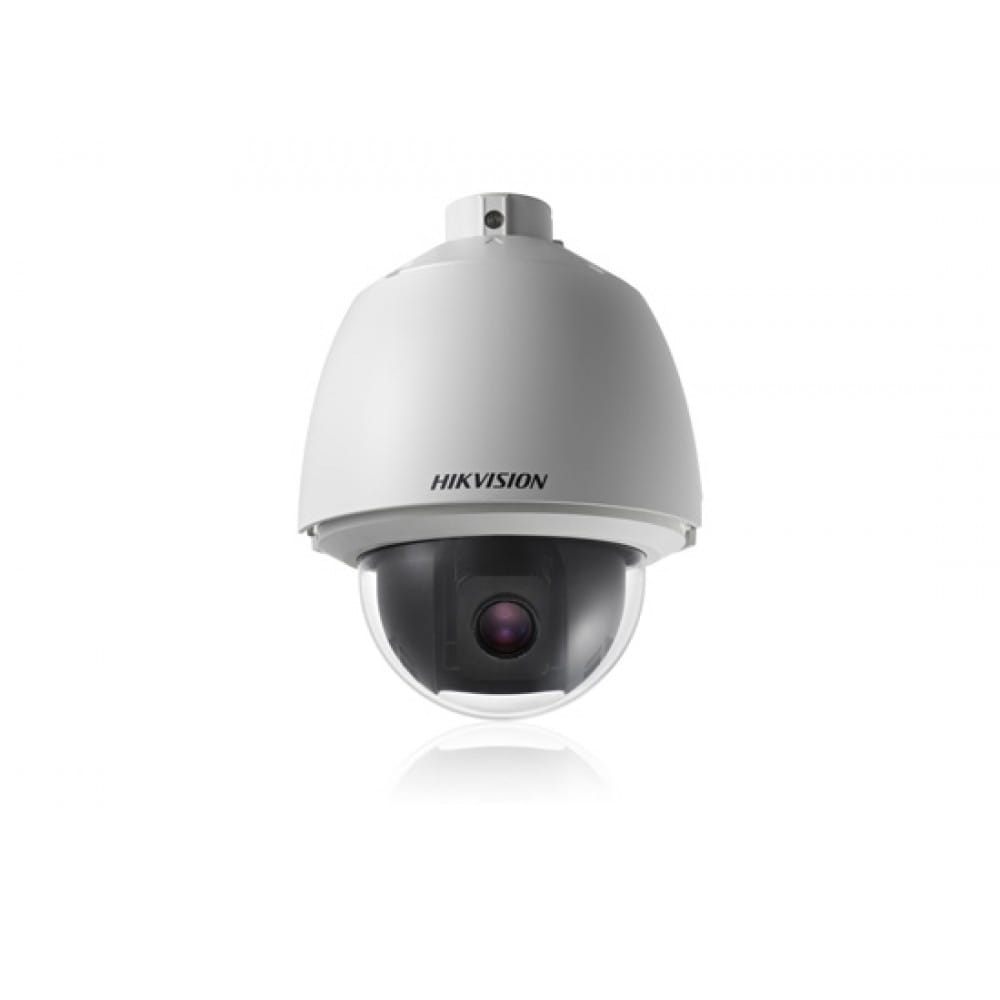

DS-2AE5154-A
Description
www.hikvision.com Key features Dimensions Accessories DS-2AE5154-A Ⅱt Ⅱt Ⅱt Ⅱt Ⅱt Ⅱt Ⅱt 1/4” CCD High resolution of 540TVL (Color) / 600TVL (B/W) True Day/Night 23x Optical Zoom (3.84 - 88.32mm) DNR, Digital WDR 3D intelligent positioning function IP66 Weatherproof DS-2AE5154-A(Outdoor) Camera Image Sensor 1/4’’ CCD Effective PixelPAL:752(H)x582(V), NTSC:768(H)x494(V) Horizontal ResolutionColor: 540 TVL, B/W: 600 TVL Signal System PAL /NTSC Min.IlluminationColor: 0.1Lux@( F1.6,AGC ON) , B/W: 0.01Lux@( F1.6,AGC ON) White BalanceAuto / Manual / ATW AGCAuto / Manual S / N RatioⅡⅡⅡ Ⅱ5Ⅱ0ⅡdⅡB Shutter TimePAL: 1/50-1/10,000s , NTSC: 1/60-1/10,000s Day & NightIR Cut Filter Privacy Masking 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen Focus ModelAuto / Semiautomatic / Manual Lens Focal Length3.84-88.32mm, 23X Zoom SpeedApprox.3.0s(Optical Wide-Tele) Angle of View50.2-2.44degree(Wide-Tele) Min. Working Distance10-1500mm (Wide-Tele) Aperture F1.6 Pan and Tilt Pan Range360° endless Pan SpeedPan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s Ti...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
www.hikvision.com
Key features
Dimensions
Accessories
DS-2AE5154-A
Ⅱt
Ⅱt
Ⅱt
Ⅱt
Ⅱt
Ⅱt
Ⅱt
1/4” CCD
High resolution of 540TVL (Color) / 600TVL (B/W)
True Day/Night
23x Optical Zoom (3.84 - 88.32mm)
DNR, Digital WDR
3D intelligent positioning function
IP66 Weatherproof
DS-2AE5154-A(Outdoor)
Camera
Image Sensor 1/4’’ CCD
Effective PixelPAL:752(H)x582(V), NTSC:768(H)x494(V)
Horizontal ResolutionColor: 540 TVL, B/W: 600 TVL
Signal System PAL /NTSC
Min.IlluminationColor: 0.1Lux@( F1.6,AGC ON) , B/W: 0.01Lux@( F1.6,AGC ON)
White BalanceAuto / Manual / ATW
AGCAuto / Manual
S / N RatioⅡⅡⅡ Ⅱ5Ⅱ0ⅡdⅡB
Shutter TimePAL: 1/50-1/10,000s , NTSC: 1/60-1/10,000s
Day & NightIR Cut Filter
Privacy Masking
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus ModelAuto / Semiautomatic / Manual
Lens
Focal Length3.84-88.32mm, 23X
Zoom SpeedApprox.3.0s(Optical Wide-Tele)
Angle of View50.2-2.44degree(Wide-Tele)
Min. Working Distance10-1500mm (Wide-Tele)
Aperture F1.6
Pan and Tilt
Pan Range360° endless
Pan SpeedPan Manual Speed: 0.1°-250°/s, Pan Preset Speed: 300°/s
Tilt Range-5°-90° (Auto Flip )
Tilt SpeedTilt Manual Speed: 0.1°-150°/s, Tilt Preset Speed: 200°/s
Proportional ZoomRotation speed can be adjusted automatically according to zoom multiples
Number of Preset255
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off MemorySupport
Park ActionPreset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position DisplayOn / Off
CompassSupport , the north can be set
Scheduled Task
Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan /
Day / Night
Input/ Output
Monitor OutputⅡ1Ⅱ.Ⅱ0Ⅱ ⅡVⅡ[ⅡpⅡ-ⅡpⅡ]Ⅱ Ⅱ/Ⅱ Ⅱ7Ⅱ5ⅡⅡⅡ,Ⅱ ⅡNⅡTⅡSⅡCⅡ Ⅱ(ⅡoⅡrⅡ ⅡPⅡAⅡLⅡ)Ⅱ ⅡcⅡoⅡmⅡpⅡoⅡsⅡiⅡtⅡeⅡ,Ⅱ ⅡBⅡNⅡC
General
Menu LanguageEnglish
RS-485 ProtocolsHIKVISION, Pelco-P, Pelco-D, self-adaptive
Power Supply24VAC/1.5A
Power ConsumptionOutdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off)
Working Temperature /
Humidity
-30 -65(-22 -149 )(outdoor dome)
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
MountingVarious mounting modes optional
Dimensions 220x305mm (8.66”x12.00”)(Outdoor)
Weight (approx.)5Kg (11.02Ibs)
Mount Option
Long-arm wall mount: DS-1614ZJ; Indoor short-arm wall mount: DS-1615ZJ
Corner mount: DS-1633ZJ; Pole Mount: DS-1622ZJ; Power box mount:DS-1634ZJ
Unit: mm
DS-1614ZJ
(Long-arm Wall Mount Bracket)
DS-1634ZJ
Wall Mount
DS-1662ZJ
Pendant Mount
Low Light
1/4
3D
IP66
Privacy Masking
23
Cost-effective Speed Dome
