DS-2AE5123T-A3
Description
www.hikvision.com 35 NETWORK PTZ DOME ANALOG ATM DVR VIDEO ENCODER CARD DVR NVR NETWORK STORAGE DS-2AE5123T-A(3) Key features Dimensions Accessories Available models 720P Analog PTZ Dome Camera • 1.3MP CMOS Image Sensor • 720P Video Output • 23X optical zoom, 16X digital zoom • Up the Coax function • Privacy Masking, 3D DNR • 3D intelligent positioning OutdoorIndoorEmbedded Bore Size Unit: mm DS-2AE5123T-A, 24VAC, outdoor DS-2AE5123T-A3, 24VAC, indoor DS-2AE5123T-A(3) Camera Image Sensor 1 / 3’’ CMOS Effective Pixel Max. Image Resolution: 1280(H) x 720(v) Signal System PAL / NTSC Min. Illumination Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON) White Balance Auto / Manual ...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
www.hikvision.com
35
NETWORK
PTZ DOME
ANALOG
ATM DVR
VIDEO
ENCODER
CARD
DVR
NVR
NETWORK
STORAGE
DS-2AE5123T-A(3)
Key features
Dimensions
Accessories
Available models

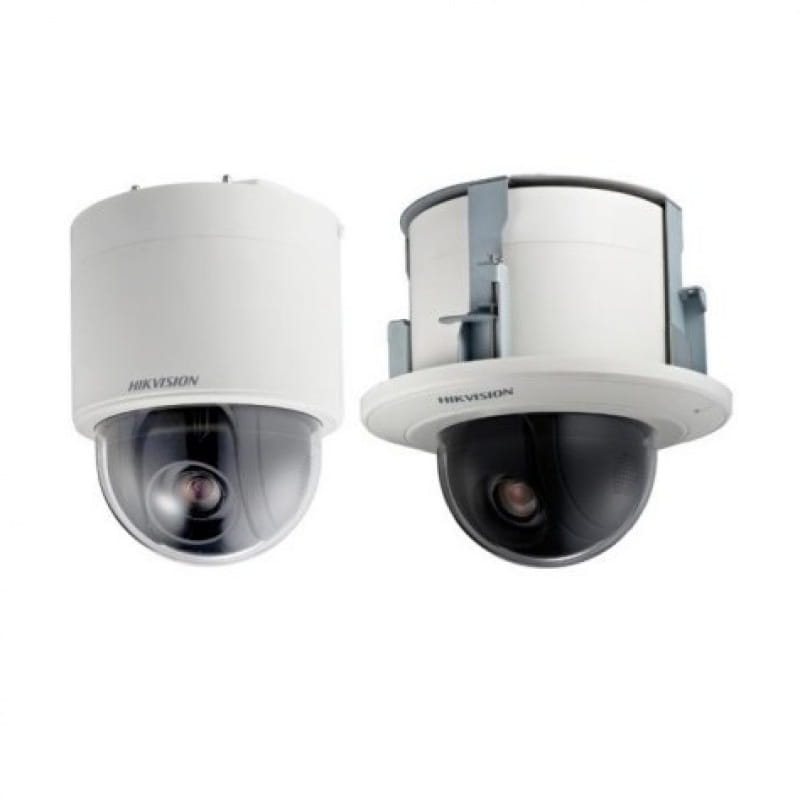

720P Analog PTZ Dome Camera
• 1.3MP CMOS Image Sensor
• 720P Video Output
• 23X optical zoom, 16X digital zoom
• Up the Coax function
• Privacy Masking, 3D DNR
• 3D intelligent positioning
OutdoorIndoorEmbedded
Bore Size
Unit: mm
DS-2AE5123T-A, 24VAC, outdoor

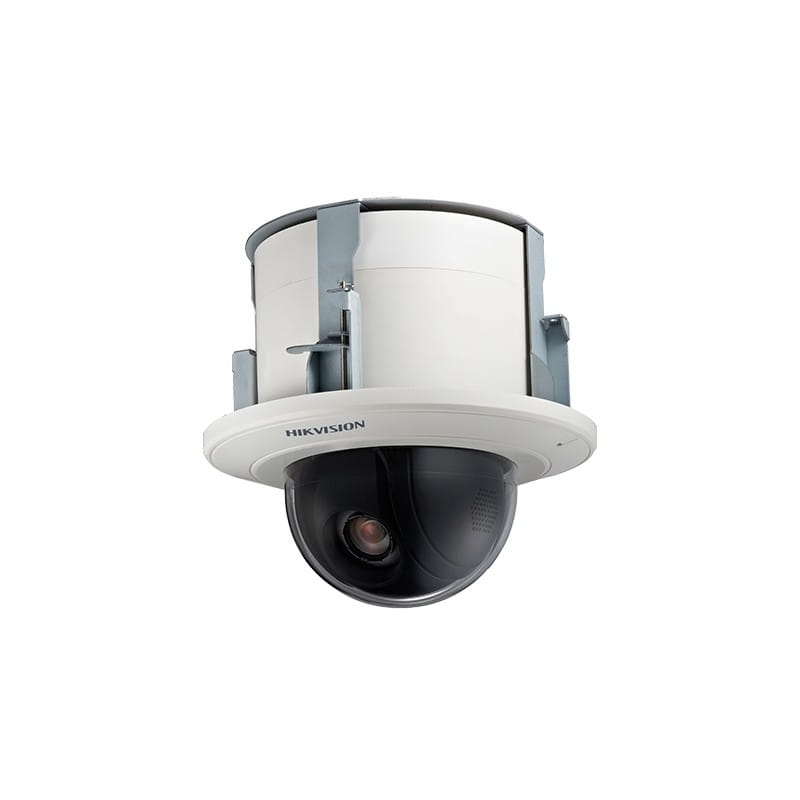

DS-2AE5123T-A3, 24VAC, indoor
DS-2AE5123T-A(3)
Camera
Image Sensor 1 / 3’’ CMOS
Effective Pixel Max. Image Resolution: 1280(H) x 720(v)
Signal System PAL / NTSC
Min. Illumination Color: 0.02Lux@(F1.6,AGC ON) B/W: 0.002Lux@(F1.6,AGC ON)
White Balance Auto / Manual / ATW / Indoor / Outdoor
AGC Auto / Manual
S / N Ratio ≥50dB
3D DNR Support
Backlight Compensation Support
Shutter Time PAL: 1-1 / 10,000s ; NTSC: 1-1 / 10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the
same video screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 4-92mm, 23X
Zoom Speed Approx.3.0s(Optical Wide-Tele)
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10-1000mm (Wide-Tele)
Aperture F1.6-F3.7
Pan and Tilt
Pan Range 360° endless
Pan Speed Pan Manual Speed: 0.1°-250° / s,; Pan Preset Speed: 300° / s
Tilt Range -5°-90° (Auto Flip )
Tilt Speed Tilt Manual Speed: 0.1°-150° / s,; Tilt Preset Speed: 200° / s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off Memory Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
PTZ Position Display On / Off
Preset Freezing Support
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Frame Scan / Random scan / Panorama scan
RS-485 communication
diagnosis
Support
Input / Output
Monitor Output 1 turbo HD720p output; 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface Half-duplex mode; Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function HIKVISION_C; *Need UTC controller if DVR don’t support UTC function
General
Menu Language English, Chinese
Power 24VAC; Outdoor dome: Max. 20W (Heater On), Max. 12W(Heater Off); Indoor dome: Max.12W
Working Temperature / Humidity
-30 °C-65°C(-22°F-149°F)(outdoor dome) / -10°C-50°C(14°F-122°F)(indoor dome )
90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000V lightning protection, surge protection and voltage transient protection
Impact Protection Outdoor
IEC60068-275Eh, 20J; EN50102, up to IK10
Indoor: IEC60068-275Eh, 10J; EN50102, up to IK09
Mounting Various mounting modes optional
Dimensions
φ 220x305mm ( φ 8.66”x12.00”)(Outdoor); φ 183.4x243mm( φ 7.22”x9.56”) (Indoor)
φ 245x236mm( φ 9.65”x9.29”) (In-ceiling)
Weight (approx.) 3Kg (6.61 Ibs)
Mount Option (only suitable for
outdoor dome)
Long-arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner; Pole Mount: DS-1602ZJ-
pole; Power box mount:DS-1602ZJ-box;Swan-neck mount: DS-1619ZJ
DS-1602ZJ-Box DS-1619ZJDS-1602ZJ-CornerDS-1602ZJ DS-1602ZJ-Pole
