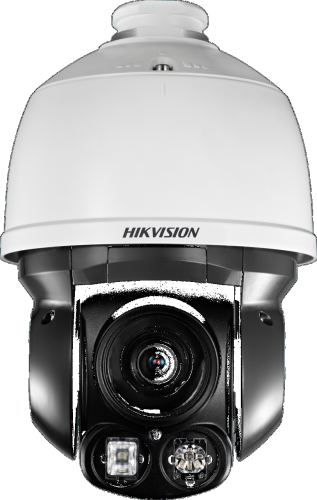

DS-2AE4562-A

©2006 – 2013 by HIKVISION. All rights reserved.  1    DS-2AE4562 series  E series Mini PTZ Dome Analog Camera    Key features  IR function:   0 Lux minimum illumination   EXIR technology, up to 50m IR distance   IR light MTBF reaching up to 30,000 hours  System function:   SONY high performance CCD   ±0.1° Preset Accuracy   Self-adaptive to HIKVISION, Pelco-P/D protocol   3D intelligent positioning function   Power-off memory function: restore PTZ & Lens status after reboot   Built-in temperature sensor, with display of internal temperature   RS-485 communication diagnosis capability   Manchester code communication diagnosis capability   Scheduled PTZ movement   Password protection   Camera title programmable   Zone Scanning   IP66(outdoor)   3D DNR  Camera function:   Auto iris, auto focus, auto white balance, backlight compensation and auto/manual day & night switch   Privacy masks programmable  PTZ function:   360° endless pan range and -10°-90° tilt range          ©2006 – 2013 by HIKVISION. All rights reserv...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

©2006 – 2013 by HIKVISION. All rights reserved.
1

DS-2AE4562 series
E series Mini PTZ Dome Analog Camera

Key features
IR function:
 0 Lux minimum illumination
 EXIR technology, up to 50m IR distance
 IR light MTBF reaching up to 30,000 hours
System function:
 SONY high performance CCD
 ±0.1° Preset Accuracy
 Self-adaptive to HIKVISION, Pelco-P/D protocol
 3D intelligent positioning function
 Power-off memory function: restore PTZ & Lens status after reboot
 Built-in temperature sensor, with display of internal temperature
 RS-485 communication diagnosis capability
 Manchester code communication diagnosis capability
 Scheduled PTZ movement
 Password protection
 Camera title programmable
 Zone Scanning
 IP66(outdoor)
 3D DNR
Camera function:
 Auto iris, auto focus, auto white balance, backlight compensation and auto/manual day & night switch
 Privacy masks programmable
PTZ function:
 360° endless pan range and -10°-90° tilt range




©2006 – 2013 by HIKVISION. All rights reserved.
2

 160°/s Pan Preset Speed and 120°/s Tilt Preset Speed
 0.1°-160°/s Manual Pan Speed and 0.1°-120°/s Manual Tilt Speed
 256 presets programmable; preset image freezing capability
 8 patrols, up to 32 presets per patrol
 4 patterns, with the total recording time not less than 10 minutes
 Proportional zoom function
 Park action: auto call up of PTZ movement, after a defined time of inactivity
Application Scenarios
It can be widely applied to places requiring wide-area monitoring display, such as streets, stations, large venues, outside of
residential areas, etc.
Specifications
Model
Parameter
DS-2AE4562-A, PAL, outdoor, 24VAC
DS-2AE4562N-A, NTSC, outdoor, 24VAC
DS-2AE4562-A3, PAL, indoor, 24VAC
DS-2AE4562N-A3, NTSC, indoor, 24VAC
E series Mini PTZ Dome Analog Camera
Camera
Image Sensor 1/3" SONY Interline Transfer Exview HAD-ⅡCCD
Effective Pixel
PAL:976(H)x582(V)
NTSC:976(H)x494(V)
Horizontal
Resolution
Color: 650 TVL
B/W: 700 TVL
Signal System PAL /NTSC
Min. Illumination
Color: 0.1Lux/ (F1.6 AGC ON)
B/W: 0.01Lux/(F1.6 AGC ON)
0 lux with IR
White Balance Auto/ATW/Indoor/Outdoor/One push
AGC Auto / Manual
S / N Ratio ≥ 50dB
3D DNR High/Medium/Low/off
BLC On / Off
Shutter Time
PAL: 1/1-1/10,000s
NTSC: 1/1-1/10,000s
Day & Night IR Cut Filter
Digital Zoom 16x
Privacy Mask
8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video
screen
Focus Model Auto / Semiautomatic / Manual
Lens
Focal Length 3.8-45.6mm,12x
Zoom Speed Approx.2s(Optical Wide-Tele)



©2006 – 2013 by HIKVISION. All rights reserved.
3

Angle of View 50.69-4.5degree(Wide-Tele)
Min. Working
Distance
10-1500mm(Wide-Tele)
Aperture Range F1.6-F2.7
Pan and
Tilt
Pan Range 360° endless
Pan Speed
Pan Manual Speed: 0.1° -160°/s,
Pan Preset Speed: 160°/s
Tilt Range -10°-90°(Auto Mirror)
Tilt Speed
Tilt Manual Speed: 0.1°-120°/s,
Tilt Preset Speed: 120°/s
Proportional
Zoom
Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Power-off
Memory
Support
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position
Display
On / Off
Freeze Frame Support
Password
Protection
Support
Zone
Scanning/Display
Scanning within programmed zone, display zone title
Camera Title Programmable title display
Compass Support , the north can be set
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
RS-485
communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors, et., displayed on the video screen in
text
Manchester code
communication
diagnosis
Including failure information, e.g., wrong address, baud rate errors s displayed on the video screen in
special characters
IR
IR Range 50m
IR irradiation
angle
Automatically adjusted, depending on the zoom ratio
Input/
Output
Monitor Output 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
General
Menu Language English, Chinese
RS-485 Protocols HIKVISION, Pelco-P, Pelco-D, self-adaptive



©2006 – 2013 by HIKVISION. All rights reserved.
4

Power
24 VAC
Outdoor: Max.20 W(IR: 4W, heater: 6W)
Indoor: Max.14W(IR: 4W)
Working
Temperature /
Humidity
-30 ℃℃℉℉℃℃℉℉





Φmm (Φ”x”)(Outdoor)
POT


TT

TT
Dimensions






©2006 – 2013 by HIKVISION. All rights reserved.
5

Order model
 DS-2AE4562-A, PAL, 24VAC, outdoor
 DS-2AE4562N-A, NTSC, 24VAC, outdoor
 DS-2AE4562-A3, PAL, 24VAC, indoor
 DS-2AE4562N-A3, NTSC, 24VAC, indoor
Note: the indoor models support in-ceiling mount only.
Accessories

DS-1601ZJ Long-arm Wall Mount Bracket
