DS-2AE4225TI-D(E)

Availability: 11-50
Price: €606.75 606.75
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301205267

Description

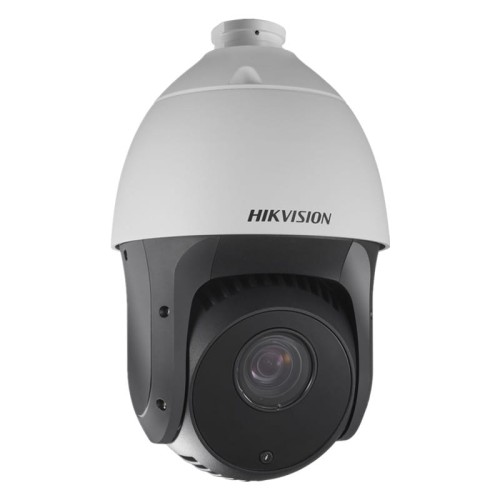

Hikvision DS-2AE4225TI-D(C) IR Turbo 4-Inch Speed  Dome is able to capture high quality images in poor light  environment. The black anti-reflective glass increases the  luminousness which helps IR distance reach up to 100 m.  The embedded CMOS chip makes WDR, and real-time  1920 x 1080 resolution possible. With the help of the 25x  optical zoom, and IR cut filter, the camera offers more  details over an expansive area.  * 1/2.8" HD progressive scan CMOS  * 1920 x 1080 resolution  * 25x optical zoom  * 120 dB true WDR (Wide Dynamic Range)  * Up to 100 m IR distance  * 3D intelligent positioning  * Switchable TVI/AHD/CVI/CVBS video output        DS-2AE4225TI-D(C)  2 MP IR Turbo 4-Inch Speed Dome            Specification  Camera  Model DS-2AE4225TI-D(C)  Image Sensor 1/2.8" progressive scan CMOS  Max. Image Resolution 1920 x 1080  Frame Rate  50Hz: 25fps @(1920 x 1080)  60Hz: 30fps @(1920 x 1080)  Min. Illumination  Color: 0.005 Lux @(F1.6, AGC ON)  B/W: 0.001 Lux @(F1.6, AGC ON)  0 lux with IR  White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR  AGC AUTO/MANUAL  DNR 3D DNR  WDR ≥ 120 dB  Shutter Time  PAL: 1/1 s to 1/...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

Hikvision DS-2AE4225TI-D(C) IR Turbo 4-Inch Speed
Dome is able to capture high quality images in poor light
environment. The black anti-reflective glass increases the
luminousness which helps IR distance reach up to 100 m.
The embedded CMOS chip makes WDR, and real-time
1920 x 1080 resolution possible. With the help of the 25x
optical zoom, and IR cut filter, the camera offers more
details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 25x optical zoom
* 120 dB true WDR (Wide Dynamic Range)
* Up to 100 m IR distance
* 3D intelligent positioning
* Switchable TVI/AHD/CVI/CVBS video output



DS-2AE4225TI-D(C)
2 MP IR Turbo 4-Inch Speed Dome





Specification
Camera
Model DS-2AE4225TI-D(C)
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
DNR 3D DNR
WDR ≥ 120 dB
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Digital Zoom 16x
Privacy Mask 8 programmable privacy masks
BLC (Backlight Compensation) Yes
HLC (highlight Compensation) Yes
EIS (Electric Image Stabilization) Yes
Regional Focus Yes
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 4.8 mm to 120 mm, 25x Optical
Aperture Range F 1.6 to F 3.5
Horizontal Field of View 57.6° to 2.5° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 3.2 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Yes







Park Action
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/None
PTZ Position Display ON/OFF
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night
Mode/Zero Calibration/None
Infrared
IR Distance Up to 100 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output Switchable TVI/AHD/CVI/CVBS video output, (NTSC or PAL composite, BNC)
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12 VDC
Max.20 W (IR:7 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
















Order Model
DS-2AE4225TI-D(C)
Dimensions
Ø
1
6
4
.
5

m
m

(
6
.
4
7
"
)
2
9
5

m
m

(
1
1
.
6
1
"

)


Accessories








0304401080403




DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount

DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount

DS-1602ZJ
Wall Mount
