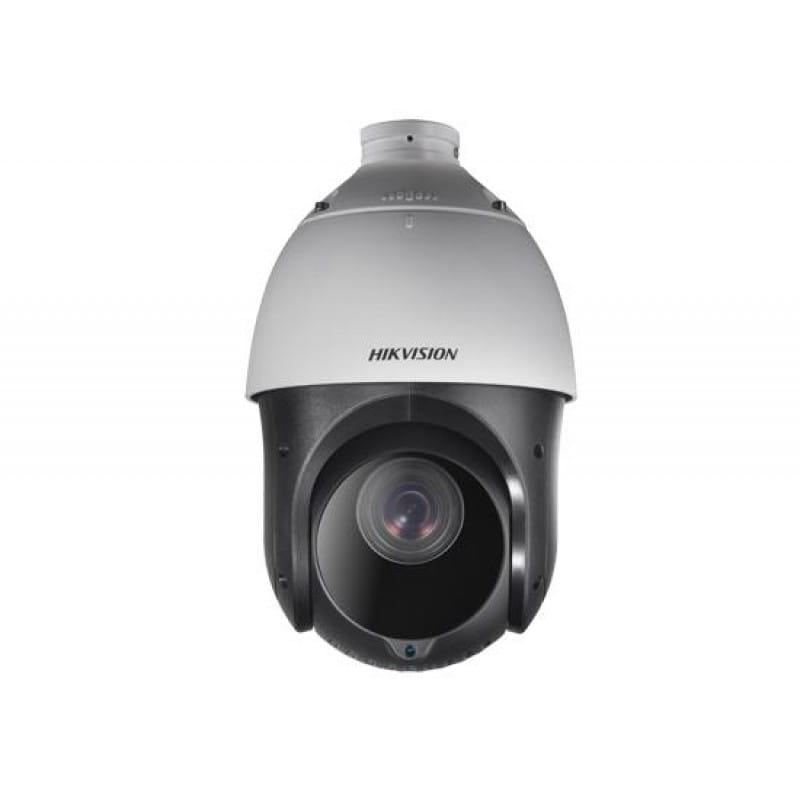

DS-2AE4123TI/4223TI-D  HD720P/1080P Turbo IR PTZ Dome Camera  Hikvision DS-2AE4123TI/4223TI-D PTZ Dome Cameras are  able to capture high quality images in low light environment  with its black anti-reflective glass. The black anti-reflective  glass increase the luminousness which can reach up to 100m  IR distance.  Embedded with 1/3’’ progressive scan CMOS chip makes WDR  and 1MP/2MP real-time resolution possible. With the 23X  optical zoom Day/Night lens, the camera offers more details  over expansive areas.  Key Features    * 1/3" Progressive Scan CMOS  * 1280x720/1920x1080  * 23X Optical Zoom  * DWDR  * Up to 100m IR distance  * 3D intelligent positioning function  * Support Turbo HD and BNC output    Lo-Call 1890 866 900      www.cctvireland.ie        DS-2AE4123TI/4223TI-D  HD720P/1080P Turbo IR  PTZ Dome Camera  Function Description    System function:  •1/3’’ high performance CMOS, up to 1280x720/  1920x1080 resolution  •±0.1° Preset Accuracy  •Self-adaptive to HIKVISION, Pelco-P/D protocol  •3D intelligent positioning function  •Power-off memory function: restore PTZ & Lens  status after r...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-2AE4123TI/4223TI-D
HD720P/1080P Turbo IR PTZ Dome Camera
Hikvision DS-2AE4123TI/4223TI-D PTZ Dome Cameras are
able to capture high quality images in low light environment
with its black anti-reflective glass. The black anti-reflective
glass increase the luminousness which can reach up to 100m
IR distance.
Embedded with 1/3’’ progressive scan CMOS chip makes WDR
and 1MP/2MP real-time resolution possible. With the 23X
optical zoom Day/Night lens, the camera offers more details
over expansive areas.
Key Features

* 1/3" Progressive Scan CMOS
* 1280x720/1920x1080
* 23X Optical Zoom
* DWDR
* Up to 100m IR distance
* 3D intelligent positioning function
* Support Turbo HD and BNC output

Lo-Call 1890 866 900


www.cctvireland.ie



DS-2AE4123TI/4223TI-D
HD720P/1080P Turbo IR
PTZ Dome Camera
Function Description

System function:
•1/3’’ high performance CMOS, up to 1280x720/
1920x1080 resolution
•±0.1° Preset Accuracy
•Self-adaptive to HIKVISION, Pelco-P/D protocol
•3D intelligent positioning function
•Power-off memory function: restore PTZ & Lens
status after reboot
•Built-in temperature sensor, with display of internal
temperature
•Lightning protection, surge protection and voltage
transient protection
•IP66 standard (outdoor dome)
•RS-485 communication diagnosis
•Scheduled PTZ movement
•UTC(Up the Coax) function
•CVBS output

Camera function:
•Auto focus, auto white balance, backlight
compensation and auto/manual day & night switch
•Privacy masks programmable
•3D DNR, digital zoom
•DWDR, EIS

PTZ function:
•360° endless pan range and -15°-90° tilt range
•80°/s Pan Preset Speed and 80°/s Tilt Preset
Speed
•0.1°-80°/s Manual Pan Speed and 0.1°-80°/s
Manual Tilt Speed
•256 presets programmable; preset image freezing
capability
•8 patrols, up to 32 presets per patrol
•4 patterns, with the total recording time not less
than 10 minutes
•Proportional zoom function
•Park action: auto call up of PTZ movement, after a
defined time of inactivity

IR function:
•0 Lux minimum illumination
•Up to 100m IR distance
•IR light MTBF reaching up to 30,000 hours
•Smart IR mode



Lo-Call 1890 866 900


www.cctvireland.ie



Model DS-2AE4123TI-D DS-2AE4223TI-D
Camera Module
Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination Color: 0.05Lux@( F1.6,AGC ON); B/W: 0.005Lux@( F1.6,AGC ON), 0 Lux with IR
Max. Image Resolution 1280 x 720 1920 x 1080
Focal Length 4-92.0mm, 23x
Digital Zoom 16X
Zoom Speed Approx.3s(Optical Wide~Tele )
Angle of View 49-2.2 degree(Wide-Tele)
Min. Working Distance 10~1,000mm(Wide~Tele )
Aperture Range F1.4 -F3.5
Focus Mode Auto / Semiautomatic / Manual
DWDR Support
S / N Ratio ≥ 50dB
Shutter Time 1-1/10,000s
AGC Auto / Manual
White Balance Auto / Manual / ATW / Indoor / Outdoor
Day & Night IR Cut Filter
Privacy Mask 8 privacy masks programmable; a maximum of 8 zones can be masked simultaneously on the same video screen
Enhancement 3D DNR, BLC, EIS
Pan and Tilt
Range Pan:360 ° endless; Tilt: -15°~90°(Auto Flip)
Speed
Pan Manual Speed: 0.1°~80°/s, Pan Preset Speed: 80°/s
Tilt Manual Speed: 0.1°~80°/s, Tilt Preset Speed: 80°/s
Number of Preset 256
Patrol 8 patrols, up to 32 presets per patrol
Pattern 4 patterns, with the total recording time not less than 10 minutes
Park Action Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
Scheduled Task Preset / Patrol / Pattern / Pan scan / Tilt scan / Panorama scan
RS-485 communication
diagnosis
Support
Infrared
IR Distance Up to 100m
IR Intensity Automatically adjusted, depending on the zoom ratio
Input/ Output
Turbo HD Output 1 turbo HD720P/1080P output , 1.0V[p-p] / 75Ω, NTSC (or PAL) composite, BNC
CVBS Output 1.0V[p -p] / 75Ω, NTSC (or PAL) composite, BNC
RS-485 Interface
Half -duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function HIKVISION_C
DS-2AE4123TI/4223TI-D
HD720P/1080P Turbo IR
PTZ Dome Camera

Lo-Call 1890 866 900


www.cctvireland.ie



Accessories Dimensions
General
Menu Language English
Power 12VDC, Max.18W
Working Temperature /
Humidity
-30 °C-65°C(-22°F-149°F)
90% or less
Protection Level
IP66 standard
TVS 4,000V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimensions Φ164.5( mm)x295(mm)
Weight (approx.) 2Kg (4.41Ibs)
Mount Option (only suitable
for outdoor dome)
Long -arm wall mount: DS-1602ZJ; Corner mount: DS-1602ZJ-corner;
Pole Mount: DS-1602ZJ-pole; Power box mount:DS-1602ZJ-box; Swan-neck mount: DS-1619ZJ
DS-2AE4123TI/4223TI-D
HD720P/1080P Turbo IR
PTZ Dome Camera


DS -1602ZJ-Conner
Conner Mount
DS -1602ZJ-Pole
Pole Mount
DS -1602ZJ-Box
Box Mount
DS -1005KI
USB Joy-stick
DS -1662ZJ
Pendant mount
DS -1661ZJ
Pendant mount
DS -1663ZJ
Celling mount
DS -1602ZJ
Wall Mount
DS -1618ZJ
Short arm wall
Mount
