DS-2AE4215TI-D(D)
Description

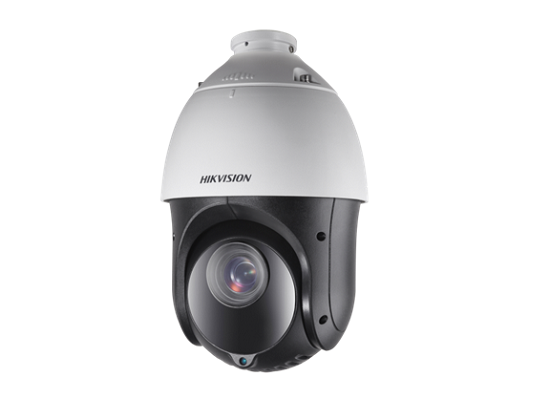

Hikvision DS-2AE4215TI-D IR Turbo 4-Inch Speed Dome is able to capture high quality images in poor light environment. The black anti-reflective glass increases the luminousness which helps IR distance reach up to 100 m. The embedded CMOS chip makes DWDR, and real-time 1920 x 1080 resolution possible. With the help of the 15x optical zoom, and IR cut filter, the camera offers more details over an expansive area. * 1/2.8" HD progressive scan CMOS * 1920 x 1080 resolution * 15x optical zoom * DWDR (Digital Wide Dynamic Range) * Up to 100 m IR distance * 3D intelligent positioning * Switchable Turbo HD and CVBS outputs DS-2AE4215TI-D 2 MP IR Turbo 4-Inch Speed Dome Specification Camera Model DS-2AE4215TI-D Image Sensor 1/2.8" progressive scan CMOS Max. Image Resolution 1920 x 1080 Frame Rate 50Hz: 25fps @(1920 x 1080) 60Hz: 30fps @(1920 x 1080) Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON) B/W: 0.001 Lux @(F1.6, AGC ON) 0 lux with IR White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR AGC AUTO/MANUAL S/N Ratio ≥ 52 dB DNR 3D DNR WDR DWDR Shutter Time PAL: 1/1 s to 1/10...
Warning! Product withdrawn from production!
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:

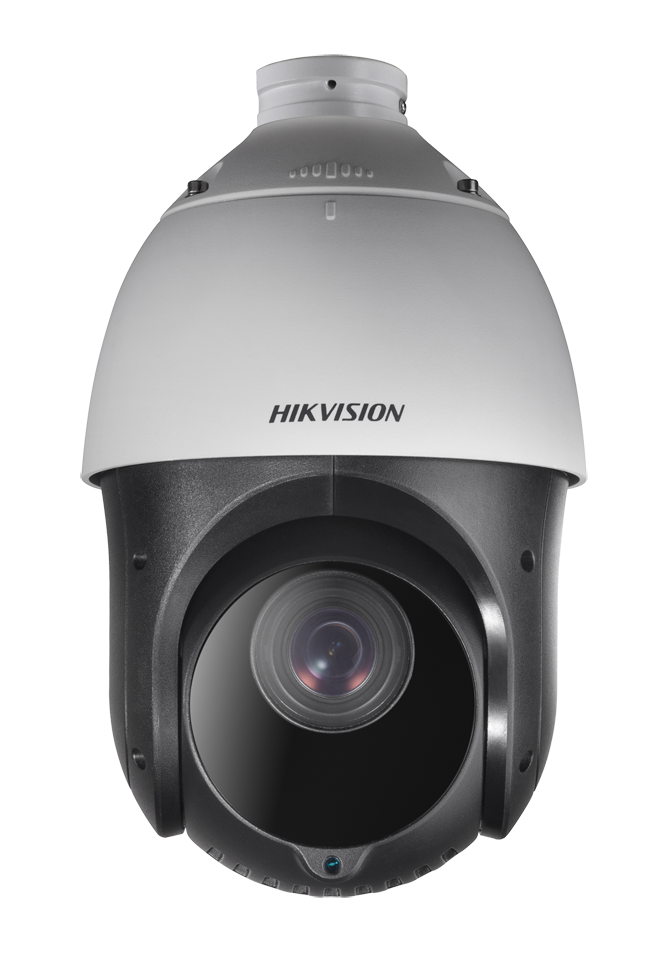

Hikvision DS-2AE4215TI-D IR Turbo 4-Inch Speed Dome is
able to capture high quality images in poor light
environment. The black anti-reflective glass increases the
luminousness which helps IR distance reach up to 100 m.
The embedded CMOS chip makes DWDR, and real-time
1920 x 1080 resolution possible. With the help of the 15x
optical zoom, and IR cut filter, the camera offers more
details over an expansive area.
* 1/2.8" HD progressive scan CMOS
* 1920 x 1080 resolution
* 15x optical zoom
* DWDR (Digital Wide Dynamic Range)
* Up to 100 m IR distance
* 3D intelligent positioning
* Switchable Turbo HD and CVBS outputs
DS-2AE4215TI-D
2 MP IR Turbo 4-Inch Speed Dome
Specification
Camera
Model DS-2AE4215TI-D
Image Sensor 1/2.8" progressive scan CMOS
Max. Image Resolution 1920 x 1080
Frame Rate
50Hz: 25fps @(1920 x 1080)
60Hz: 30fps @(1920 x 1080)
Min. Illumination
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 lux with IR
White Balance AUTO/MANUAL/HAUTO/ATW/INDOOR/OUTDOOR
AGC AUTO/MANUAL
S/N Ratio ≥ 52 dB
DNR 3D DNR
WDR DWDR
Shutter Time
PAL: 1/1 s to 1/10,000 s
NTSC: 1/1 s to 1/10,000 s
Day & Night IR cut filter
Privacy Mask 8 programmable privacy masks
Lens
Focus Mode Auto/Semiauto/Manual
Focal Length 5 mm to 75 mm, 15x Optical
Aperture Range F 1.6 to F 3.5
Horizontal Field of View 53.8° to 4.0° (wide-tele)
Min. Working Distance 10 mm to 1500 mm (wide to tele)
Zoom Speed Approx. 2.4 s (optical, wide to tele)
Pan and Tilt
Pan Range 360° endless
Pan Speed
Pan manual speed: 0.1° to 80°/s
Pan preset speed: 80°/s
Tilt Range -15° to 90° (auto flip)
Tilt Speed
Tilt manual speed: 0.1° to 80°/s
Tilt preset speed: 80°/s
Proportional Zoom Rotation speed can be adjusted automatically according to zoom multiples
Presets 256
Patrol 10 patrols, up to 32 presets per patrol
Pattern 5 patterns, with the total recording time no less than 10 minutes
Power-off Memory Support
Park Action Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/None
PTZ Position Display ON/OFF
Preset Freezing Support
Scheduled Task
Preset/Patrol/Pattern/Pan Scan/Tilt Scan/Panorama Scan/Day Mode/Night Mode/Zero
Calibration/None
Infrared
IR Distance Up to 100 m
IR Intensity Automatically adjusted depending on the zoom ratio
Input/Output
Video Output 1 turbo 1080p output/1 CVBS output, (NTSC or PAL composite, BNC)
RS-485 Interface
Half-duplex mode
Self-adaptive HIKVISION, Pelco-P, Pelco-D protocol
UTC function UTC protocol (or HIKVISION-C protocol in previous DVR)
General
Menu Language English
Power
12 VDC
Max.20 W (IR:7 W)
Working Temperature -30° C to 65° C (-22° F to 149° F)
Working Humidity 90% or less
Protection Level
IP66 standard (outdoor dome)
TVS 4,000 V lightning protection, surge protection and voltage transient protection
Mounting Various mounting modes optional
Dimension Ø 164.5 mm x 295 mm (Ø 6.47" x 11.61")
Weight (approx.) 2Kg (4.41Ib.)
Order Model
DS-2AE4215TI-D
Dimensions
Ø
1
6
4
.
5
m
m
(
6
.
4
7
"
)
2
9
5
m
m
(
1
1
.
6
1
"
)
Accessories
0400101071011
DS-1602ZJ-Conner
Conner Mount
DS-1602ZJ-Pole
Pole Mount
DS-1602ZJ-Box
Box Mount
DS-1005KI
USB Joy-stick
DS-1619ZJ
Swan-neck Mount
DS-1662ZJ
Pendant mount
DS-1661ZJ
Pendant mount
DS-1663ZJ
Celling mount
DS-1602ZJ
Wall Mount
