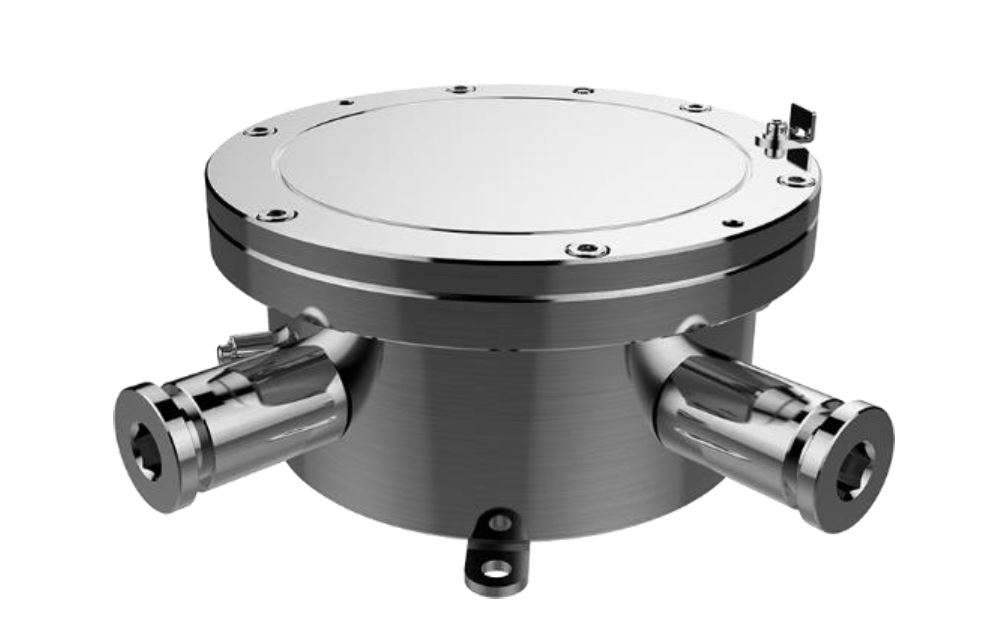

DS-2780ZJ-X/316L

20180209    DS-2780ZJ-X(/316L)  Explosion-Proof Terminal Box  Features   Stainless steel 304 and stainless steel 316L (/316L) optional   Four cable outlets   ATEX and IECEx certified explosion-proof performance   Ingress protection, IP68  Dimension  272  2  7  2  Ø182  4-Ø8.5  EQS  96.8  Unit: mm      Available Model  DS-2780ZJ-X, DS-2780ZJ-X/316L  Parameter  Model  Parameters  DS-2780ZJ-X, DS-2780ZJ-X/316L  Explosion-Proof Terminal Box  Material  DS-2780ZJ-X: stainless steel 304  DS-2780ZJ-X/316L: stainless steel 316L  Dimension 272 mm x 272 mm x 96.8 mm (10.7" x 10.7" x 3.8")  Weight Approx. 6.4 kg (14.1 lb.)  Cable Outlet 4 cable outlets, M25 x 1.5  Operating Conditions -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)  Hazardous Area Zone 1, Zone 2, Zone 21, and Zone 22  Ingress protection IP68  Interface  100 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2  alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported)  Power Adapter Preinstalled No  Wire Gauge No. 22 to No. 12 AWG, max. 3.294 mm  2  Applicable Device Device that uses 100 to 240 ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

20180209

DS-2780ZJ-X(/316L)
Explosion-Proof Terminal Box
Features
 Stainless steel 304 and stainless steel 316L (/316L) optional
 Four cable outlets
 ATEX and IECEx certified explosion-proof performance
 Ingress protection, IP68
Dimension
272
2
7
2
Ø182
4-Ø8.5
EQS
96.8
Unit: mm


Available Model
DS-2780ZJ-X, DS-2780ZJ-X/316L
Parameter
Model
Parameters
DS-2780ZJ-X, DS-2780ZJ-X/316L
Explosion-Proof Terminal Box
Material
DS-2780ZJ-X: stainless steel 304
DS-2780ZJ-X/316L: stainless steel 316L
Dimension 272 mm x 272 mm x 96.8 mm (10.7" x 10.7" x 3.8")
Weight Approx. 6.4 kg (14.1 lb.)
Cable Outlet 4 cable outlets, M25 x 1.5
Operating Conditions -40°C to +60°C (-40°F to 140°F), 95%RH or less (non-condensing)
Hazardous Area Zone 1, Zone 2, Zone 21, and Zone 22
Ingress protection IP68
Interface
100 to 240 VAC/24 VAC/8 to 36 VDC, CVBS, RS-485, 1 audio input, 1 audio output, 2
alarm inputs and 2 alarm outputs, RJ45 Ethernet interface (PoE 802.3 at/af supported)
Power Adapter Preinstalled No
Wire Gauge No. 22 to No. 12 AWG, max. 3.294 mm
2
Applicable Device Device that uses 100 to 240 VAC/24 VAC/8 to 36 VDC/PoE (802.3 at/af) as power supply
Accessory
Sealing rings, Ø12 mm x 2, Ø9 mm x 2, Ø7 mm x 2, Ø5 mm x 2
Note
 Read the installation guide and abide by all mentioned instructions when install the terminal box.
 Make sure that the installation surface is strong enough to withstand eight times the weight of the device.


II 2 G Ex db IIC T6 Gb
II 2 D Ex tb IIIC T80°C Db IP68
