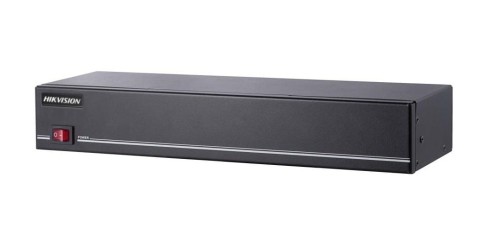

DS-1TLP16I

Availability: 0
Price: €112.15 112.15
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 300218667

Description

DS-1TLP16I Video Loop Device     16-ch video input; 16-ch video output; 16-ch loop output.   Accepts HDTVI, CVBS and AHD signals inputs.   When the video input is HDTVI, the video output will support coaxitron.   Support 12 VDC and USB power supply.  Features and Functions                Model DS-1TLP16I  Video input  Video in 16-ch, BNC connector  Signal format CVBS, HDTVI and AHD  Video output  Video out 16-ch, BNC connector  Loop out 16-ch, BNC connector  Signal format CVBS, HDTVI and AHD  Transmission  distance  Transmission distance  CVBS, 720P: Up to 500 m (input and output cable combined)  1080P: Up to 300 m (input and output cable combined)  General  Power supply  1 x 12 VDC (2-ping connector)  1 x USB  Power consumption ≤ 3.6 W  Operating temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)  Operating humidity 10% to 90%  Dimensions  (W x D x H)  315 x 100 x 52 mm (12.4 x 3.9 x 2.0 inch)  Weight  (without HDD) ≤ 1.5 kg (3.3 lb)  Specifications          Index Description Index Description  1 LOOP OUT 2 VIDEO IN (Connect to Camera)  3 USB Power Supply 4 VIDEO OUT (Connect to DVR)  5 Power ...

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

DS-1TLP16I Video Loop Device

 16-ch video input; 16-ch video output; 16-ch loop output.
 Accepts HDTVI, CVBS and AHD signals inputs.
 When the video input is HDTVI, the video output will support coaxitron.
 Support 12 VDC and USB power supply.
Features and Functions







Model DS-1TLP16I
Video input
Video in 16-ch, BNC connector
Signal format CVBS, HDTVI and AHD
Video output
Video out 16-ch, BNC connector
Loop out 16-ch, BNC connector
Signal format CVBS, HDTVI and AHD
Transmission
distance
Transmission distance
CVBS, 720P: Up to 500 m (input and output cable combined)
1080P: Up to 300 m (input and output cable combined)
General
Power supply
1 x 12 VDC (2-ping connector)
1 x USB
Power consumption ≤ 3.6 W
Operating temperature -10 ºC to +55 ºC (14 ºF to 131 ºF)
Operating humidity 10% to 90%
Dimensions
(W x D x H)
315 x 100 x 52 mm (12.4 x 3.9 x 2.0 inch)
Weight
(without HDD) ≤ 1.5 kg (3.3 lb)
Specifications




Index Description Index Description
1 LOOP OUT 2 VIDEO IN (Connect to Camera)
3 USB Power Supply 4 VIDEO OUT (Connect to DVR)
5 Power Supply 6 Ground
DS-1TLP16I
Physical Interfaces
0100001060811
Available Models
