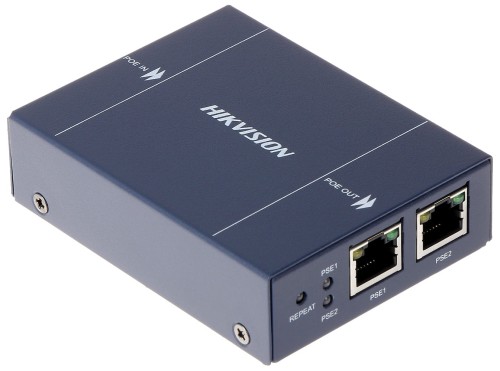

DS-1H34 Series PoE Video Repeater     Support 1-ch input and 1-ch output, and 1-ch input and 2-ch output PoE relay function.   Support EXTEND mode of PSE (Power Sourcing Equipment) output interface. The transmission  distance of single-stage network can be extended to 250 meters when the EXTEND mode is  enabled.   Standard Cat. 5e twisted pair. For 100 Mbps mode, the repeater supports 4-stage cascade and the  max. transmission distance reaches 500 meters (terminal power consumption < 5W). For EXTEND  mode, the max. transmission distance reaches 500 meters (terminal power consumption < 5W).   IEEE802.3at and IEEE802.3af are supported for PoE output.   10/100BaseT(X) (RJ45 interface).   IEEE802.3, IEEE802.3u and IEEE802.3x network standards available.   Store-and-forward switching method.   The time delay of data exchange is shorter than 5 microseconds.   The working temperature range for wide temperature range models is within -30˚C to 70˚C.   Solid metal case of high strength.  Features and Functions                  Model DS-1H34-0101P DS-1H34-0102P  Input 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection.  Output  1-ch 10...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1H34 Series PoE Video Repeater

 Support 1-ch input and 1-ch output, and 1-ch input and 2-ch output PoE relay function.
 Support EXTEND mode of PSE (Power Sourcing Equipment) output interface. The transmission
distance of single-stage network can be extended to 250 meters when the EXTEND mode is
enabled.
 Standard Cat. 5e twisted pair. For 100 Mbps mode, the repeater supports 4-stage cascade and the
max. transmission distance reaches 500 meters (terminal power consumption < 5W). For EXTEND
mode, the max. transmission distance reaches 500 meters (terminal power consumption < 5W).
 IEEE802.3at and IEEE802.3af are supported for PoE output.
 10/100BaseT(X) (RJ45 interface).
 IEEE802.3, IEEE802.3u and IEEE802.3x network standards available.
 Store-and-forward switching method.
 The time delay of data exchange is shorter than 5 microseconds.
 The working temperature range for wide temperature range models is within -30˚C to 70˚C.
 Solid metal case of high strength.
Features and Functions








Model DS-1H34-0101P DS-1H34-0102P
Input 1-ch 10/100BaseT(X) and IEEE 802.3at standard of PD connection.
Output
1-ch 10/100BaseT(X) and IEEE 802.3af/at
standard of PSE output.
2-ch 10/100BaseT(X) and IEEE 802.3af
standard of PSE outputs.
MTBF (Mean Time
Between Failure)
100000 hours
Consumption < 2W
Working Temperature -30 ºC to +70 ºC (-22 ºF to +158 ºF)
Working Humidity 10% to 90%
Dimensions (WxHxD) 71.6 x 26.1 x 95.5 mm (2.8 x 1.0 x 3.8 inch)
Weight 0.3 Kg (0.7 lb)
ESD (Electro-Static
Discharge)
Contact discharge: ±7 KV
Air discharge: ±9 KV
Surge
Power port: Line-to-ground: ±2 KV; Line-to-line: 1 KV
Network port: Line-to-ground: ±4 KV
EFT (Electrical Fast
Transient Burst)
Network port: ±2 KV
Specifications





Index Description Index Description
1 REPEAT/PSE Indicator 2 RJ45 Interface
Index Description Index Description
1 REPEAT/PSE1/PSE2 Indicator 3 RJ45 Interface
2 RJ45 Interface
Index Description Index Description
1 PD Indicator 3 DIP Switch
2 RJ45 Interface 4 GND
DS-1H34-0101P
DS-1H34-0102P
Physical Interfaces
0100001060421
Available Models

Input Panel

Output Panel 2

Output Panel 1
