DS  -  1H18S  /  E(B)    HD Video  Balun       Real-time transmission over UTP cat5e/6     Compatible with all HD-TVI/CVI/AHD/CVBS analog camera     Low crosstalk and noise suppressions     Male BNC connector     Built-in solid state TVS (Transient Voltage Suppressor) for surge protection     Wave Filter Design, Anti-Static Design     Power and video signals transmit over one twist pair cable     60 dB crosstalk and noise immunity     Exceptional interference rejection     ABS engineering plastic housing     Compatible with HD-TVI, HD-CVI, AHD and CVBS      Features and Functions    The DS-1H18S/E(B) video balun is a passive device that    allows the transmission of real-time CCTV HD video signal    and power via cost-effective Unshielded Twisted Paired    (UTP) cable              Model DS-1H18S/E(B)    Transmission Signal 1 channel    Category Type UTP CAT 5E/ 6 (R<100Ω/100M)    Coaxial Video Connector BNC-M    Twisted-pair Video    Connector    Tool-less push-pin terminal block    Compatible Format HD-TVI/CVI/AHD/CVBS    ...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS
-
1H18S
/
E(B)

HD Video
Balun


 Real-time transmission over UTP cat5e/6

 Compatible with all HD-TVI/CVI/AHD/CVBS analog camera

 Low crosstalk and noise suppressions

 Male BNC connector

 Built-in solid state TVS (Transient Voltage Suppressor) for surge protection

 Wave Filter Design, Anti-Static Design

 Power and video signals transmit over one twist pair cable

 60 dB crosstalk and noise immunity

 Exceptional interference rejection

 ABS engineering plastic housing

 Compatible with HD-TVI, HD-CVI, AHD and CVBS


Features and Functions

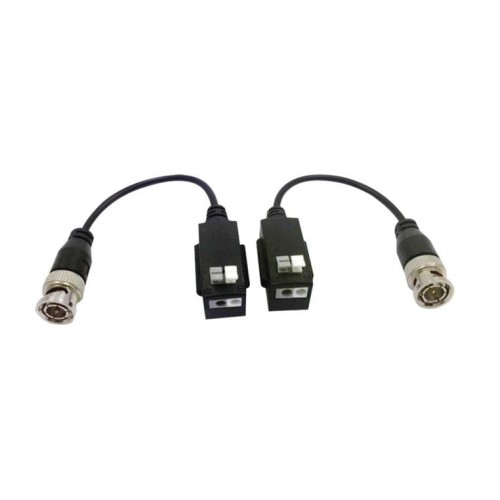

The DS-1H18S/E(B) video balun is a passive device that

allows the transmission of real-time CCTV HD video signal

and power via cost-effective Unshielded Twisted Paired

(UTP) cable






Model DS-1H18S/E(B)

Transmission Signal 1 channel

Category Type UTP CAT 5E/ 6 (R<100Ω/100M)

Coaxial Video Connector BNC-M

Twisted-pair Video

Connector

Tool-less push-pin terminal block

Compatible Format HD-TVI/CVI/AHD/CVBS

Resolution 720P/960P/1080P/3MP/4MP/5MP/8MP

Ant-interference >60db

1a contact discharge electricity level3

1b air discharge electricity level3

Per: IEC61000-4-2

Coaxial Cable Connector 2KV (common-code) Per: IEC61000-4-5

BNC Male 75 ohms

UTP Cable 100 ohms

Shell ABS engineering plastic

Color Black

Dimensions
38.4*18.6*19.5mm (BNC connector & cable excluded)

Specification
s




( L x W x H )

Weight 22g

Stability MTBF >10000 h

Operating Temperature -20º ~55º C

Storage Temperature -40º ~ 150º C

Humidity 0-95% (non-condensing)



Camera Type HD-TVI HD-CVI HD-AHD
720P camera 400m(1312ft) 450m(1476ft) 450m(1476ft)

960P camera / / 320m(1049ft)

1080P camera 250m(820ft) 250m(820ft) 250m(820ft)

3MP camera 250m(820ft) / 250m(820ft)

4MP camera 180m(656ft) 200m(656ft) 200m(656ft)

5MP camera 180m(656ft) / 180m(590ft)

CVBS camera 400m(1312ft)




Typical Application





















Available M
o
del

DS-1H18S/E(B)
