DS-1H18S

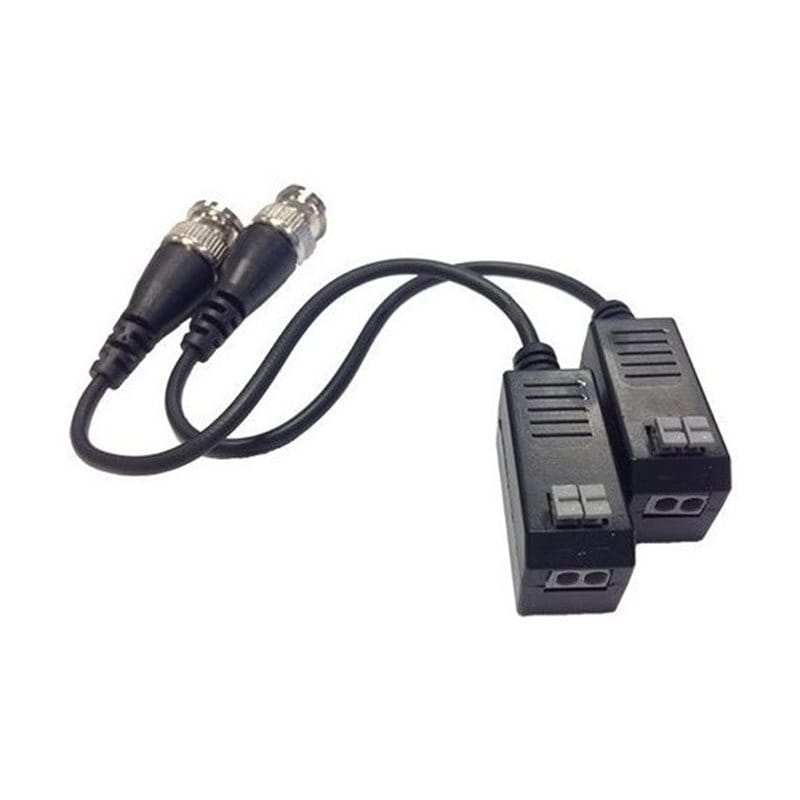

DS-1H18 Series  TVI Transmission  Overview DS  -1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very  suitable for middle distance video surveillance, such as office building, community, school and hospital etc.  Available Models DS  -1H18  Product Terminal and Dimension Introduction  (1): VIDEO IN  (2): VIDEO +(UTP Cable)  (3): VIDEO - (UTP Cable)            Product Installation Instructions ◆   Connect the video signal to BNC terminal of transmitter.  ◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port  ◆ Connect the video signal of receiver to display device.    Specifications  Bandwidth DC0 to 60MHz  Impedance 75 to 100  Differential Gain < 2%  Differential Phase < 2  Connectors BNC to Spring compression wire terminals  Temperature...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1H18 Series
TVI Transmission
Overview DS
-1H18 is a passive high definition transmitter, small size and easy installation, transmission distance of color signal up to 200m, it is very
suitable for middle distance video surveillance, such as office building, community, school and hospital etc.
Available Models DS
-1H18
Product Terminal and Dimension Introduction
(1): VIDEO IN
(2): VIDEO +(UTP Cable)
(3): VIDEO - (UTP Cable)





Product Installation Instructions ◆
Connect the video signal to BNC terminal of transmitter.
◆ Selected a pair of UTP Cable (must be same color) connect to the transmitter VIDEO +/- port and receiver VIDEO +/- port
◆ Connect the video signal of receiver to display device.

Specifications
Bandwidth DC0 to 60MHz
Impedance 75 to 100
Differential Gain < 2%
Differential Phase < 2
Connectors BNC to Spring compression wire terminals
Temperature
