DS-1H05-R

Availability: 0
Price: €63.82 63.82
excl. 23.00% TAX, excl. shipping costs
quantity szt.

product unavailable

add to wish list
Vendor: HIKVISION
Product code: 301600155

Description

Overview  DS-1H05 series product adopts security link over coax  technology, achieve transmitting analog/IP signal in coaxial  cable.  Key Features  Max transmission distance is 500 meters.  DS-1H05-T/E transmitter support PoE(802.3af) function.  Industrial design, high reliability.  Application                Specification  DS-1H05 Series  Coaxial Transmission Accessary    Model  DS-1H05-T  DS-1H05-T/E  DS-1H05-R    DS-1H05-4R/8R/16R    DS-1H05-R-8  Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC  Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45  PoE  Only DS-1H05-T/E  support  N/A N/A N/A  Consumption  DS-1H05-T≤5W  DS-1H05-T/E≤20W  (Include PoE power  supply)  ≤5W  DS-1H05-4R≤10W  DS-1H05-8R≤15W  DS-1H05-16R≤24W  ≤20W  Working  Humidity  10 ~ 90%  Working  Temperature  -10°C ~ 55°C  Power DC12V 220V AC  Dimension  (W x H x D)  Standalone Transmitter and Receiver:  80x27x96 mm  Multi-channel  Receiver:  440x44.5x195mm  Rack-mounted  Receiver Chassis:  482.6x265.9x279.3  mm...

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet PDF


Text contents of PDF datasheet:

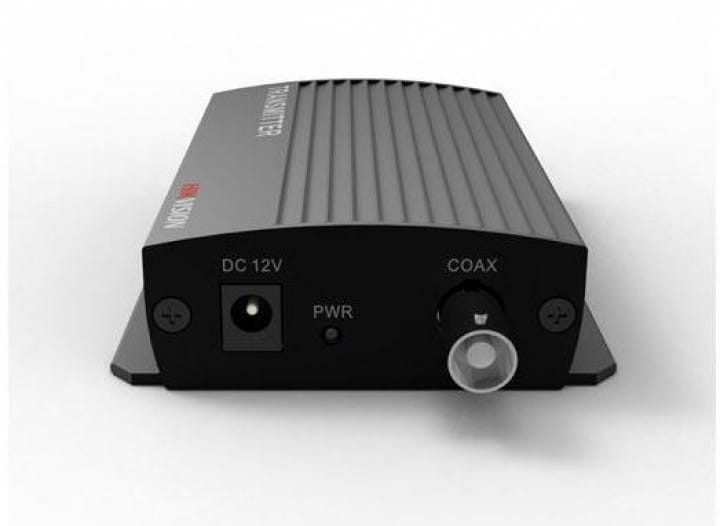

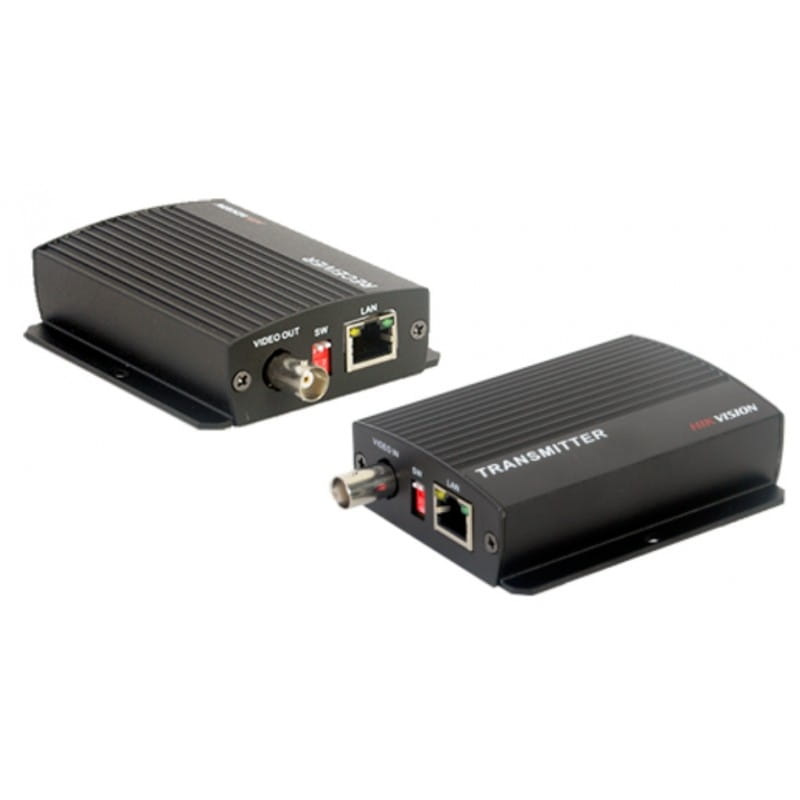

Overview
DS-1H05 series product adopts security link over coax
technology, achieve transmitting analog/IP signal in coaxial
cable.
Key Features
Max transmission distance is 500 meters.
DS-1H05-T/E transmitter support PoE(802.3af) function.
Industrial design, high reliability.
Application







Specification
DS-1H05 Series
Coaxial Transmission Accessary

Model
DS-1H05-T
DS-1H05-T/E
DS-1H05-R

DS-1H05-4R/8R/16R

DS-1H05-R-8
Input 1 RJ45,1 BNC 1 BNC 4/8/16 BNC 8 BNC
Output 1 BNC 1 RJ45, 1 BNC 2/2/4 RJ45 1 RJ45
PoE
Only DS-1H05-T/E
support
N/A N/A N/A
Consumption
DS-1H05-T≤5W
DS-1H05-T/E≤20W
(Include PoE power
supply)
≤5W
DS-1H05-4R≤10W
DS-1H05-8R≤15W
DS-1H05-16R≤24W
≤20W
Working
Humidity
10 ~ 90%
Working
Temperature
-10°C ~ 55°C
Power DC12V 220V AC
Dimension
(W x H x D)
Standalone Transmitter and Receiver:
80x27x96 mm
Multi-channel
Receiver:
440x44.5x195mm
Rack-mounted
Receiver Chassis:
482.6x265.9x279.3
mm
