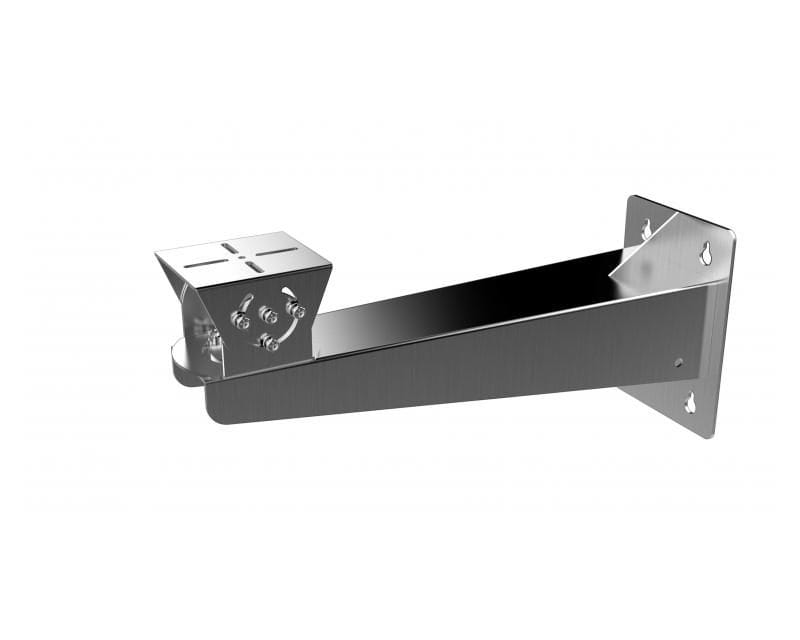

DS-1707ZJ-Y-E
Description
DS-1707ZJ-Y-E Wall Mount Features Adopts the stainless steel structure Applied to both indoor conditions, and outdoor conditions Dimension Φ 10 mm (0.39'') 44 mm (1.73'') 543.5 mm (21.40'') Φ 8.5 mm (0.33'') Φ 17 mm (0.67'') * 166 mm ± 0 .1 mm (* 6 .54 '' ± 0 .004 '' ) 258 mm ( 10 .16 '' ) 13 mm (0.51'') 27 mm (1.06'') * 90 mm ± 0.1 mm (* 3.54'' ± 0.004'') 160 mm (6.30'') Φ 6.5 mm (0.26'') 96 mm (3.78'') 30 mm (1.18'') 6.5 mm (0.26'') 6 .5 mm (0 .26 '') 30 mm (1 .18 '') 80 mm (3 .15 '') 105 .5 mm (4 .15 '') 80 .9 mm ( 3 .19 '' ) Available Model DS-1707ZJ-Y-E Parameter Model Parameters DS-1707ZJ-Y-E Wall Mount Appearance Unpainted Stainless Steel Material SUS316L Dimension 543.5 mm x 160 mm x 258 mm (21.40" x 6.30" x 10.16") Weight 4.98 kg (10.98 lb.) Notes The mount should be installed on the flat surface. Waterproof rubber is necessary for the outdoor appli...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-1707ZJ-Y-E
Wall Mount
Features
Adopts the stainless steel structure
Applied to both indoor conditions, and outdoor conditions
Dimension
Φ 10 mm (0.39'')
44 mm (1.73'')
543.5 mm (21.40'')
Φ 8.5 mm (0.33'')
Φ 17 mm (0.67'')
*
166
mm ±
0
.1
mm
(*
6
.54
''
±
0
.004
''
)
258
mm
(
10
.16
''
)
13 mm (0.51'')
27 mm (1.06'')
* 90 mm ± 0.1 mm
(* 3.54'' ± 0.004'')
160 mm (6.30'')
Φ 6.5 mm
(0.26'')
96 mm (3.78'')
30 mm
(1.18'')
6.5 mm (0.26'')
6
.5
mm
(0
.26
'')
30
mm
(1
.18
'')
80
mm
(3
.15
'')
105
.5
mm
(4
.15
'')
80
.9
mm
(
3
.19
''
)
Available Model
DS-1707ZJ-Y-E
Parameter
Model
Parameters
DS-1707ZJ-Y-E
Wall Mount
Appearance Unpainted Stainless Steel
Material SUS316L
Dimension 543.5 mm x 160 mm x 258 mm (21.40" x 6.30" x 10.16")
Weight 4.98 kg (10.98 lb.)
Notes
The mount should be installed on the flat surface.
Waterproof rubber is necessary for the outdoor application.
The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
The maximum load capacity of the mount is 20 kg (44.09 lb.).
