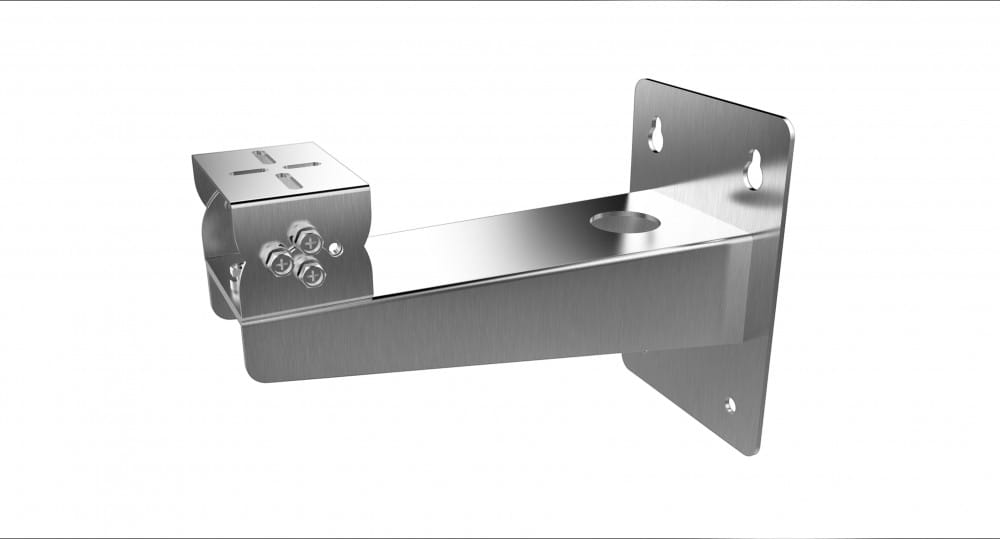

DS-1704Z-Y
Wall Mount

Feature
⚫ Stainless steel
⚫ Adjustable tilt angle from -45° to 45°, and pan angle from -45° to 45°
⚫ Cable hole design facilitates the cable routing
Dimension
2
2
8

m
m

(
8
.
9
8
"

)
2
0
0

m
m

(
7
.
8
7
"

)
1
5
0

m
m

(
5
.
9
1
"

)
1
0

m
m

(
0
.
3
9
"

)
1
4
5

m
m

(
5
.
7
1
"

)
140 mm (5.51" )
90 mm (3.54" )
1
0
0

m
m

(
3
.
9
4
"

)
Ø 40 mm (1.57" )
2-Ø 10 mm
(0.39" )
2-R 5 mm
(0.20" )
2-R 8 mm
(0.31" )
412.5 mm (16.24" )
53 mm (2.09" )
Ø 40 mm (1.57" )
8
0

m
m

(
3
.
1
5
"

)
3
0

m
m

(
1
.
1
8
"

)
96 mm (3.78" )
30 mm (1.18" )
6.5 mm
(0.26" )
3 mm (0.12" )


Available Model
DS-1704ZJ-Y
Parameter
Model

Parameters
DS-1704Z-Y
Wall Mount
Appearance Unpainted Stainless Steel
Material SUS316L
Dimension 412.5 mm x 140 mm x 228 mm (16.24" x 5.51" x 8.98")
Weight 2160 g (4.76 lb.)
Note
⚫ The mount should be installed on the flat surface.
⚫ Waterproof rubber is necessary for the outdoor application.
⚫ The wall should be capable of supporting at least 8 times as much as the total weight of the camera, and the mount.
⚫ The mount’s maximum load capacity is 10 kg (22 lb.).
