DS-1622ZJ

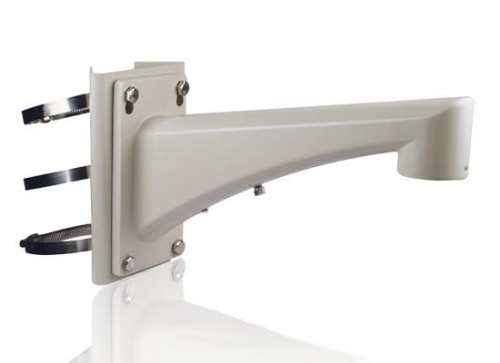

DS-1622ZJ  Pole Mount Bracket  Features:   Aluminum alloy material with surface spray treatment   Size of threaded hole is G1½ as British system   Nose-up long arm design for better waterproof   Design of safety rope for more convenient installation  Dimension:              Order Model:  DS-1622ZJ  Parameter:  Model  Parameter  DS-1622ZJ  Vertical Pole Mount Bracket  Appearance Hikvision White  Range of  Application  For pole mount  Size of clamp: Φ67-127mm  Material Aluminum Alloy  Dimension 117x194x310mm  Weight 1600g  Notice:   The bracket should be installed on plat wall   The bracket is suitable for vertical pole mount of 67-127  mm diameter   Load capacity of pole should be more than 3 times the  weight of camera and bracket   Load capacity of bracket is 30KG  Installation Step:  ① Rotate the rotary knob and install clamp to pole          A: Adjust knob of tightness  ② Install the wall mount accessory, screw up the adaptor  ring and thread the cable

Warning! Product withdrawn from production!

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1622ZJ
Pole Mount Bracket
Features:
 Aluminum alloy material with surface spray treatment
 Size of threaded hole is G1½ as British system
 Nose-up long arm design for better waterproof
 Design of safety rope for more convenient installation
Dimension:






Order Model:
DS-1622ZJ
Parameter:
Model
Parameter
DS-1622ZJ
Vertical Pole Mount Bracket
Appearance Hikvision White
Range of
Application
For pole mount
Size of clamp: Φ67-127mm
Material Aluminum Alloy
Dimension 117x194x310mm
Weight 1600g
Notice:
 The bracket should be installed on plat wall
 The bracket is suitable for vertical pole mount of 67-127
mm diameter
 Load capacity of pole should be more than 3 times the
weight of camera and bracket
 Load capacity of bracket is 30KG
Installation Step:
① Rotate the rotary knob and install clamp to pole




A: Adjust knob of tightness
② Install the wall mount accessory, screw up the adaptor
ring and thread the cable



B: Adaptor ring
③ Tie the safety rope to hook and fix the adaptor ring with
tightening screw, then thread the cable





C: Safety rope D: Tightening screw
④ Install the speed dome and rotate the set screw;
installation complete
Note: The actual bracket may vary from the picture above.
A
A

①
②
B

C
D


Unit: mm
