DS-1619ZJ-HP2

DS-1619ZJ-HP2  Gooseneck Mount    Feature   Steel with surface spay treatment   Convenient installation   Cable hole design facilitates cable routing  Dimension  526  mm  (20  .71  " )  10  mm  (0  .39  " )  455 mm (17.91" )  70.7 mm (2.78" )  70  .7  mm  (2  .78  " )  Ø 130 mm (5.12" )  4-Ø 11 mm (0.43" )      Available Model  DS-1619ZJ-HP2  Parameter  Model    Parameters  DS-1619ZJ-HP2  Gooseneck Mount  Appearance Platinum Gray  Material Steel  Dimension Ø 130 mm x 455 mm x 526 mm (5.12" x 17.91" x 20.71")  Weight 5200 g (12.46 lb.)  Note   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The mount’s maximum load capacity is 20 kg (44 lb.).    0100001090129...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

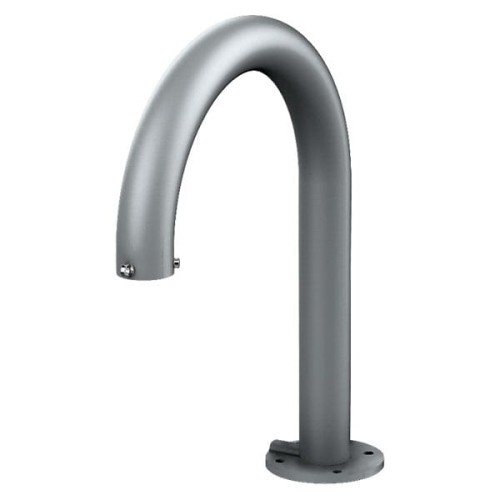

DS-1619ZJ-HP2
Gooseneck Mount

Feature
 Steel with surface spay treatment
 Convenient installation
 Cable hole design facilitates cable routing
Dimension
526
mm
(20
.71
" )
10
mm
(0
.39
" )
455 mm (17.91" )
70.7 mm (2.78" )
70
.7
mm
(2
.78
" )
Ø 130 mm (5.12" )
4-Ø 11 mm (0.43" )


Available Model
DS-1619ZJ-HP2
Parameter
Model

Parameters
DS-1619ZJ-HP2
Gooseneck Mount
Appearance Platinum Gray
Material Steel
Dimension Ø 130 mm x 455 mm x 526 mm (5.12" x 17.91" x 20.71")
Weight 5200 g (12.46 lb.)
Note
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The mount’s maximum load capacity is 20 kg (44 lb.).

0100001090129
