DS-1604ZJ

DS-1604ZJ  Wall Mounting Bracket for Speed Dome    Feature   Wall mounting bracket with the junction box   Aluminum alloy material with surface spray treatment   Waterproof design   Junction box supports bottom outlet and back outlet   The hook for safety rope facilitates speed dome’s installation  Dimension  355.5 mm (14")  66.5 mm  (2.6")  170.7 mm (6.7")  141.5 mm (5.6")  75 mm (3.0")  255  .3  mm  (10  ")  227  mm  (8  .9  ")  160  mm  (6  .3  ")  4-Φ 9 mm (0.35")      Available Model  DS-1604ZJ  Parameter  Model    Parameters  DS-1604ZJ  Wall Mounting Bracket for Speed Dome  Appearance Hikvision White  Material Aluminum Alloy  Dimension 355.5 mm x 255.3 mm x 170.7 mm (14" x 10" x 6.7")  Weight 2150 g (4.7 lb.)  Note   The bracket should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.   The bracket’s maximum load capacity is 10 KG (22 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1604ZJ

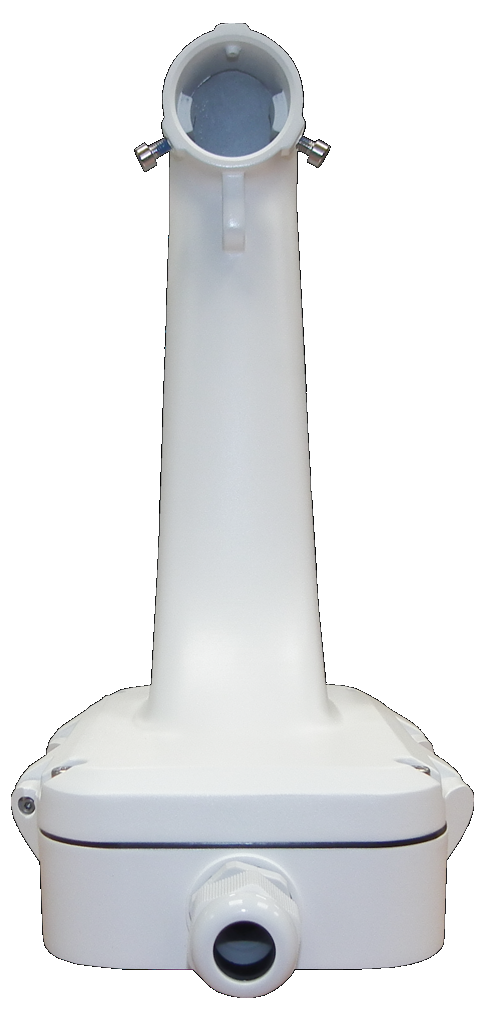

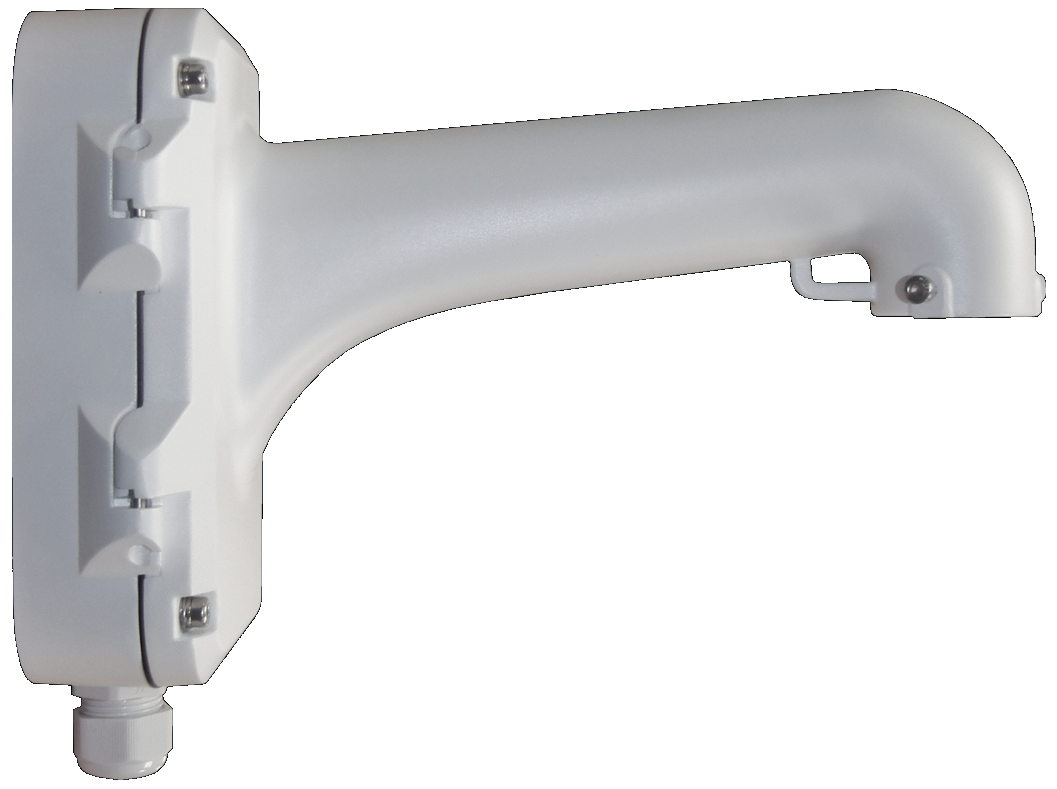

Wall Mounting Bracket for Speed Dome

Feature
 Wall mounting bracket with the junction box
 Aluminum alloy material with surface spray treatment
 Waterproof design

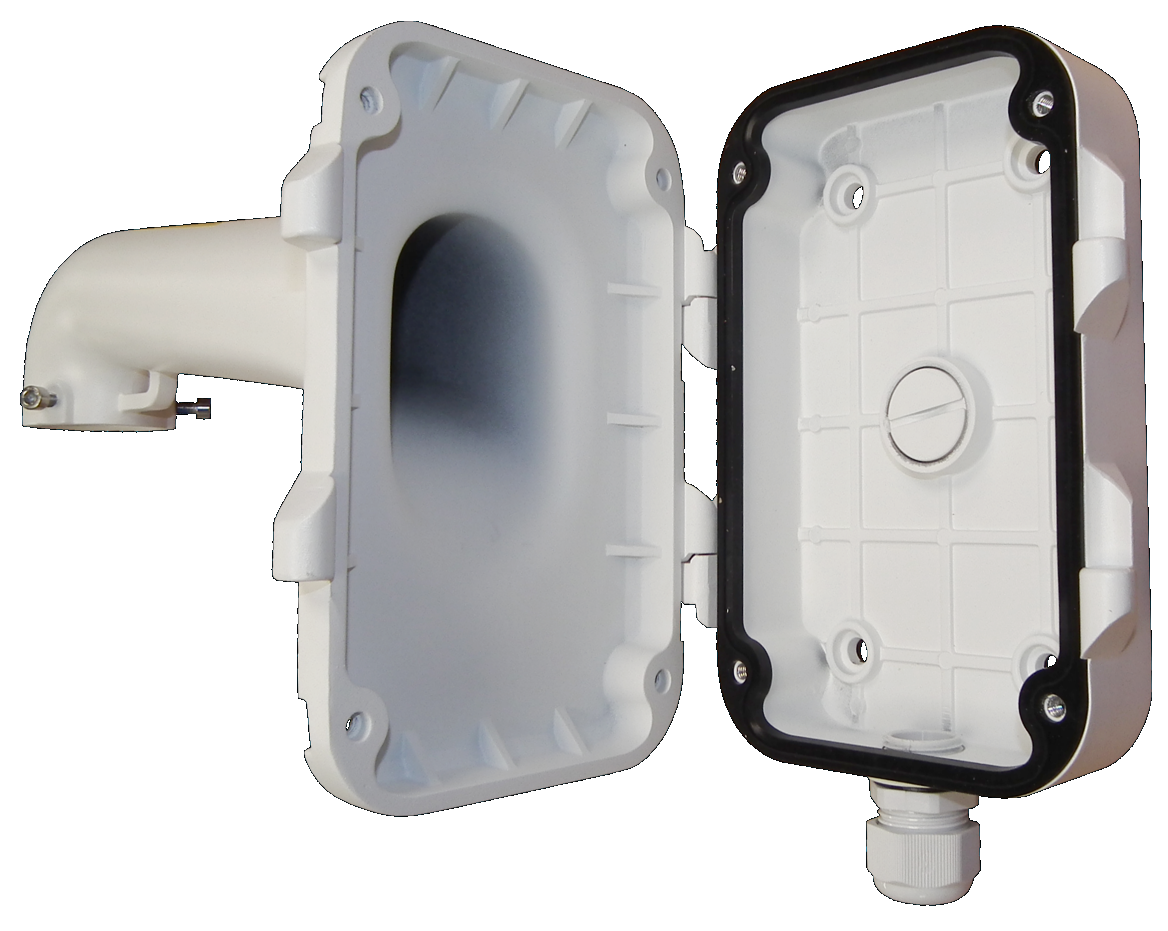

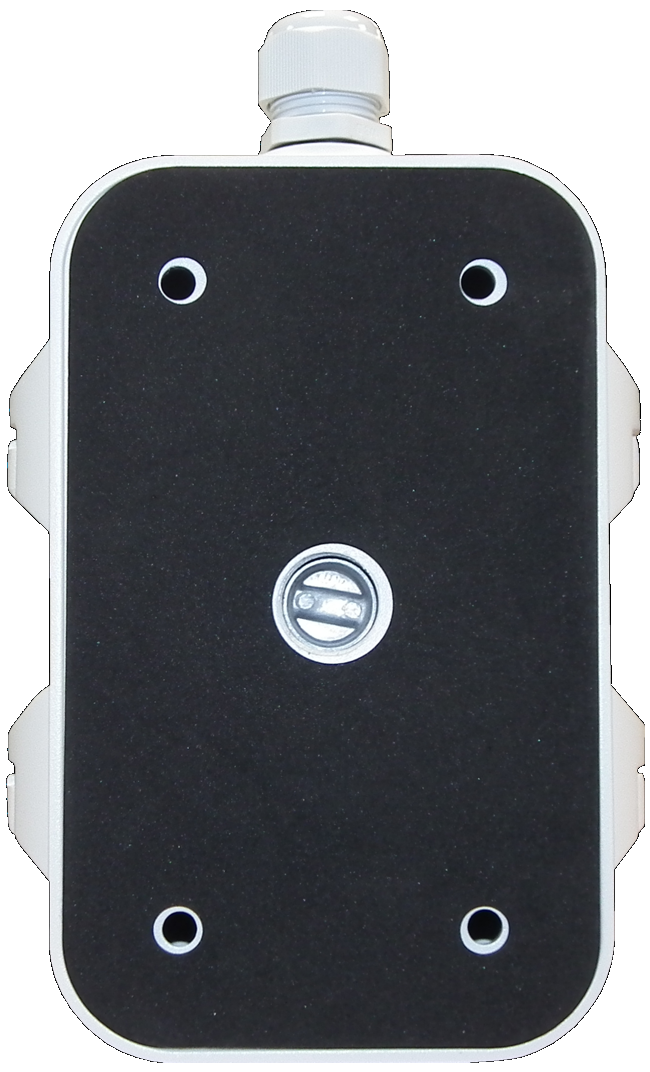

 Junction box supports bottom outlet and back outlet
 The hook for safety rope facilitates speed dome’s installation
Dimension
355.5 mm (14")
66.5 mm
(2.6")
170.7 mm (6.7")
141.5 mm (5.6")
75 mm (3.0")
255
.3
mm
(10
")
227
mm
(8
.9
")
160
mm
(6
.3
")
4-Φ 9 mm (0.35")


Available Model
DS-1604ZJ
Parameter
Model

Parameters
DS-1604ZJ
Wall Mounting Bracket for Speed Dome
Appearance Hikvision White
Material Aluminum Alloy
Dimension 355.5 mm x 255.3 mm x 170.7 mm (14" x 10" x 6.7")
Weight 2150 g (4.7 lb.)
Note
 The bracket should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the bracket.
 The bracket’s maximum load capacity is 10 KG (22 lb.).
