DS-1602ZJ

DS - 1602ZJ- P   Wall Mount for Speed Dome    Feature   Aluminum alloy with surface spray treatment   The hook for safety rope facilitates speed dome’ s installation   Waterproof design  Dimension    306.4 mm (12.06")  97  .  2  mm  (  3  .  83  ")    97.3 mm (3.83")  182  .  6  mm  (  7  .  19  ")  145  .  5  mm  (  5  .  73  ")  75 mm (2.95")  14  .  5  mm  (  0  .  57  ")  10  mm  (  0  .  39  ")  4-Ø 8.9 mm  (0.35")    Available Model  DS- 1 602 ZJ - P  Parameter  Model    Parameters    DS- 1 602 ZJ - P  Wall Mount for Speed Dome  Appearance Hikvision Gray  Material Aluminum Alloy  Dimension 306. 4 mm x 18 2 . 6 mm x 97.3 mm (...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS - 1602ZJ- P

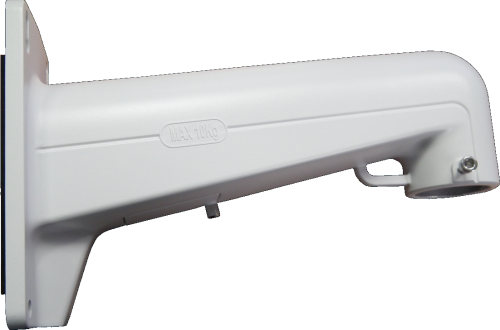

Wall Mount for Speed Dome

Feature
 Aluminum alloy with surface spray treatment
 The hook for safety rope facilitates speed dome’ s installation
 Waterproof design
Dimension

306.4 mm (12.06")
97
.
2
mm
(
3
.
83
")

97.3 mm (3.83")
182
.
6
mm
(
7
.
19
")
145
.
5
mm
(
5
.
73
")
75 mm (2.95")
14
.
5
mm
(
0
.
57
")
10
mm
(
0
.
39
")
4-Ø 8.9 mm
(0.35")

Available Model
DS- 1 602 ZJ - P
Parameter
Model

Parameters

DS- 1 602 ZJ - P
Wall Mount for Speed Dome
Appearance Hikvision Gray
Material Aluminum Alloy
Dimension 306. 4 mm x 18 2 . 6 mm x 97.3 mm ( 12 . 06" x 7. 19" x 3.83 " )
Weight 1050 g (2.31 lb.)
No te
 The mount should be installed on the flat surface .
 The waterproof rubber is necessary for the outdoor application .
 The wall must be capable of supporting at least 3 times as much as the total weight of the speed dome and the mount .
 The mount’s maximum load capacity is 10 Kg (22 lb.).
