DS-1602ZJ-BOX-CORNER

DS-1602ZJ-BOX-CORNER  Long Arm Wall Corner Mount Bracket  Features:   Aluminum alloy & steel material with surface spray  treatment   Design with junction box   Design of safety rope for more convenient  installation  Dimension:      Order model:  DS-1602ZJ-BOX-CORNER  Parameters:  Model  Parameter  DS-1602ZJ-BOX-CORNER  Wall Mount Bracket  Color Hikvision white  Feature  Suitable for speed dome wall corner  mounting  Material Aluminum alloy & Steel  Dimension 255.5x314x546.4mm  Weight 8396g  Notice:   The bracket should be installed on the flat surface of a  wall   The wall must be capable of supporting more than 3  times the total capacity of the camera and the bracket   Load capacity of bracket is 10KG    Note: The actual bracket may vary from the picture above.  6-n10  149  546.4  255.5  314...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1602ZJ-BOX-CORNER

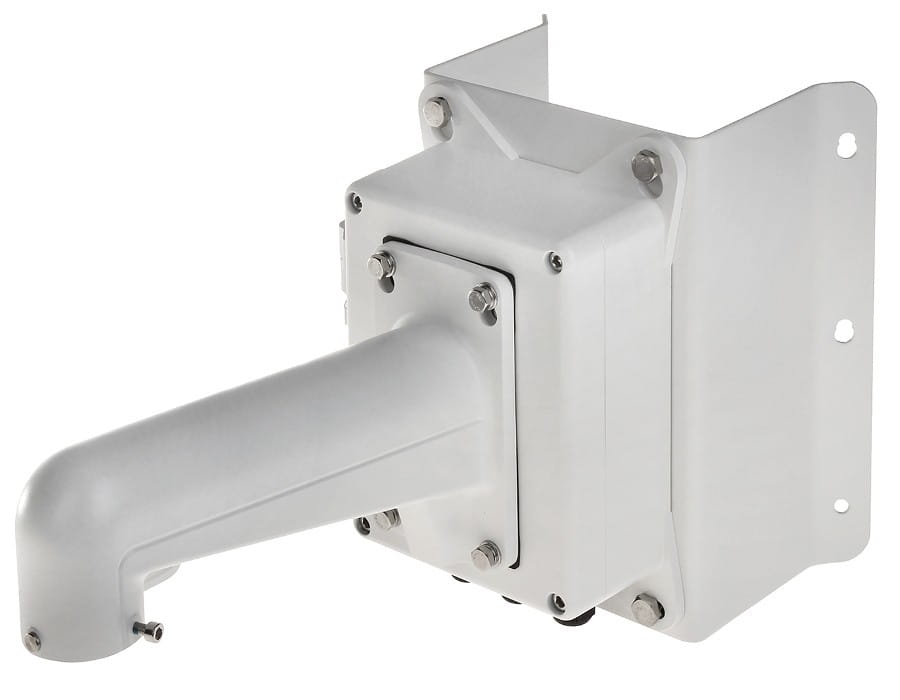

Long Arm Wall Corner Mount Bracket
Features:
 Aluminum alloy & steel material with surface spray
treatment
 Design with junction box
 Design of safety rope for more convenient
installation
Dimension:


Order model:
DS-1602ZJ-BOX-CORNER
Parameters:
Model
Parameter
DS-1602ZJ-BOX-CORNER
Wall Mount Bracket
Color Hikvision white
Feature
Suitable for speed dome wall corner
mounting
Material Aluminum alloy & Steel
Dimension 255.5x314x546.4mm
Weight 8396g
Notice:
 The bracket should be installed on the flat surface of a
wall
 The wall must be capable of supporting more than 3
times the total capacity of the camera and the bracket
 Load capacity of bracket is 10KG

Note: The actual bracket may vary from the picture above.
6-n10
149
546.4
255.5
314
