DS-1602ZJ-AKS

DS -1602ZJ -AKS  Wall Mount      Features   Alloy with surface spray treatment   Applied to both indoor conditions, and outdoor conditions   With cable outlet(s)  Dimension 10  mm  (  0  .  39  ''  )  14  .  5  mm  (  0  .  57  ''  )  75 mm  (2.95'')  97.3 mm (3.83'')  145  .  5  mm  (  5  .  73  ''  )  182  .  6  mm  (  7  .  19  ''  )  306.4 mm (12.06'')  97  .  2  mm  (  3  .  83  ''  )      Available Model  DS-1602ZJ-AKS  Parameter  Model    Parameters    DS -1602ZJ-AKS  Wall Mount  Appearance Hikvision White  Material Alloy  Dimension 97.3 mm x 182.6 mm x 306.4 mm (3.83" x 7.19" x 12.06")  Weight 960 g (2.12 lb.)  Notes   The mount should be installed on the flat surface.   Waterproof rubber is necessary for the outdoor application.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the  mount.   The maximum load capacity of the mount is 10 kg (22.05 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS -1602ZJ -AKS

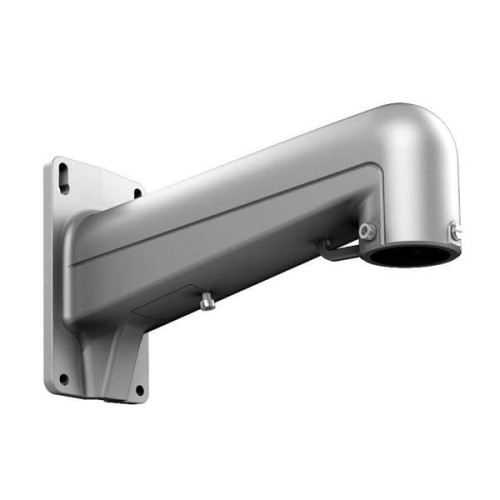

Wall Mount


Features
 Alloy with surface spray treatment
 Applied to both indoor conditions, and outdoor conditions
 With cable outlet(s)
Dimension 10
mm
(
0
.
39
''
)
14
.
5
mm
(
0
.
57
''
)
75 mm
(2.95'')
97.3 mm (3.83'')
145
.
5
mm
(
5
.
73
''
)
182
.
6
mm
(
7
.
19
''
)
306.4 mm (12.06'')
97
.
2
mm
(
3
.
83
''
)


Available Model
DS-1602ZJ-AKS
Parameter
Model

Parameters

DS -1602ZJ-AKS
Wall Mount
Appearance Hikvision White
Material Alloy
Dimension 97.3 mm x 182.6 mm x 306.4 mm (3.83" x 7.19" x 12.06")
Weight 960 g (2.12 lb.)
Notes
 The mount should be installed on the flat surface.
 Waterproof rubber is necessary for the outdoor application.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
 The maximum load capacity of the mount is 10 kg (22.05 lb.).
