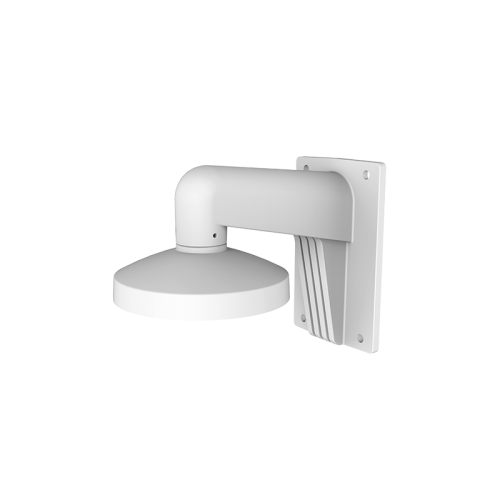

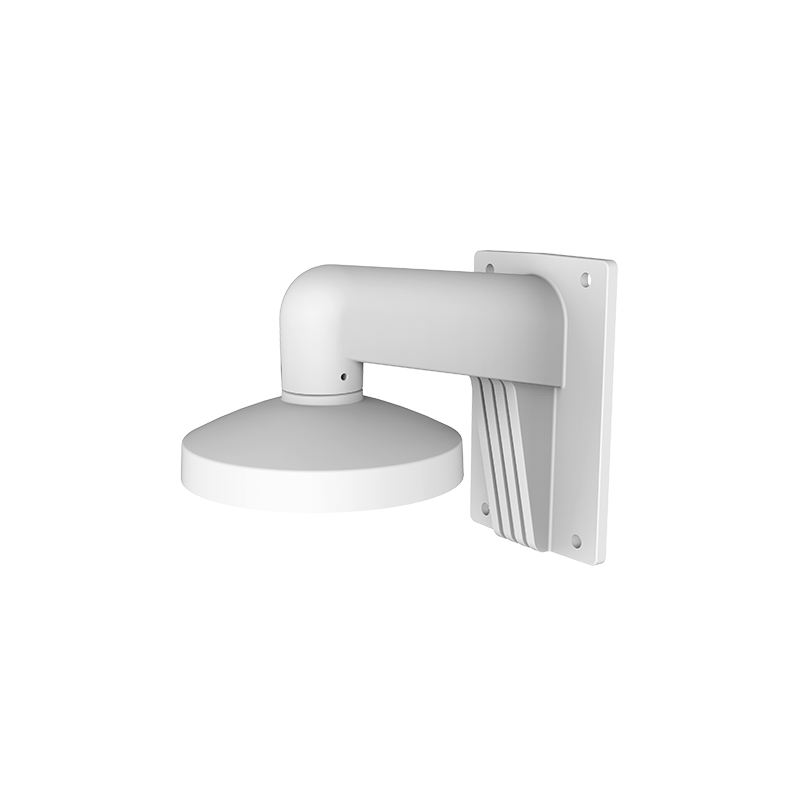

DS-1473ZJ-155-Y

DS-1473ZJ-155-Y  Wall Mount    Feature   Aluminum alloy with surface spray treatment   The cap facilitates the installation   Adopts waterproof design  Dimension  83.5 mm (3.29'')  46 mm  (1.81'')  83  .  5  mm  (  3  .  29  ''  )  6-M4  depth 8 mm (0.31'')  4-Φ 8.5 mm  (0.33'')  158  mm  (  6  .  22  ''  )  183  .  5  mm  (  7  .  22  ''  )  85.7 mm (3.37'')  120 mm (4.72'')  240 mm (9.45'')      Available Model  DS-1473ZJ-155-Y  Parameter  Model    Parameters  DS-1473ZJ-155-Y  Wall Mount  Appearance Hikvision White  Material ADC12  Dimension Φ 155 mm x 183.5 mm x 240 mm (Φ 6.10" x 7.22" x 9.45")  Weight Approx. 650 g (1.4 lb.)  Note   The mount should be installed on a flat surface.   The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.   The maximum load capacity of the mount is 3 kg (6.6 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1473ZJ-155-Y
Wall Mount

Feature
 Aluminum alloy with surface spray treatment
 The cap facilitates the installation
 Adopts waterproof design
Dimension
83.5 mm (3.29'')
46 mm
(1.81'')
83
.
5
mm
(
3
.
29
''
)
6-M4
depth 8 mm (0.31'')
4-Φ 8.5 mm
(0.33'')
158
mm
(
6
.
22
''
)
183
.
5
mm
(
7
.
22
''
)
85.7 mm (3.37'')
120 mm (4.72'')
240 mm (9.45'')


Available Model
DS-1473ZJ-155-Y
Parameter
Model

Parameters
DS-1473ZJ-155-Y
Wall Mount
Appearance Hikvision White
Material ADC12
Dimension Φ 155 mm x 183.5 mm x 240 mm (Φ 6.10" x 7.22" x 9.45")
Weight Approx. 650 g (1.4 lb.)
Note
 The mount should be installed on a flat surface.
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, and the mount.
 The maximum load capacity of the mount is 3 kg (6.6 lb.).
