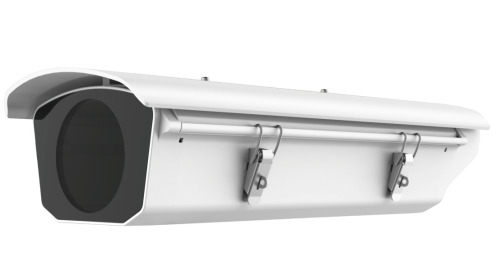

DS -1331HZ - B
Outdoor Housing


Feature
 New side -cover design for convenient installation and maintenance
 Stainless steel dual -hasp design, protection level up to IP66
 Polycarbonate glass with tempered glass screen protector for lens protection
 Built -in fan for keeping the camera working stably
 Polycarbonate window for IK10 protection
Dimension and Wiring 130 mm (5.12")
51 mm (2.01")
2-1/4-UNC
Depth: 7
mm (0.28")
4-M6
Depth: 7 mm
(0.28")
50
mm
(1.97
")
169
.2
mm
(6.66
")
465.4 mm (18.32")
435.5 mm (17.15")
63.5 mm
(2.50")
160
mm
(6.3")
35
.5
mm
(1.40
")
110
mm
(4.33
")
49
.5
mm
(1.95
")
43
.3
mm
(1.70
")


RS485
Output
Yellow R484 -
Orange R485 +
DC12V
Output
Black DC12V -
Red DC12V +
Power Input





Available Model
DS -1331HZ -B
Parameter
Model
Parameters
DS -1331HZ -B
Outdoor Housing
Product Feature Built -in fan for use in high temperature environments
Working Temperature -20° C to 60° C ( -4° F to 140° F)
Temperature Control No heater. Fan normally open.
Power Supply Not included. 12 VDC, 2A is recommended.
Power Consumption Fan: 4 W
Ingress Protection IP66
Material Main body: Aluminum alloy;
Window: Polycarbonate glass and tempered glass screen protector
Dimension 465.4 mm x 169.2 mm x 160 mm (18.3 2" x 6.66" x 6.30")
Weight Approx. 20 00 g (4.4 1 lb.)

Accessory



DS -2202ZJ
Wall Mount
DS -1674ZJ
Junction Box
(used with DS -2202ZJ Wall
Mount)
DS -1293ZJ
Wall Mount
DS -1269ZJ
Pendant Mount


DS -1214ZJ
Horizontal Pole Mount
DS -1214ZJ -T
Horizontal Pole Mount
DS -1232ZJ
Cardan Joint
DS -1232ZJ -T
Cardan Joint


DS -1233ZJ
Column Mount




No te
 The outdoor housing should be installed on a flat surface.
 Waterproof rubber is necessary for the outdoor application .
 The wall should be capable of supporting at least 3 times as much as the total weight of the camera, the outdoor
housing and other accessories.
