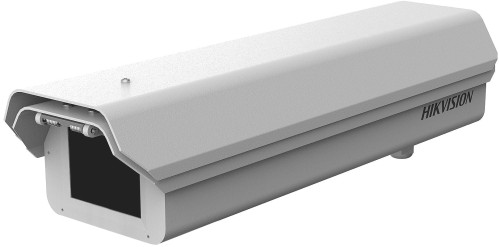

DS-1322HZ-H

DS-1322HZ-H  Outdoor Housing with heater  罩    Features:   All-weather integrated design, convenient installation  and maintenance.   Fully sealed design, high temperature resistance, Anti  strong wind; storm and dust.   Configure different types of camera lens according to the  respective requirements.  Notice:   Read the instructions carefully and observe all warnings  before installing this equipment.   Turn off the power before wiping this equipment, do not  use liquid or spray cleaning agent.   Do not install on unstable bracket.   Protect the power line, especially the flexible line of the  plug and camera.  Order Model:  DS-1322HZ-H  Dimension:      Parameter:  Model    Parameters  DS-1322HZ-H  Outdoor housing  Produce features Contain heater, fan, sun shading cover  Working temperature -40℃~+60 ℃  Window area(mm) 77x58  Automatic  temperature control  range  Heater on: 5°±5°; Heater off: 15°±5°(Fan  operating)  Fan on: 45°±5°; Fan off: 35°±5°  Power AC 24V  Power consumption 55W  Protection level IP66  Material  Main: aluminum alloy  Window: glass  Dimension(mm) 143x114.5x500  Mat...

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

DS-1322HZ-H
Outdoor Housing with heater
罩

Features:
 All-weather integrated design, convenient installation
and maintenance.
 Fully sealed design, high temperature resistance, Anti
strong wind; storm and dust.
 Configure different types of camera lens according to the
respective requirements.
Notice:
 Read the instructions carefully and observe all warnings
before installing this equipment.
 Turn off the power before wiping this equipment, do not
use liquid or spray cleaning agent.
 Do not install on unstable bracket.
 Protect the power line, especially the flexible line of the
plug and camera.
Order Model:
DS-1322HZ-H
Dimension:


Parameter:
Model

Parameters
DS-1322HZ-H
Outdoor housing
Produce features Contain heater, fan, sun shading cover
Working temperature -40℃~+60 ℃
Window area(mm) 77x58
Automatic
temperature control
range
Heater on: 5°±5°; Heater off: 15°±5°(Fan
operating)
Fan on: 45°±5°; Fan off: 35°±5°
Power AC 24V
Power consumption 55W
Protection level IP66
Material
Main: aluminum alloy
Window: glass
Dimension(mm) 143x114.5x500
Matching power supply AC24V 3A power pack







114.5
450
500
58
77
143
50200
Unit:mm
2-M6
