DS-1280ZJ-S(Black)

DS-1280ZJ-S(Black)  Junction Box      Features   Aluminum alloy with surface spray treatment   Side outlet, and bottom outlet   Interchangeable bottom waterproof cover, and side gland nut   Applies to both indoor conditions, and outdoor conditions  Dimension  53  .4  mm  (2  .1  " )  Ø 88.5 mm (3.48" )  4-Ø 4.5 mm (0.17" )  14-M4 Depth:  9 mm (0.35" )  83  .5  mm  (3  .29  " )  164  .8  mm  (6  .49  " )  Ø 137 mm  (5.39" )  Ø 88.5 mm (3.48" )  Ø 85 mm (3.46" )  Ø 55 mm (2.17" )  Ø 70 mm (2.76" )      Available Model  DS-1280ZJ-S(Black)  Parameter  Model    Parameters  DS-1280ZJ-S(Black)  Junction Box  Appearance Black  Material Aluminum Alloy  Dimension Ø 137 mm x 164.8 mm x 53.4 mm (Ø 5.39" x 6.49" x 2.1")  Weight 621 g (1.37 lb.)  Notes   The junction box should be installed on the flat surface.   Waterproof rubber is necessary for outdoor application.   The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the  mount.   The maximum load capacity of the junction box is 4.5 kg (9.9 lb.)....

Warranty: 36 mon.

Datasheet

Text contents of PDF datasheet:

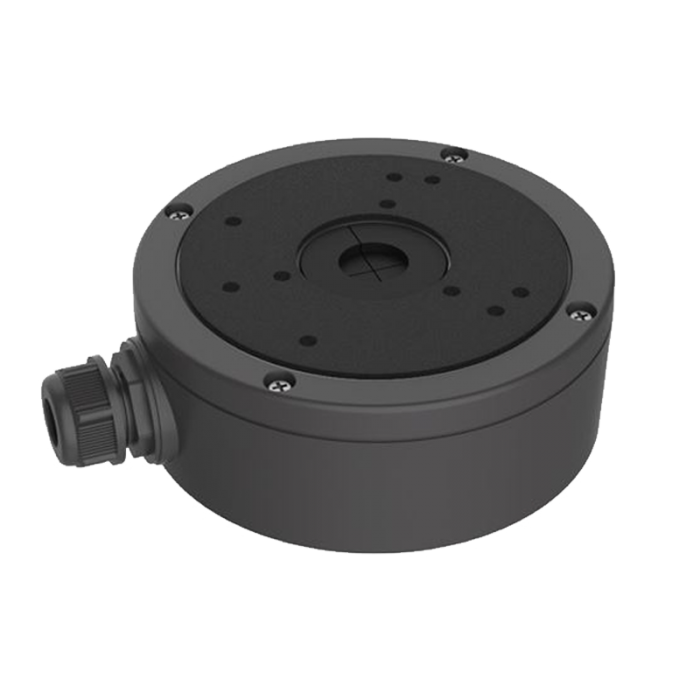

DS-1280ZJ-S(Black)
Junction Box


Features
 Aluminum alloy with surface spray treatment
 Side outlet, and bottom outlet
 Interchangeable bottom waterproof cover, and side gland nut
 Applies to both indoor conditions, and outdoor conditions
Dimension
53
.4
mm
(2
.1
" )
Ø 88.5 mm (3.48" )
4-Ø 4.5 mm (0.17" )
14-M4 Depth:
9 mm (0.35" )
83
.5
mm
(3
.29
" )
164
.8
mm
(6
.49
" )
Ø 137 mm
(5.39" )
Ø 88.5 mm (3.48" )
Ø 85 mm (3.46" )
Ø 55 mm (2.17" )
Ø 70 mm (2.76" )


Available Model
DS-1280ZJ-S(Black)
Parameter
Model

Parameters
DS-1280ZJ-S(Black)
Junction Box
Appearance Black
Material Aluminum Alloy
Dimension Ø 137 mm x 164.8 mm x 53.4 mm (Ø 5.39" x 6.49" x 2.1")
Weight 621 g (1.37 lb.)
Notes
 The junction box should be installed on the flat surface.
 Waterproof rubber is necessary for outdoor application.
 The wall must be capable of supporting at least 3 times as much as the total weight of the camera, and the
mount.
 The maximum load capacity of the junction box is 4.5 kg (9.9 lb.).
