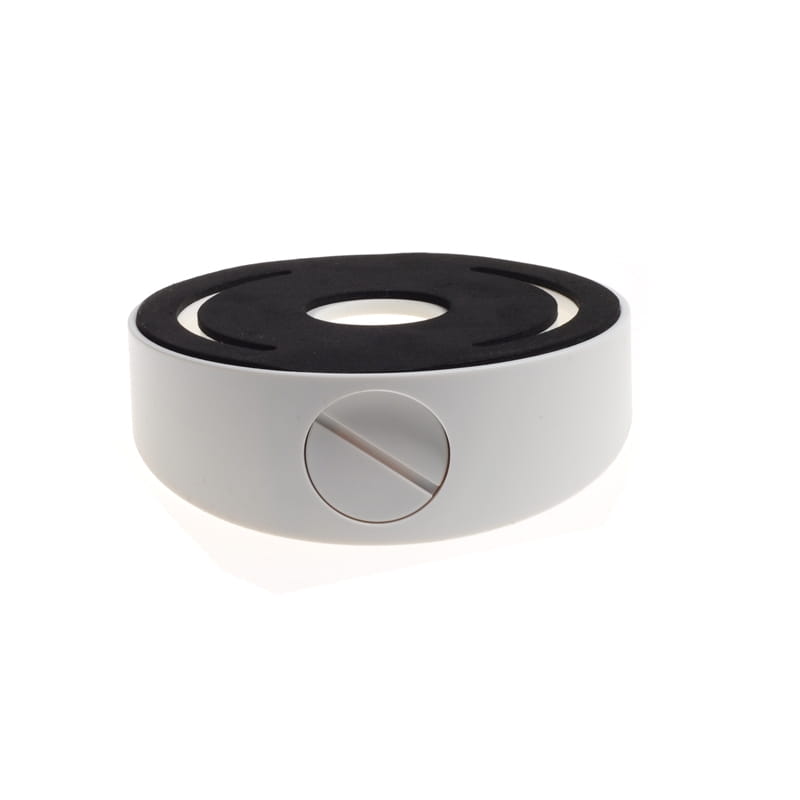

DS-1280ZJ-PT3
Description
DS-1280ZJ-PT3 Junction Box for Dome Camera Features Aluminum alloy material with surface spray treatment The camera can be fixed on the bracket directly Design of cap is for convenient wiring Dimension Φ4.5 4 0. 5 G3/4 Φ120 4-Φ4.5 (Evenly Distributed) 4 5° 4-Φ8 (Evenly Distributed) Φ83.5 Available Model DS-1280ZJ-PT3 Parameters Model Parameters DS-1280ZJ-PT3 Junction Box for Dome Camera Appearance Hikvision White Material Plastics Dimension Φ120x40.5mm Weight 105g Notes The bracket should be installed on flat wall The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. The maximum load capacity of the bracket is 2kg...
Warranty: 36 mon.
Datasheet
Text contents of PDF datasheet:
DS-1280ZJ-PT3
Junction Box for Dome Camera
Features
Aluminum alloy material with surface spray treatment
The camera can be fixed on the bracket directly
Design of cap is for convenient wiring
Dimension
Φ4.5
4
0.
5
G3/4
Φ120
4-Φ4.5 (Evenly Distributed)
4
5°
4-Φ8 (Evenly Distributed)
Φ83.5
Available Model
DS-1280ZJ-PT3
Parameters
Model
Parameters
DS-1280ZJ-PT3
Junction Box for Dome Camera
Appearance Hikvision White
Material Plastics
Dimension Φ120x40.5mm
Weight 105g
Notes
The bracket should be installed on flat wall
The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount.
The maximum load capacity of the bracket is 2kg
